This is the Xnova "Tareq Edition" 3215-945KV Brushless Motor. The Xnova Tareq Special Edition was carefully optimized and tested under the watchful eye of Tareq himself to deliver the power he needs for his insane style of extreme 3D flying. All Xnova motors are 100% hand-wound and each motor runs through a complete quality control test before shipping.

Features

Designed for extreme 3D flying
Developed with Tareq Alsaadi for SAB-Goblin 380 helicopter
High quality Neo Magnets, heat resistant up to 150 degree C
Specialized wires, heat resistance up to 250 degree C
Precise balanced
High performance stator metal sheet
High quality NMB bearings
Marked leading high efficiency up to 90%
Cooler running
Superb quality and machining of CNC parts
Hand wound single strand wire

Specifications

Slots & Poles	12n10p
Winding T	YY
rpm/V	945
Volt (V)	10 / 22.2
Io(A)	1.4 / 2.4
Rm (mohm)	24 / 24
Weight (without connector) (g)	166
Body Length (no shaft) mm	40
Diameter (mm)	40.5
Shaft Length (mm) (Details pictures)	All in one
Shaft Dia. (mm)	5
Mounting Holes CTC Distance (mm)	25
Mounting Screw	M3x0.5
Max Eff. Curr.	24.15 / 47.12
Max Eff.	88.41 / 89.81
Kt (Nm/A	0.0101
Km (Nm/sqrt(w))	0.0652
Max Continuous Power(Watts)	1350
Peak Continuous Power(Watts) (2 sec)	1800
Max Continuous Current(Amps)	60

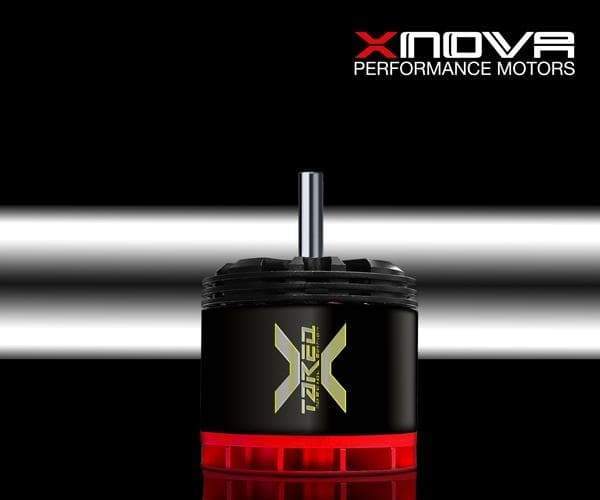

Xnova TAREQ Edition 3215-945KV V2 Shaft A

380-420 Electronics

Xnova Lightning 3225-1100KV Shaft A

Xnova TAREQ Edition 3215-945KV V2 Shaft A

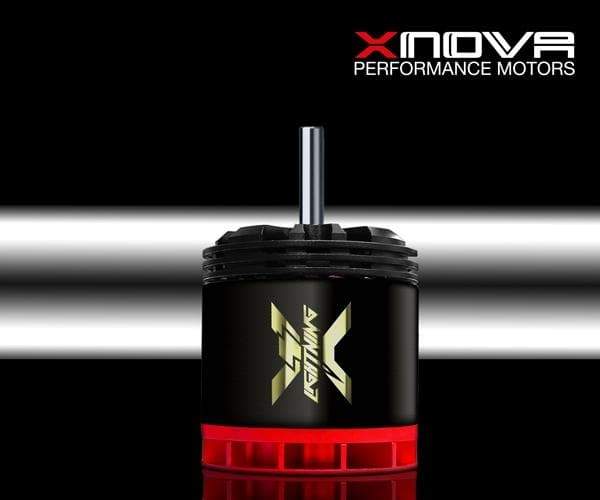

Xnova Lightning 3220-950KV Shaft A

Egodrift Tengu 3220HS / 960kV Motor

Egodrift Tengu 3220HS / 900kV Motor

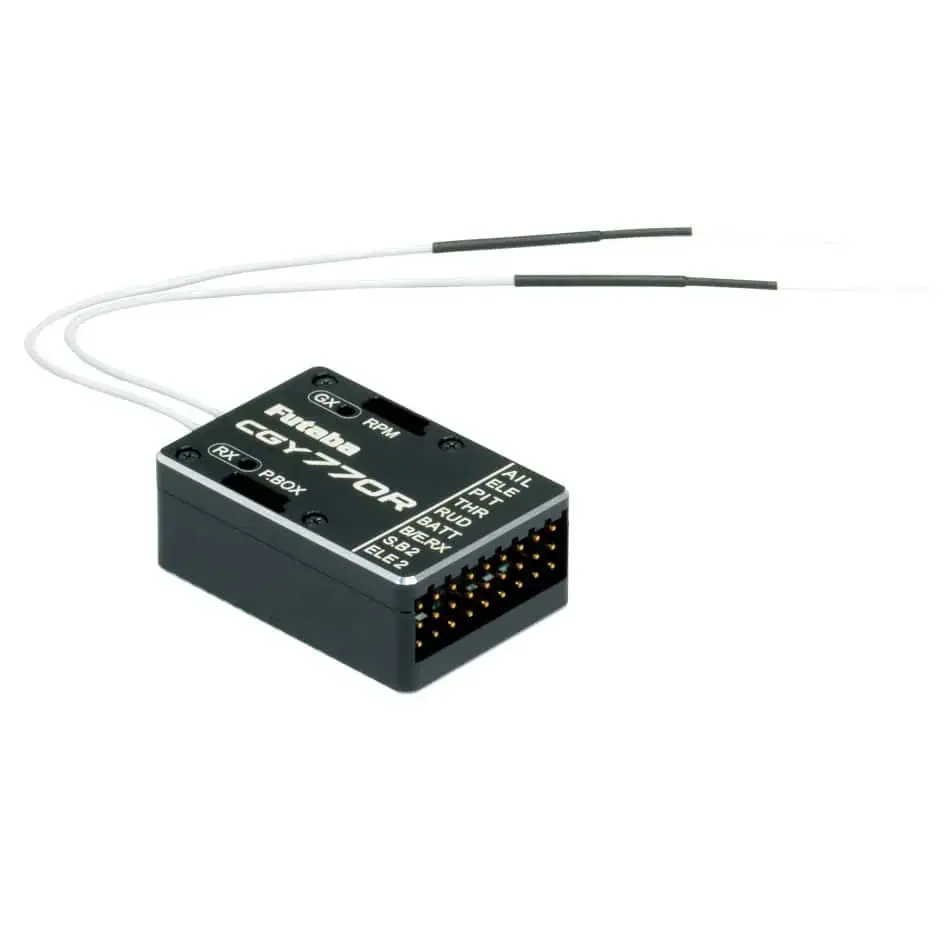

Futaba CGY770R Helicopter 3D/F3C Flight Control Gyro

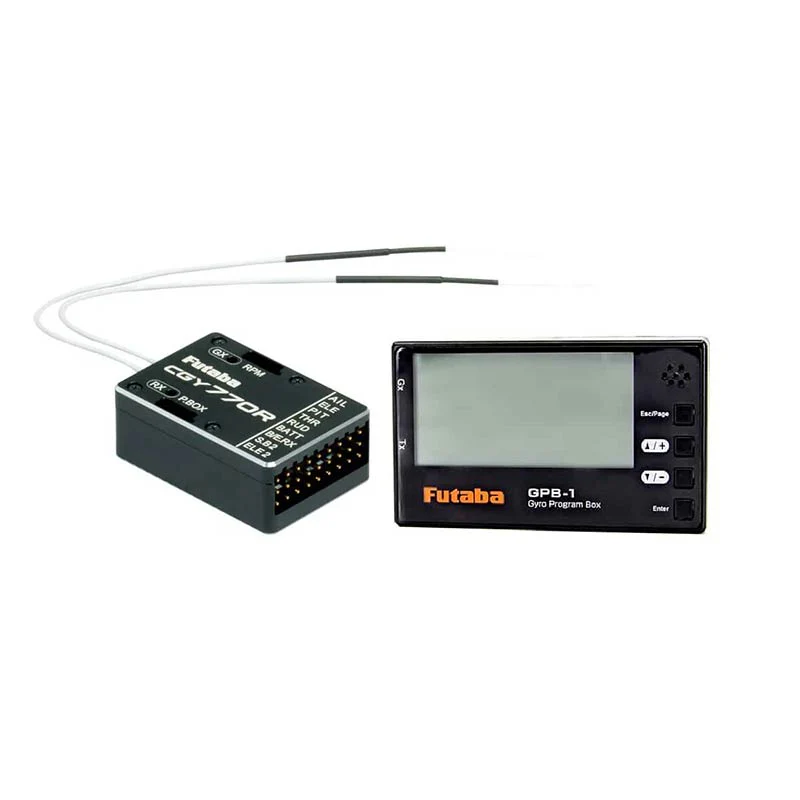

Futaba CGY770R Helicopter 3D/F3C Flight Control Gyro w/ GPB-1 Programming Box

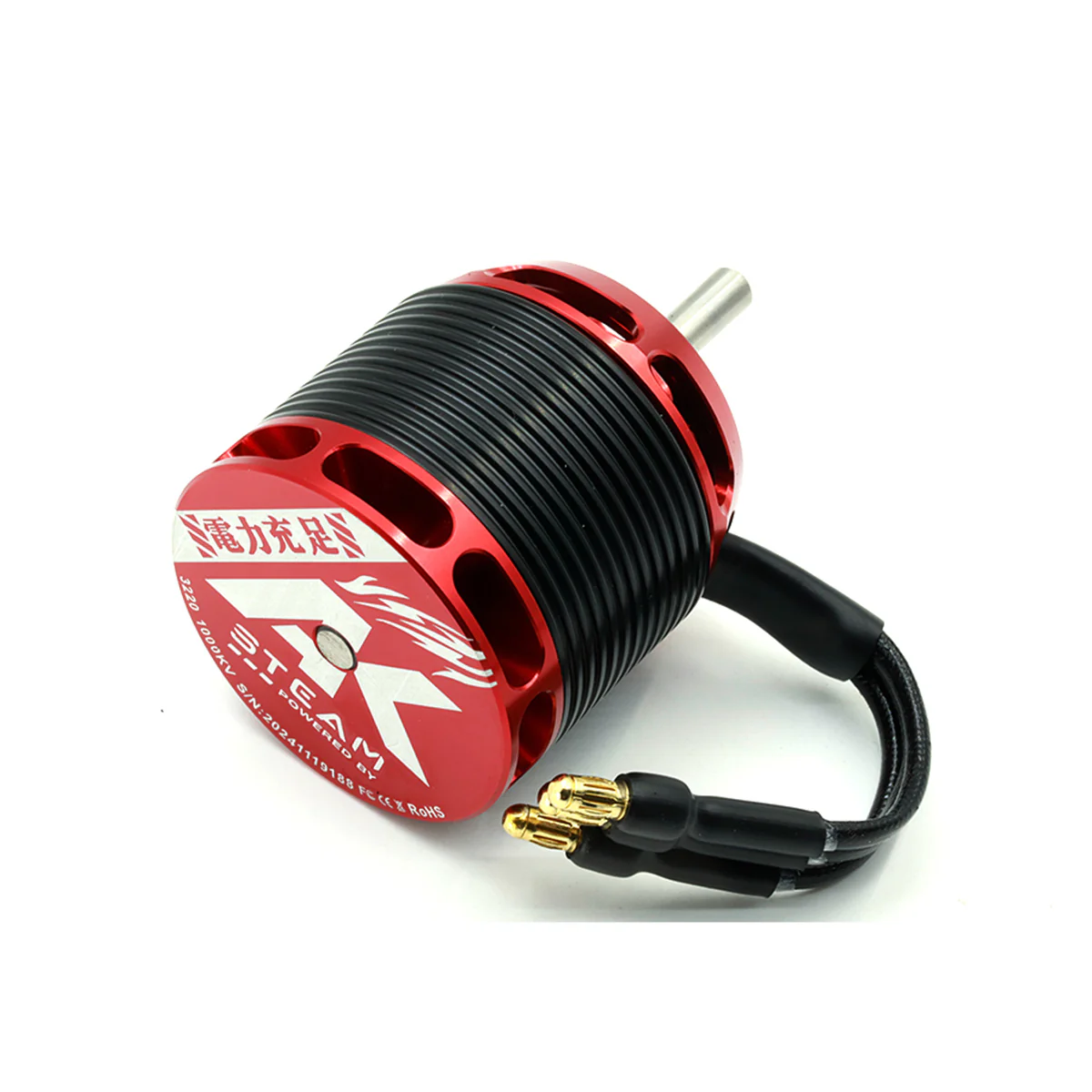

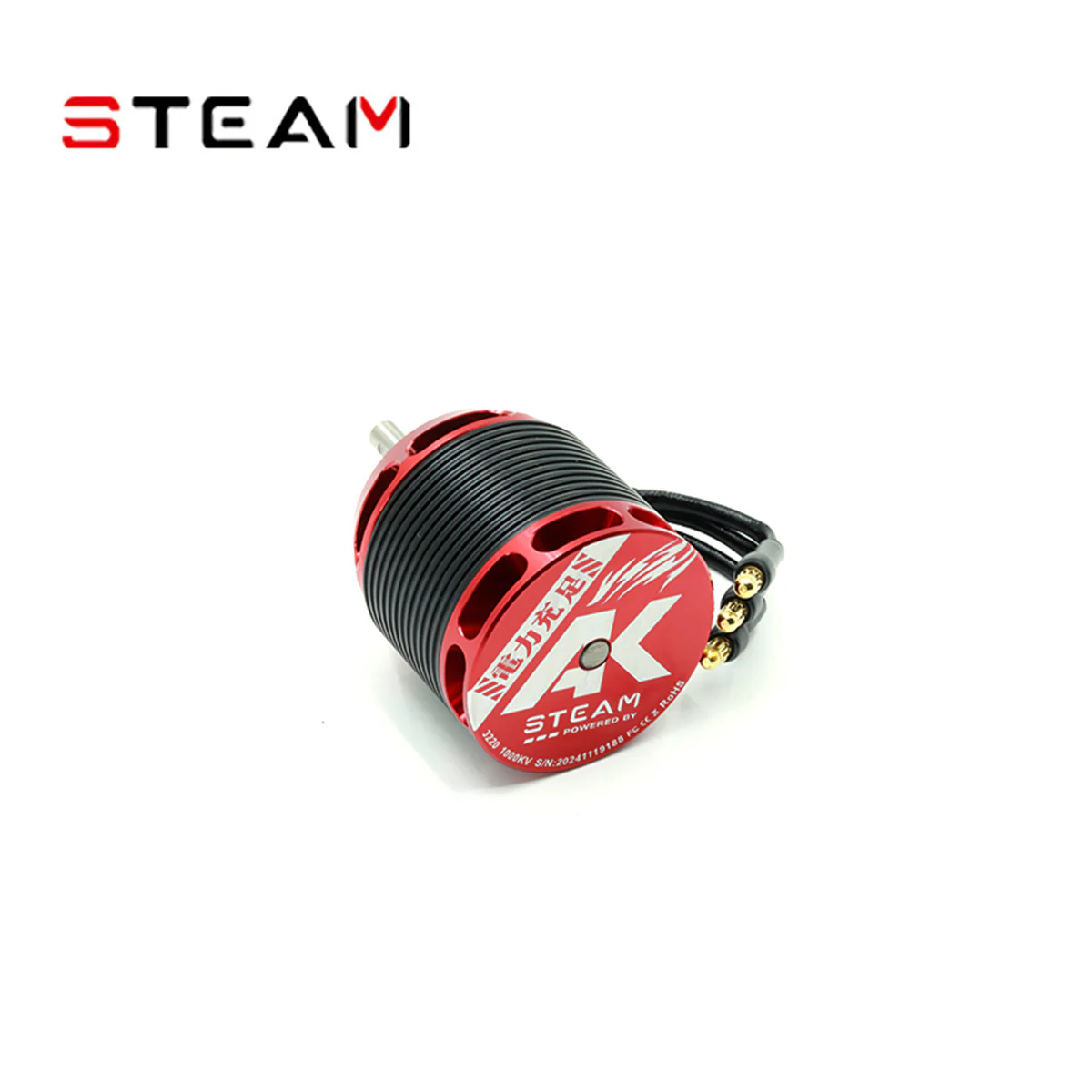

Steam 3220-1000kv Brushless Motor - Red

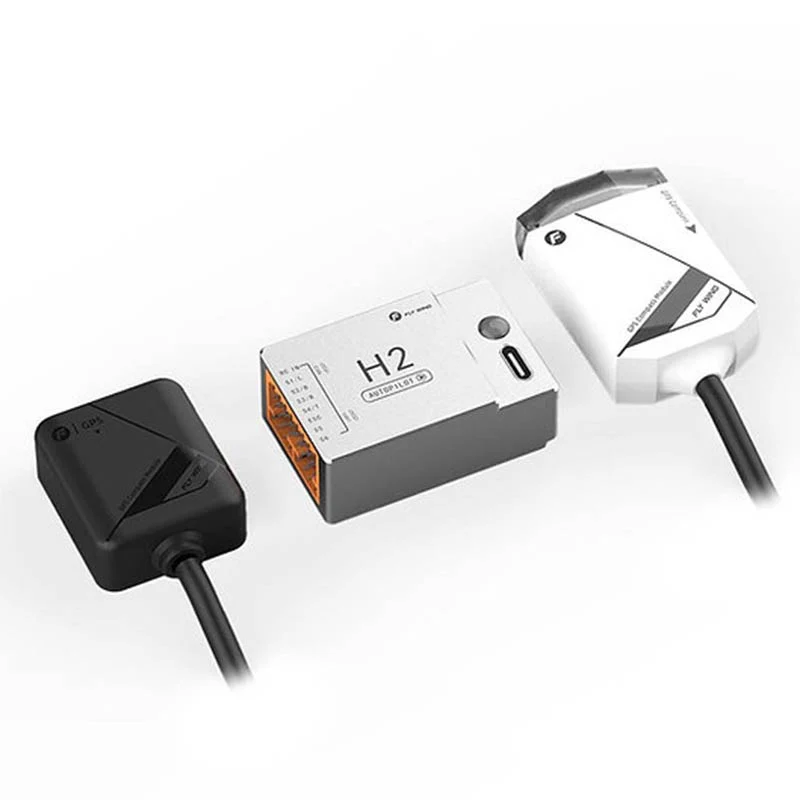

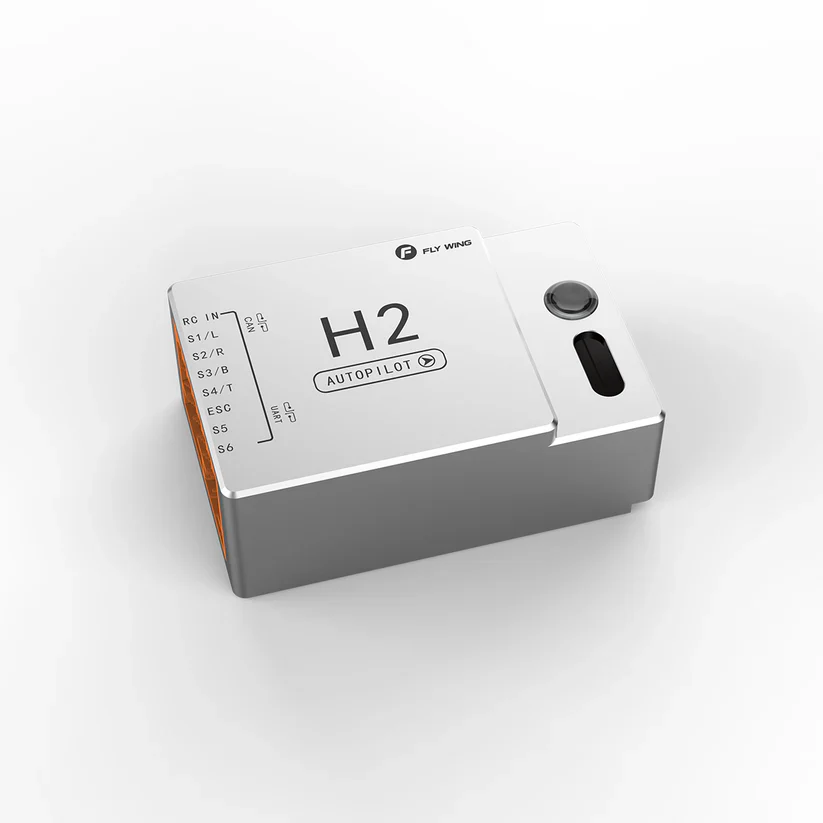

Flywing H2 Flight Controller Unit w/ M10 U-blox GPS

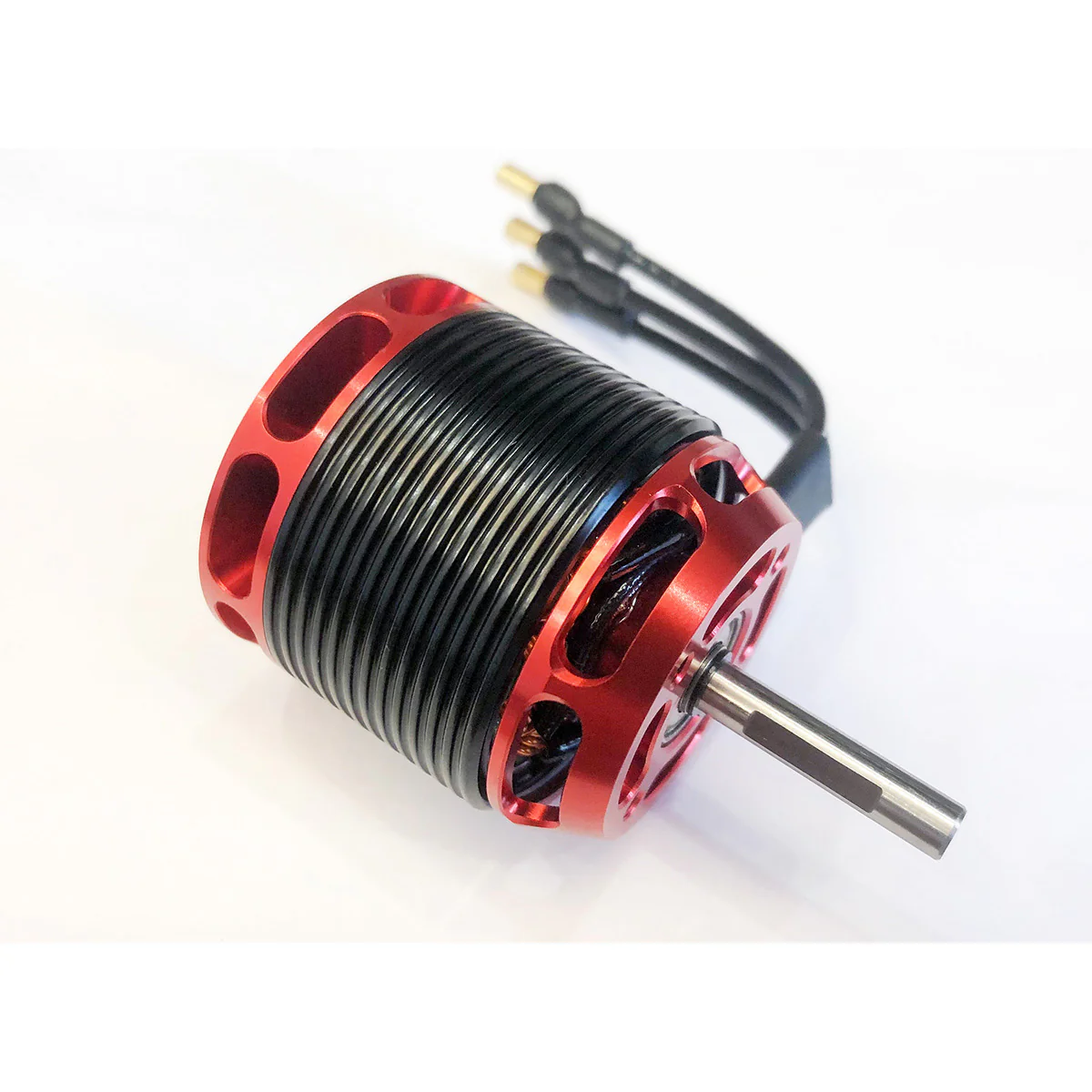

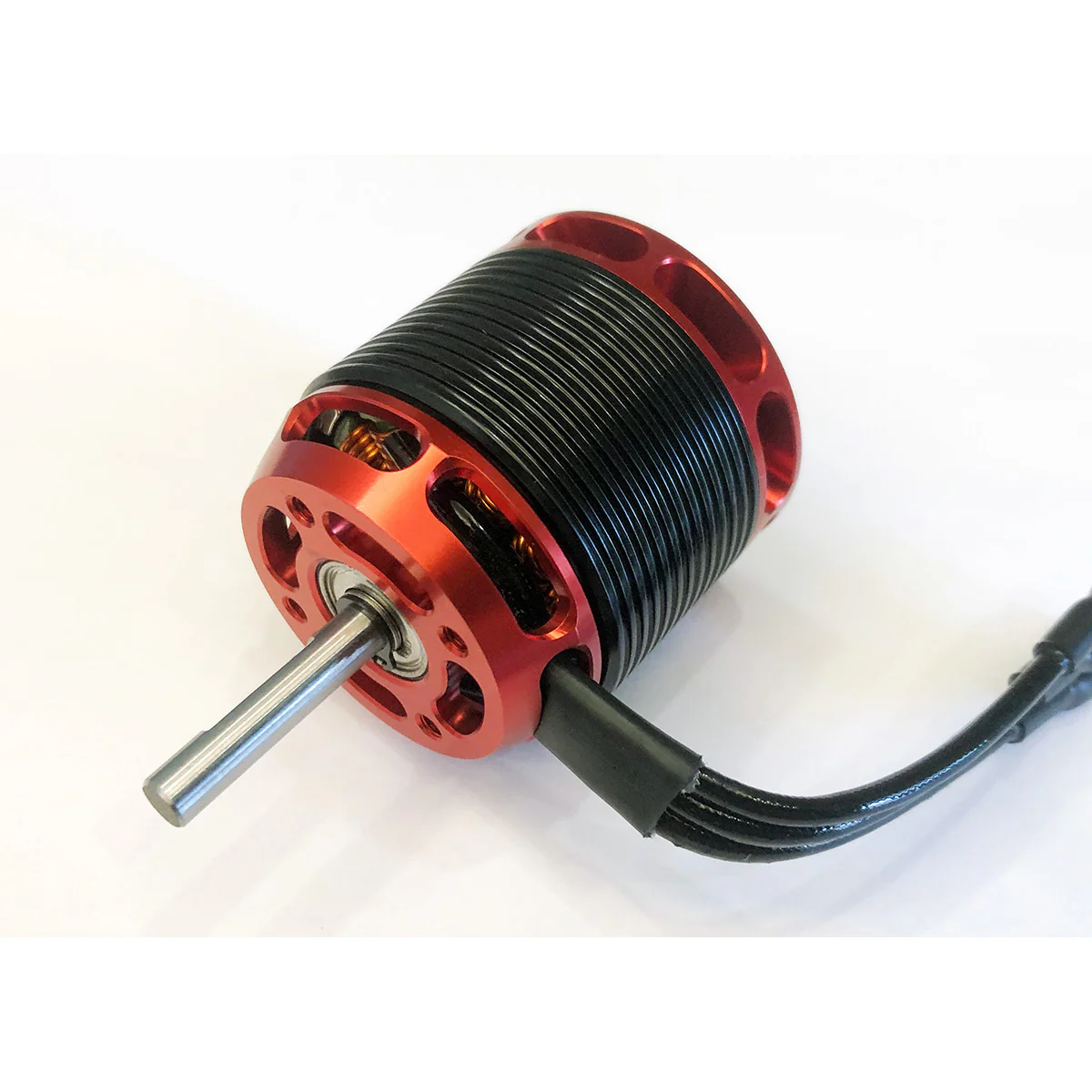

Combove Type 3220-960KV Brushless Motor

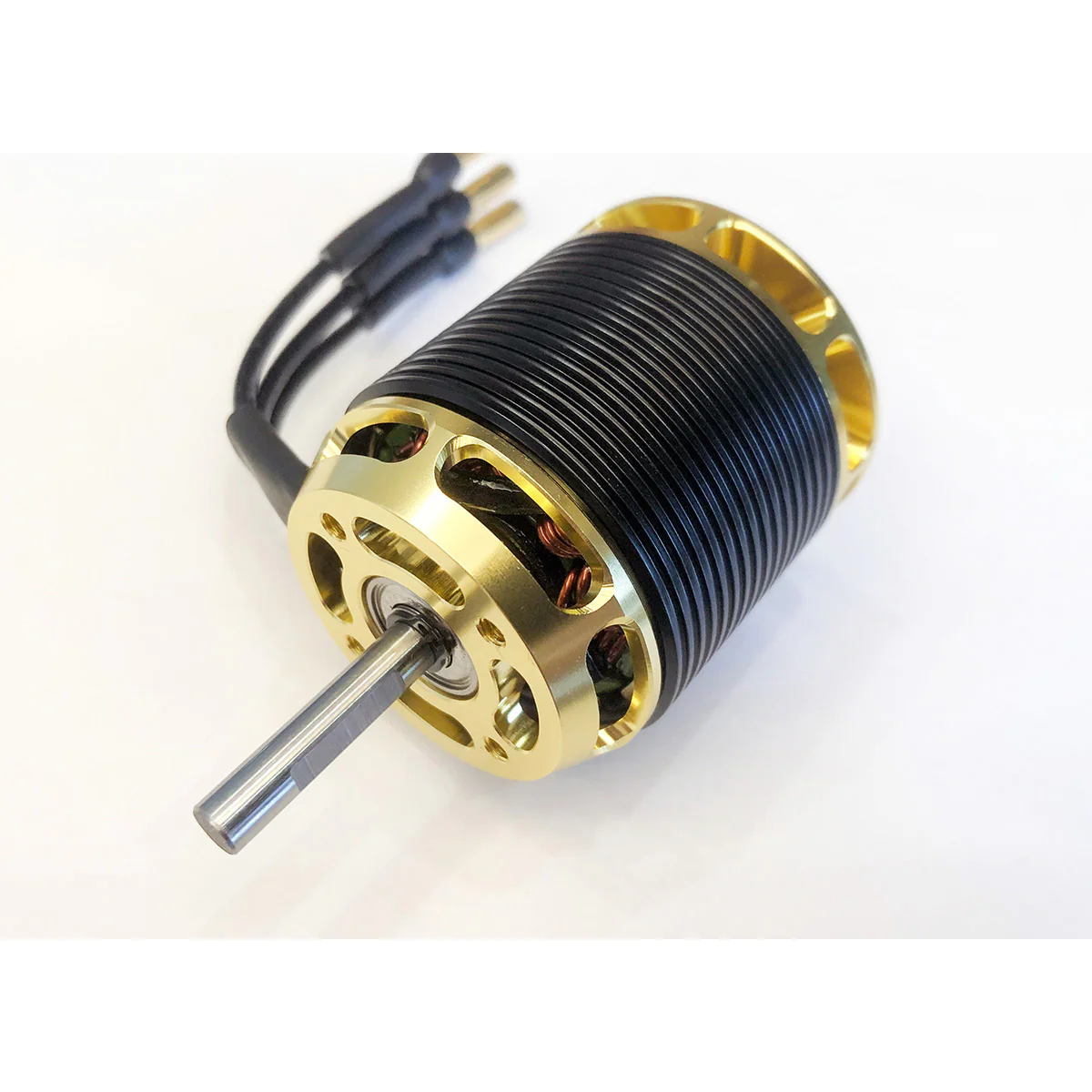

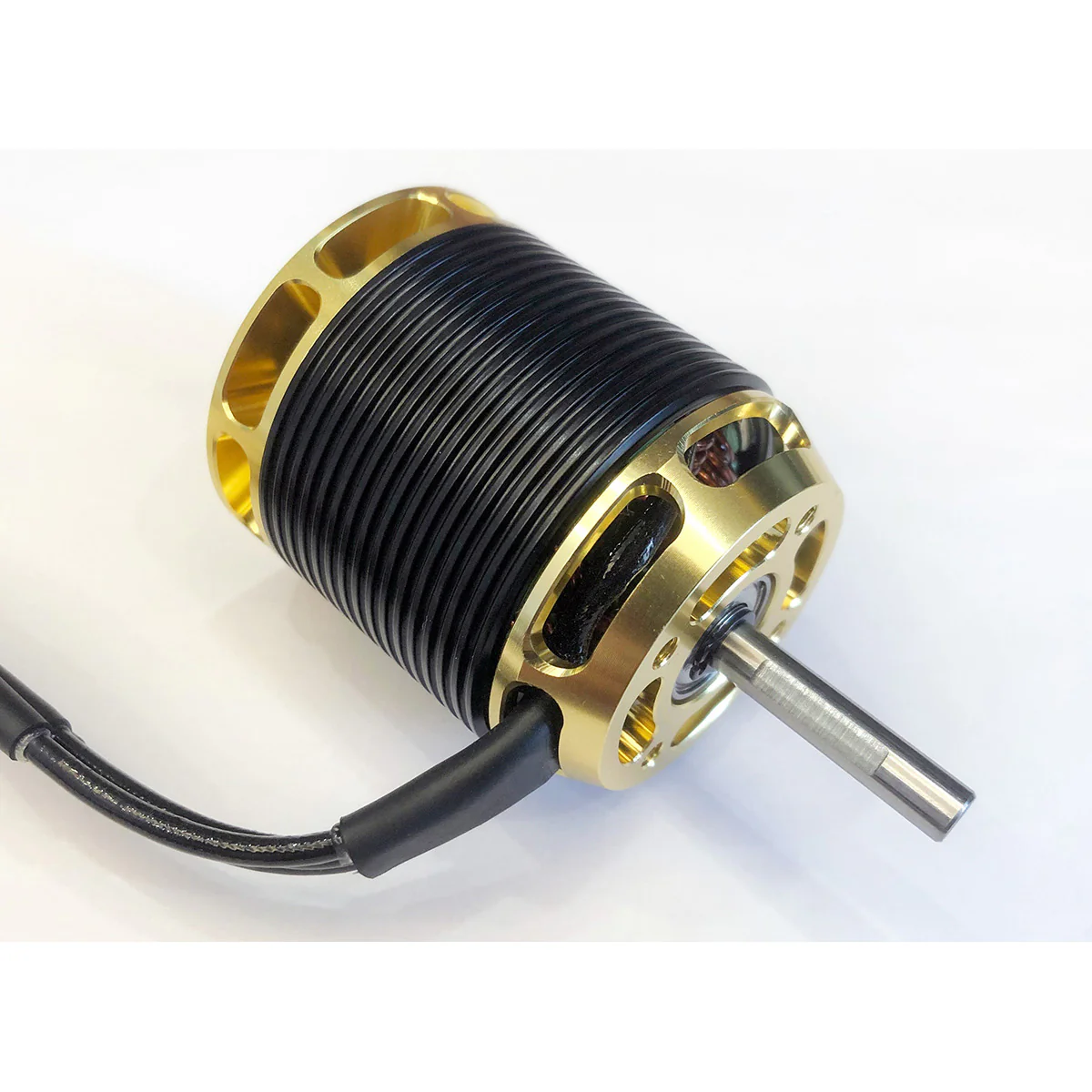

Combove Type 3225-960KV Brushless Motor
