Flywing H2 Flight Controller Unit w/ M10 U-blox GPS

Helicopter Type

HR/H3 aileronless swashplate tandem configuration with 24 servos/6 servos

Battery Type

3S, 4S, 6S, 12S Lithium-polymer Battery

Receiver Type

S-BUS/PPM/Y-BUS/WBUS/SUMD-DSM2/DSMX

Operating System Configuration Requirements

Win10, Win11 (64-bit)

System Rated Power Loss

2W

Voltage Input Range

6V-13V, Power supply by the BEC of the electronic speed controller

Operating Ambient Temperature

-10° to 55°

Weight

• Main controller: 34g

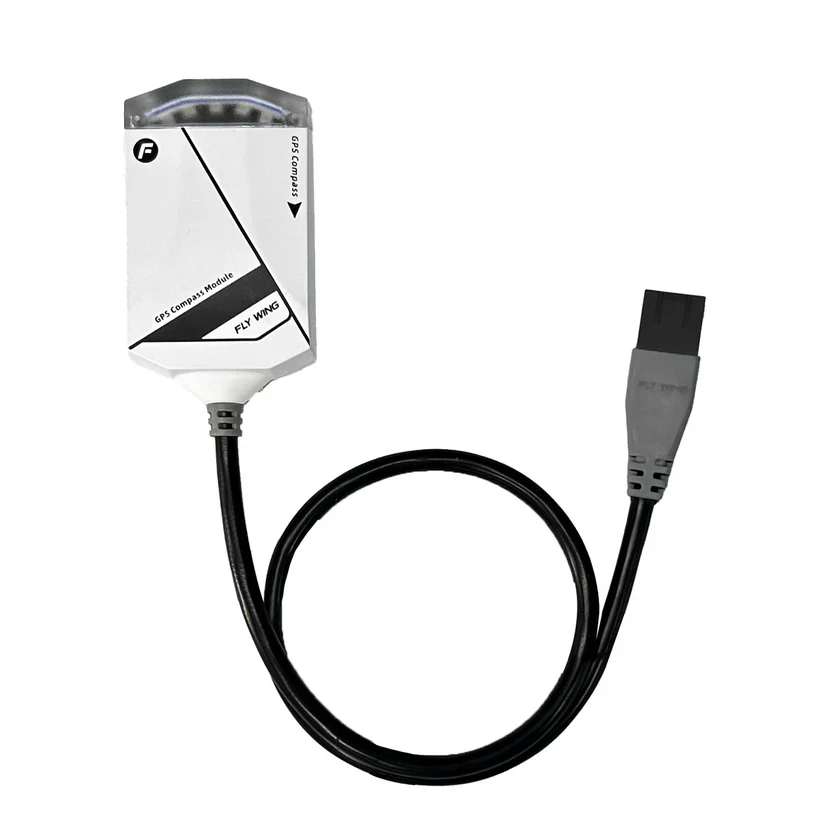

• CAN GPS: 33g
• UART GPS: 21.59g

Size

• Main controller: 48 mm x 31 mm x 18.5 mm
• CAN GPS: 47 mm x 30 mm x 14 mm
• UART GPS: 37 mm x 30 mm x 13.5 mm

Maximum Flight Angle

• Soft mode: 25°
• Standard mode: 30°
• Sport mode: 35°

Hovering Accuracy (GPS Mode)

• Vertical direction: ±0.5 m
• Horizontal direction: ±1.5 m
