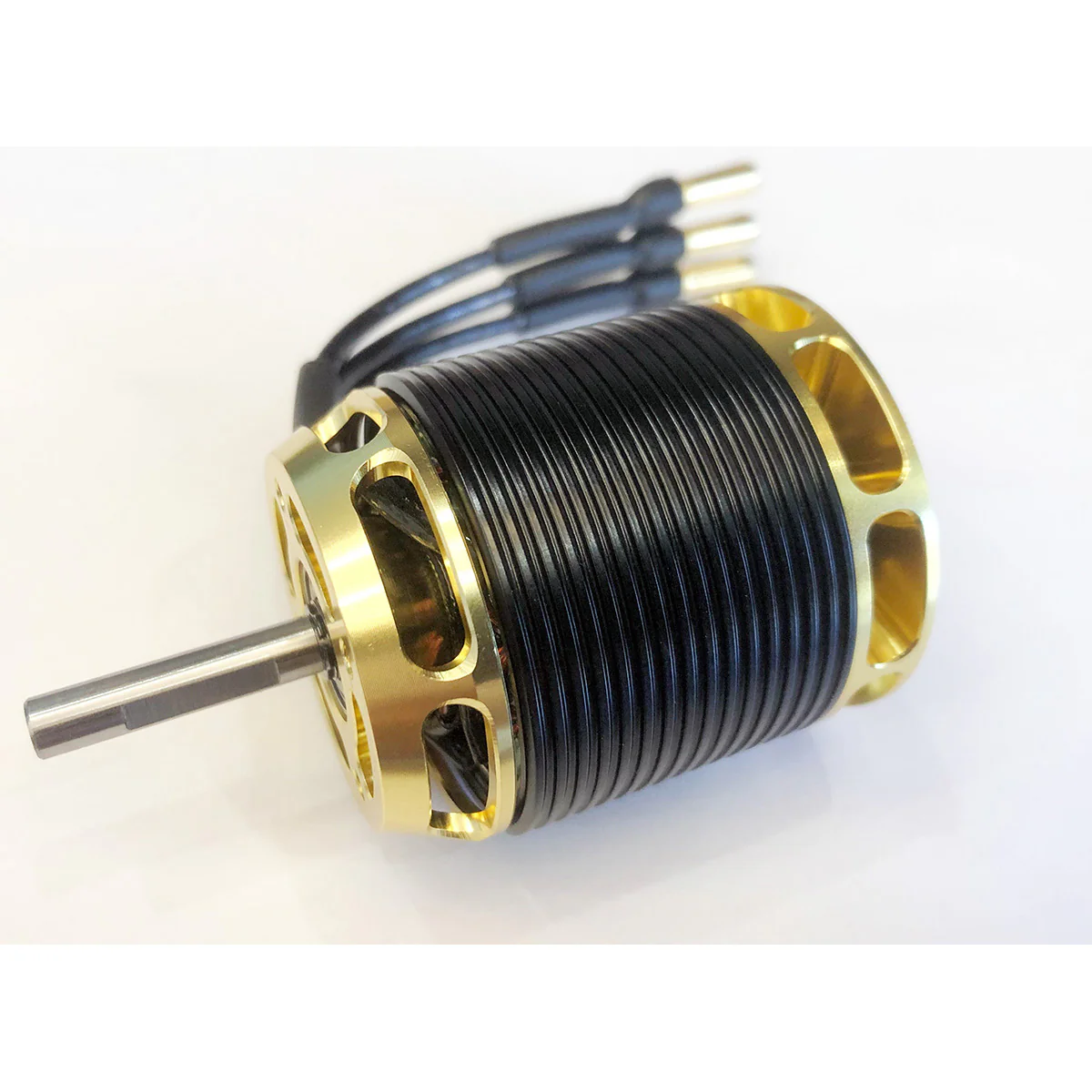

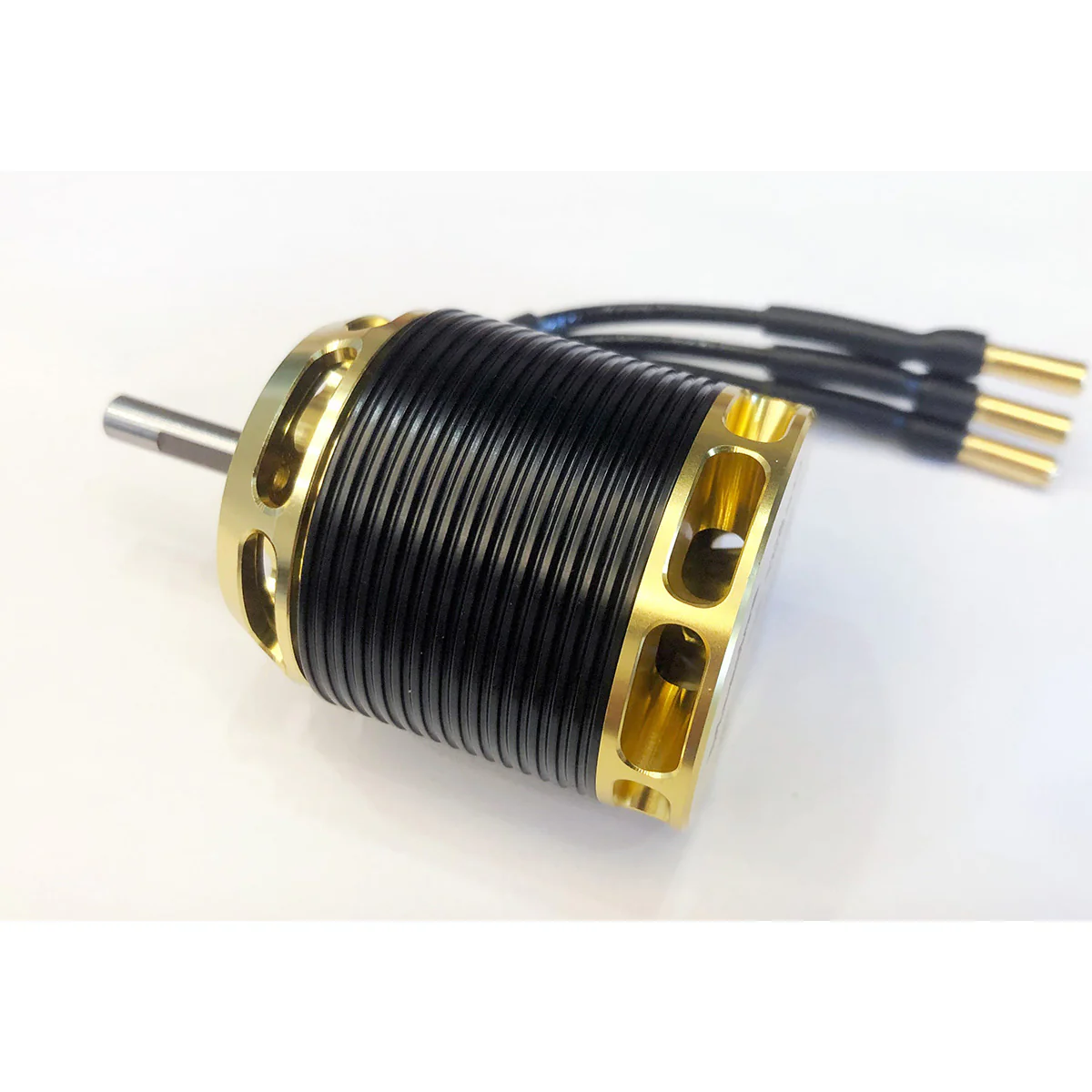

Combove Type 3225-960KV Brushless Motor

Specifications:

Product parameters:

Stator diameter: 32mm

Stator thickness: 25mm

Number of stator arms: 12

Magnetic pole: 10

Motor KV: 960KV RPM/Volt

No load current: 1.78A

Motor resistance: 0.017 Ohms

Maximum continuous current: 80A

Maximum continuous power: 1880W

Weight: 215g

Outer diameter: 40.5mm

Shaft diameter: 5mm

Length: 47mm

Length of each shaft: 70mm

Support 6S-8S batteries

Peak continuous current: 106A (5s)

Peak continuous power: 2350W (5s)

Transmission frequency: 8kHz~32kHz
