Xpert Servo Horn (25T)

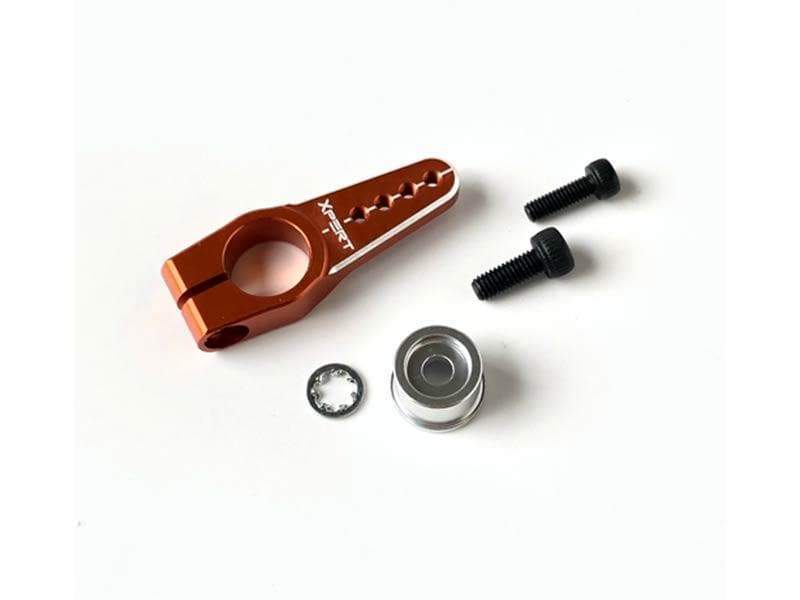

This is Xpert aluminum 25T clamping servo horn.

• Clamp design
• 3.00mm thickness arm

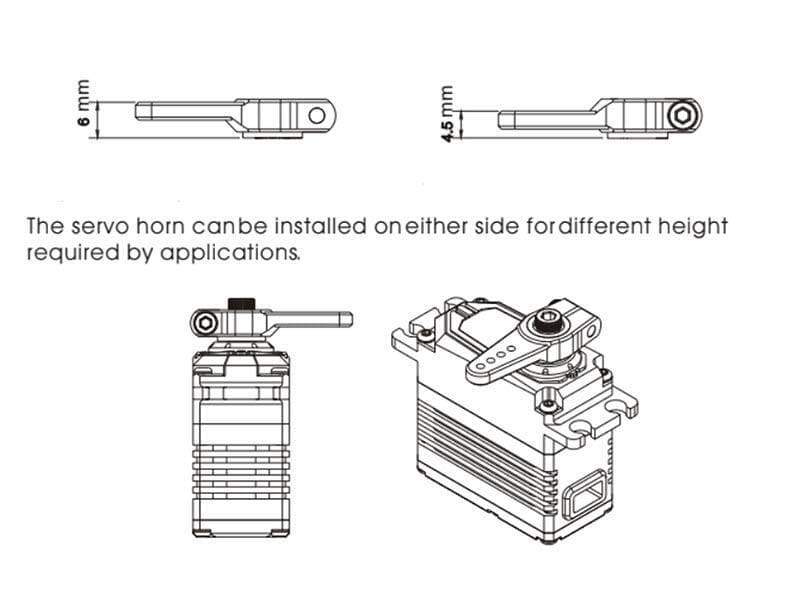

• The servo horn can be installed either side for different height requirement application.
• 33.50mm overall length

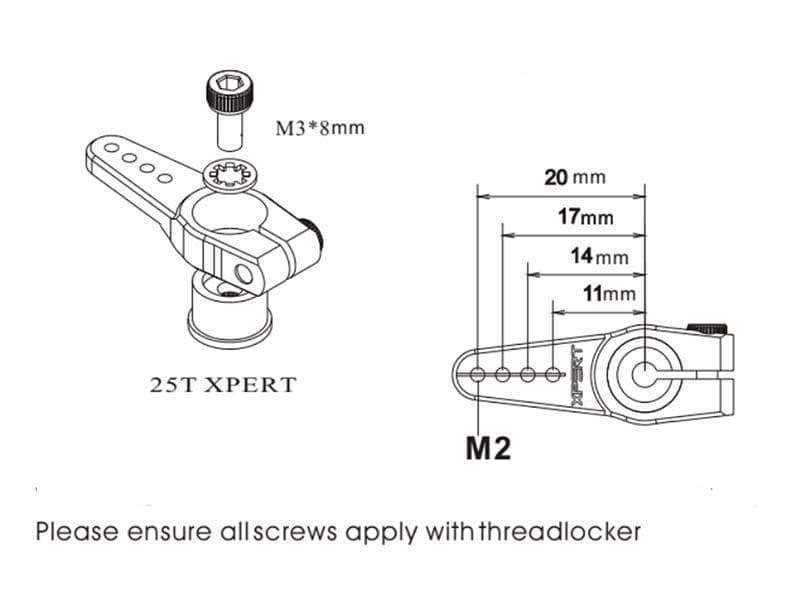

• 11/14/17/20mm hole spacing (measured from output shaft screw hole, to linkage rod holes, center to center)
• 25T spline Xpert output shaft
