Whiplash 730E (FBL) - Kit

Download Manual HERE



Whiplash Features:

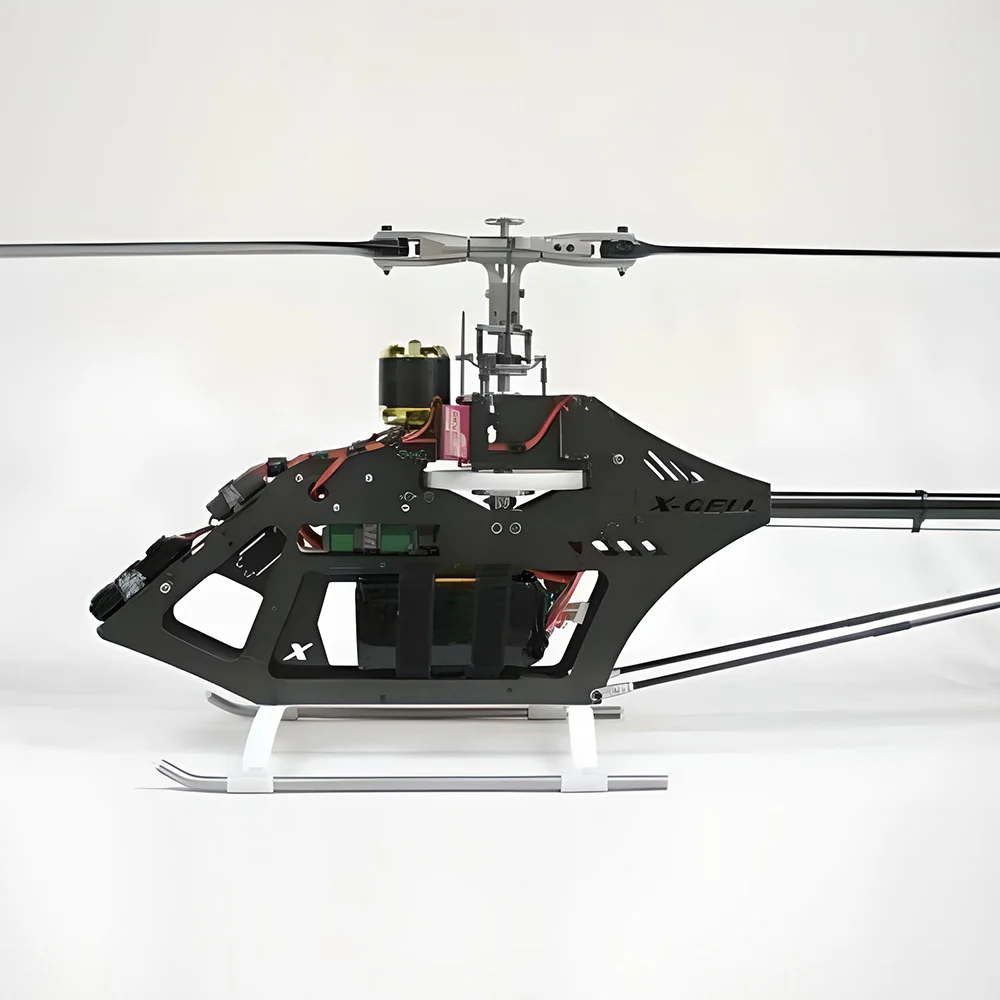

Chassis:

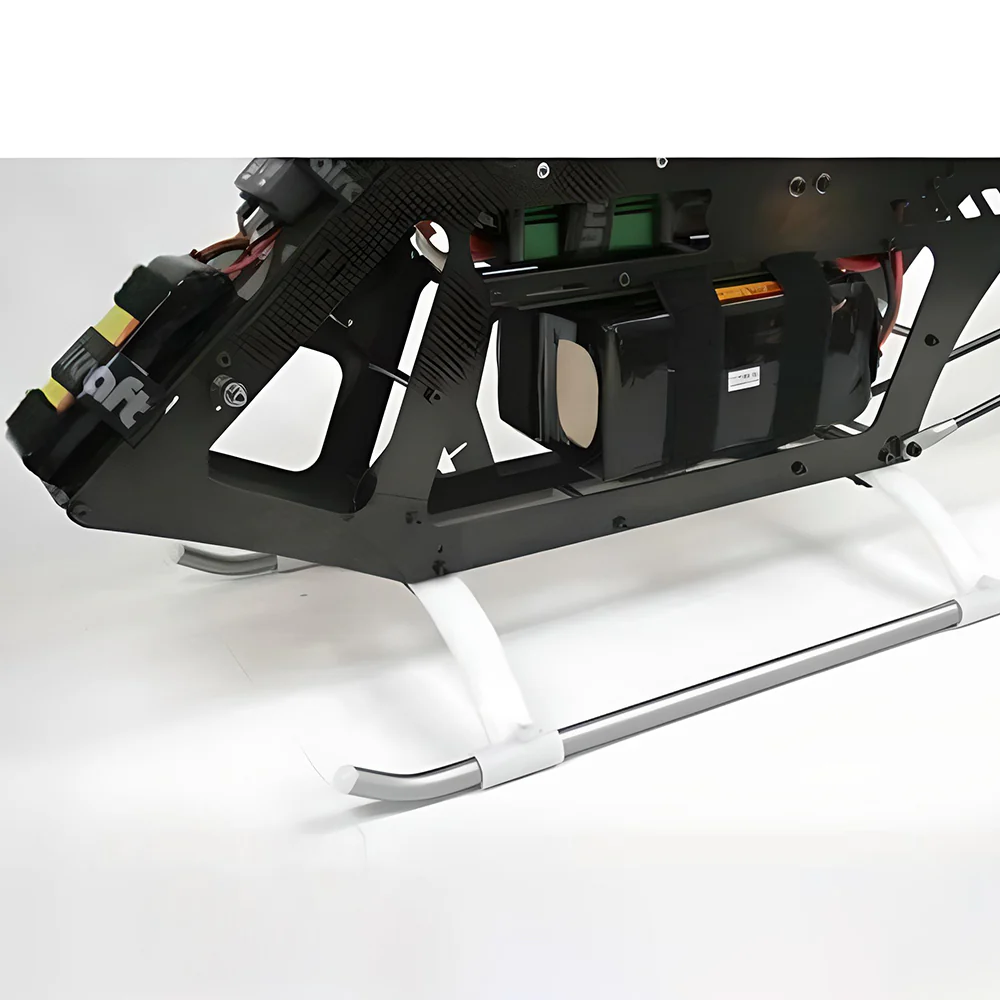

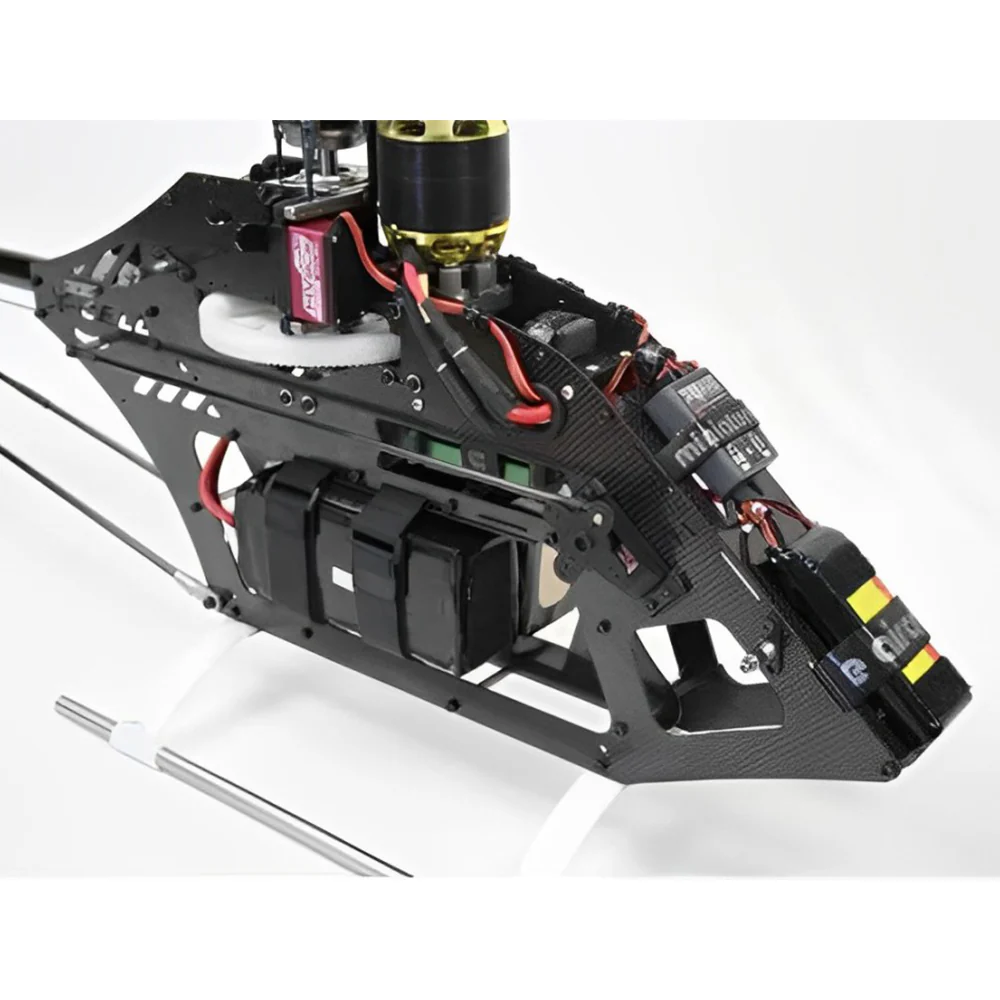

• New aggressively-styled, stiffer frames with side-by-side battery mounting for better GC control, increased cyclic and tail rate capabilities for more locked-in, slop free controls, and easier battery change-outs.

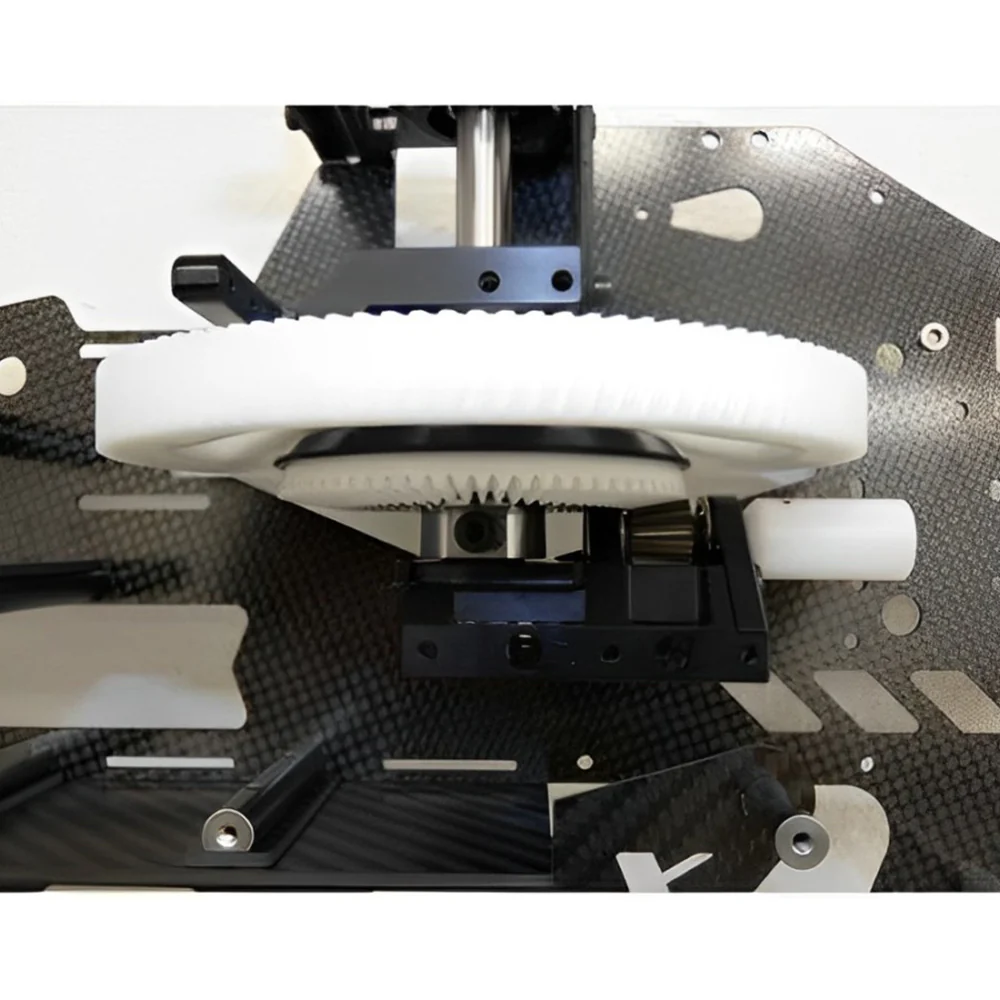

• 20° helical drivetrain with hardened steel pinion gear and CNC machined main gear.
• Improved gear ratios of 9:1 and 9.75:1 to match today’s motor Kv market.
• Adjustable motor mount for fine tuning gear mesh.

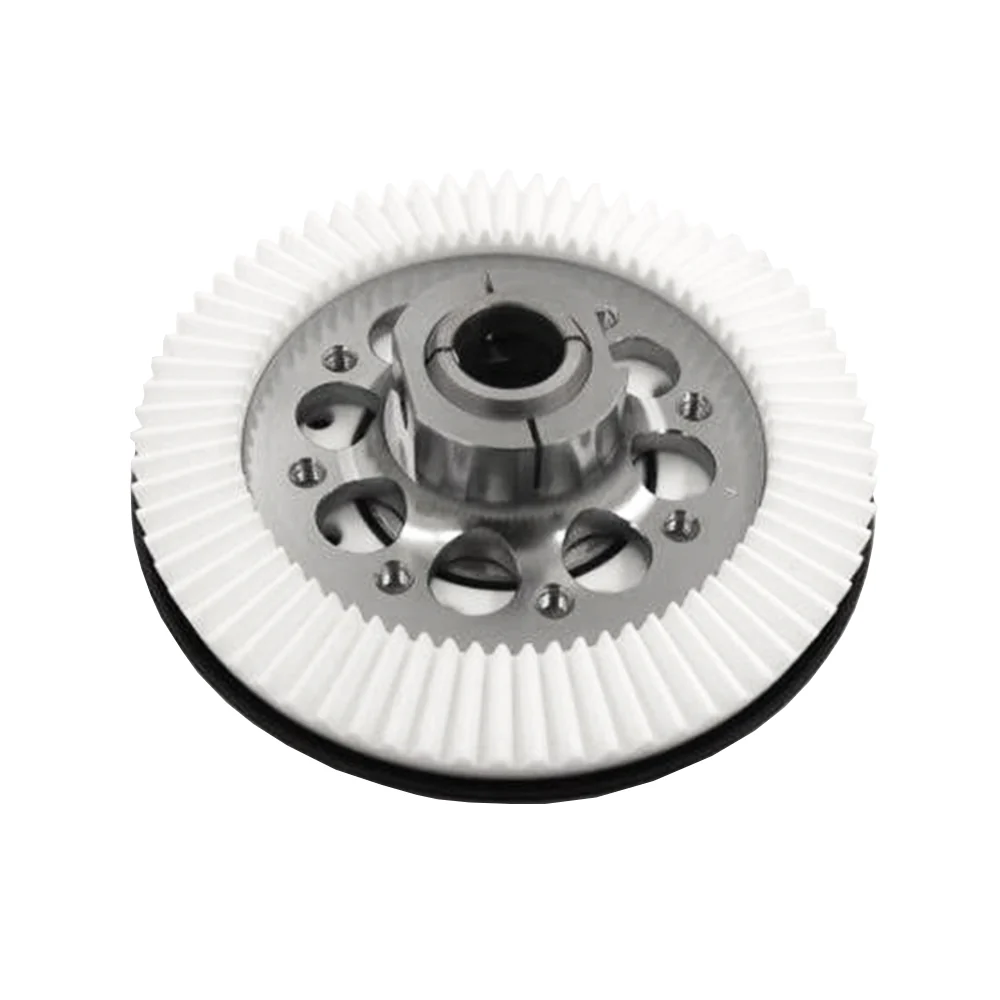

• Steel-sleeved main gear hub eliminates middle bearing block wear.
• True 6061-T6 CNC machined aluminum components.
• CNC machined aluminum triple main shaft bearing blocks.
• Narrowed tuff strut landing gear.
• Ball bearing supported pinion gear.
• Improved electronics placement and wiring options.

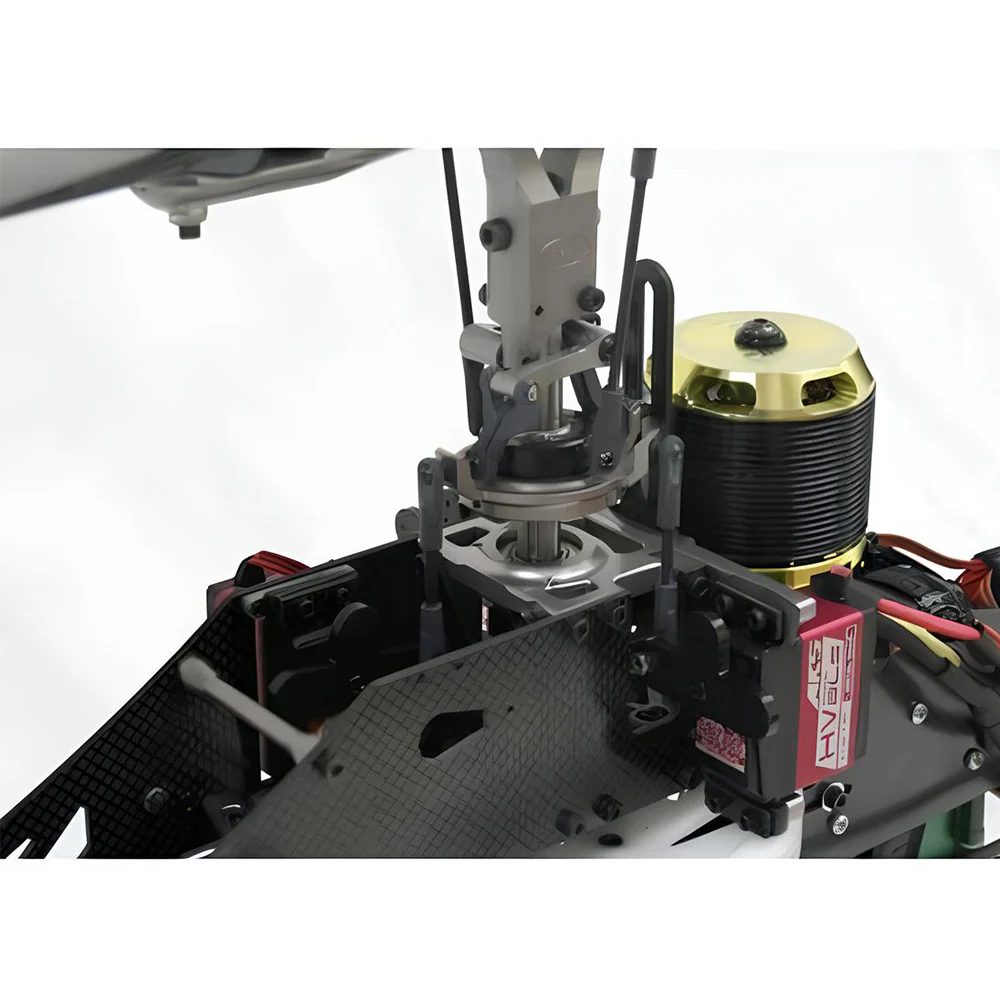

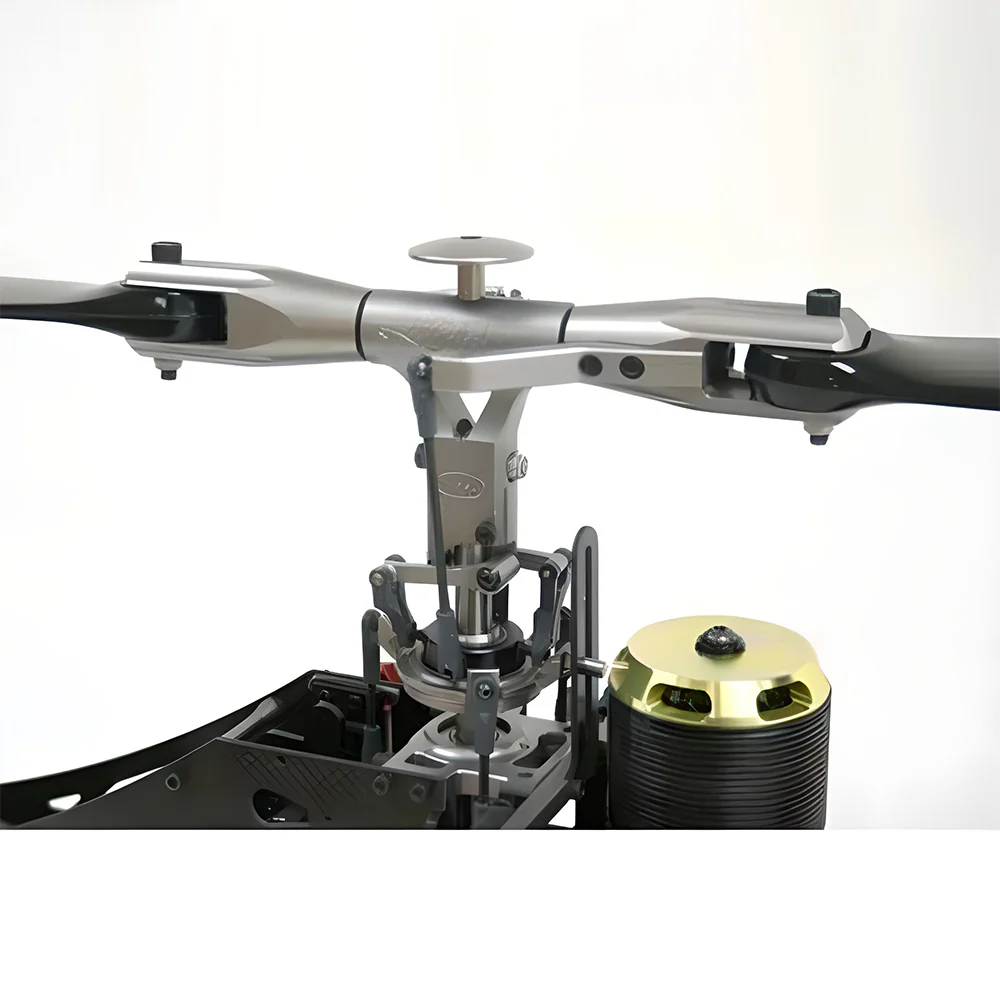

Rotor Head:

• Direct controlled 120 (degree) CCPM
• Heavy duty linkages
• 9mm head axle
• CNC machined aluminum swashplate
• CNC machined main rotor grips
• CNC machined main rotor head
• High quality swashplate heim ball/ball bearing

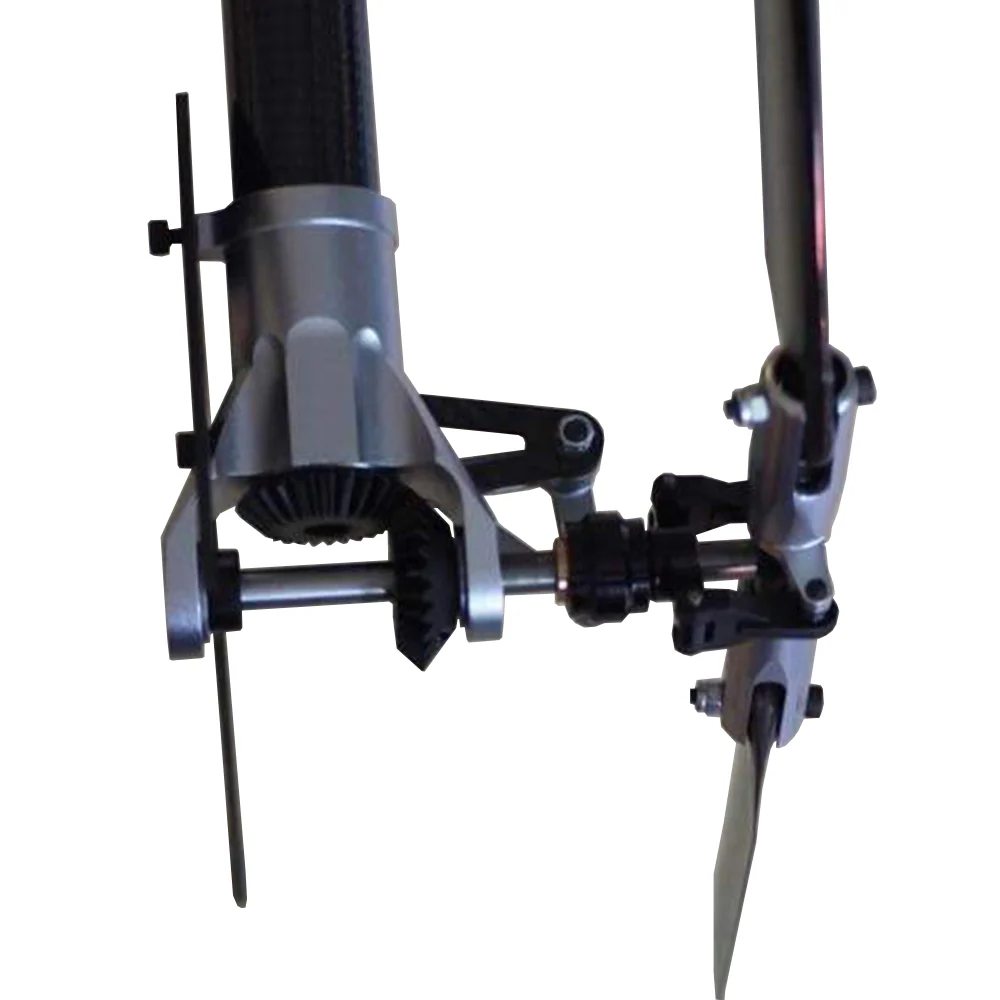

Tail Rotor:

• Full ball/thrust bearings
• Graphite tail fin

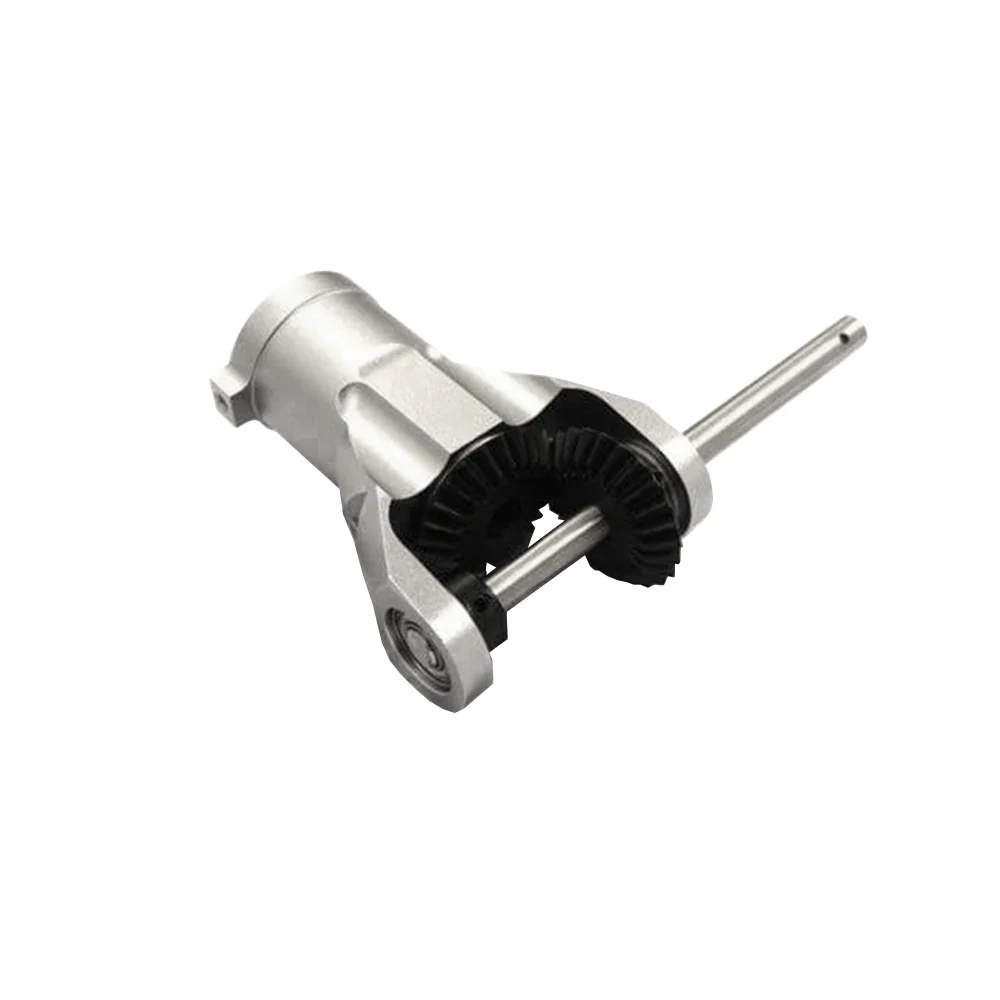

• CNC aluminum “open” gearbox
• Carbon 22mm tail boom
• Hardened tail rotor output shaft
• Carbon/Aluminum boom supports and CNC machined aluminum boom clamps

Canopy:

• New high-visibility painted canopy

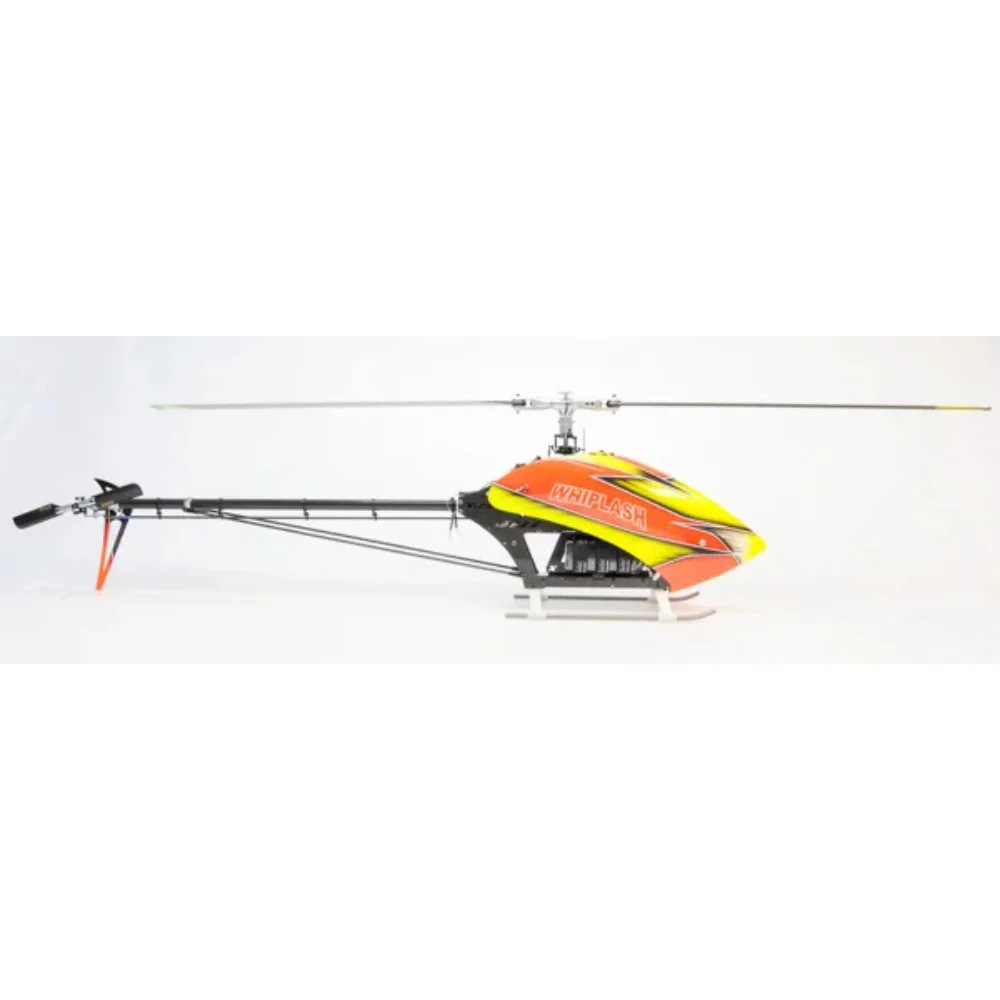

Model Specifications:

• Length: 52.5" (1333mm)
• Height: Flybar - 6.5” (419mm)
• Rotor Span: 1561-1601mm - 690-730mm blades
• Tail Rotor Span: 286mm with 105mm T/R blades
• Avg. Ready-to-Fly Weight: 11.5-12.5lbs - 5.22-5.67kg (w/batteries)
• Main Rotor Blades: 690-730mm
• Power: 12S, 490-560KV

Helicopter
Heli Length	52.5" (1333mm)
Heli Height	Flybarless - 17" (432mm)
Rotor Span	1561-1601mm - 690-730mm Blades
Tail Rotor Span	286mm with 105mm T/R Blades
Avg. Ready-to-Fly Weight	11.5-12.5 lbs - 5.22-5.67 kg (w/batts & electronics)
Main Drive Ratio	9.75:1 (9:1 Optional)
Tail Drive Ratio	4.5:1
Main Rotor Blades	690-730mm
Recommended Power	500-560KV, 12S 44.4V
