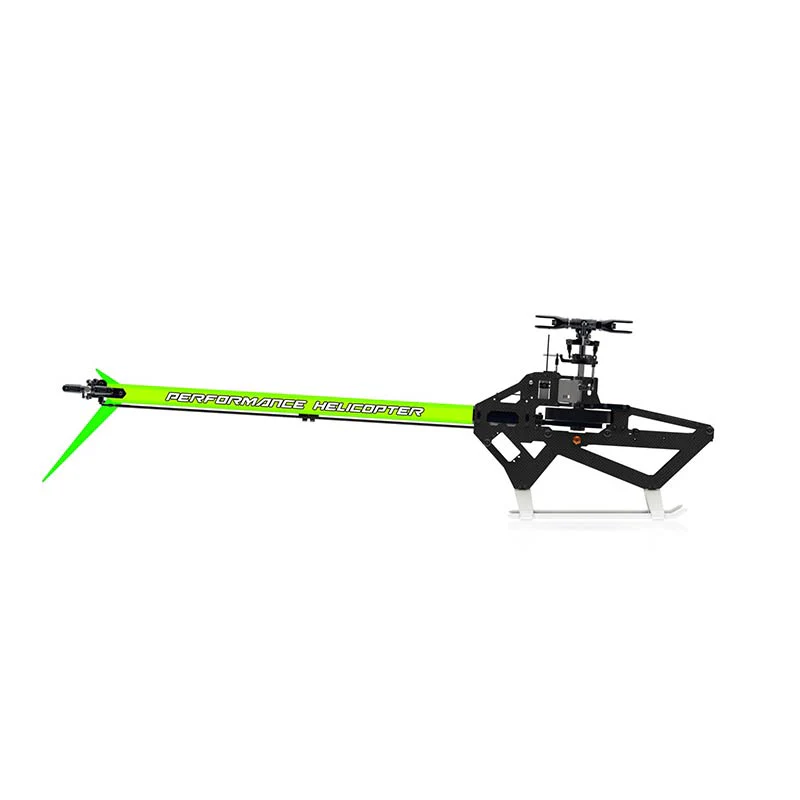

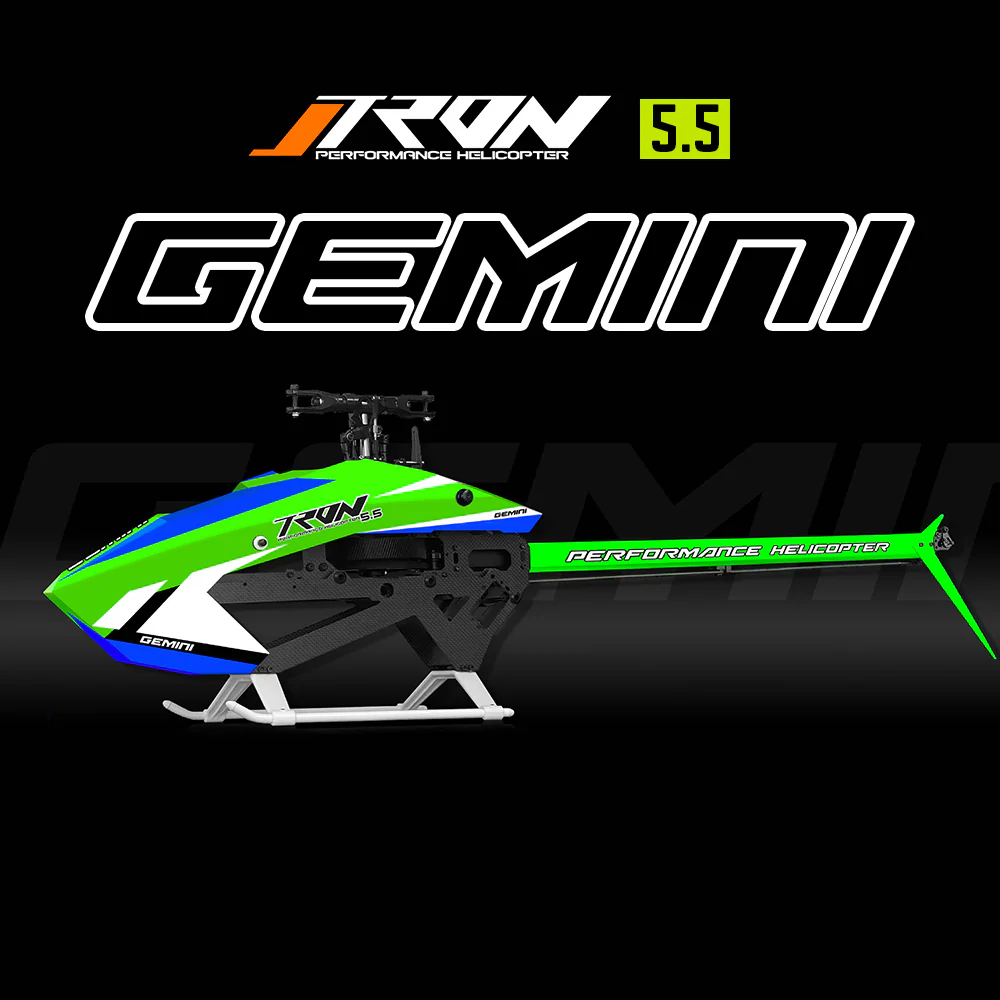

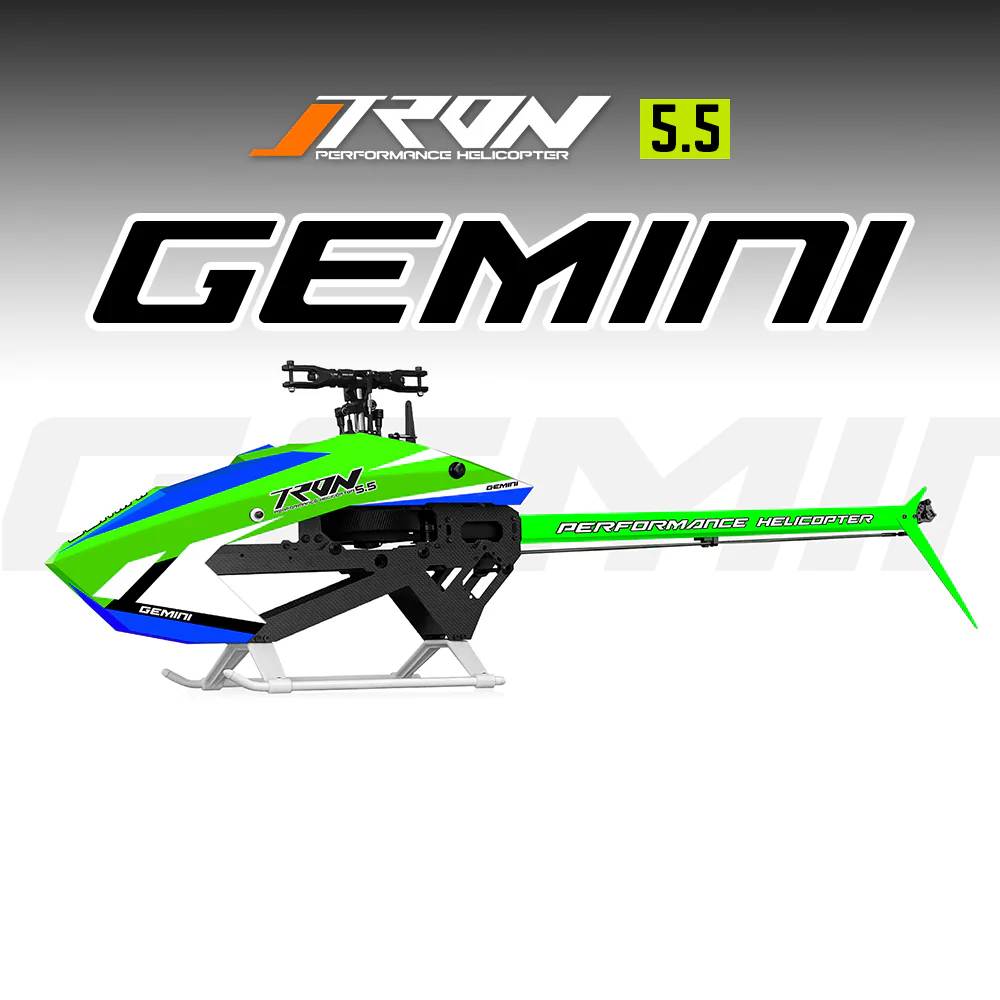

Tron 5.5 GEMINI Helicopter Kit (w/o Blades) (TR550-979)

Product image 1
Product image 2
Product image 3

Tron 5.5 GEMINI Helicopter Kit (w/o Blades) (TR550-979)

NEW!! 2* high quailty CNC batterie trays included in the new Tron 5.5 Gemini kit!

Features:

  • Complete new upper and lower frame design and layout
  • New redesigned larger main blade grips
  • 100% full carbon frames
  • New adjustable tail belt tensioner, which eliminates tail belt slap
  • 3 large bearings for better main shaft support eliminating the need for a 3rd bearing block
  • New larger CNC aluminum battery tray
  • New tail servo mounting position with aluminum adapters for full or mini size servos
  • Redesigned center hub and head dampeners
  • Redesigned all metal swash plate, programmable to increase or decrease flight response
  • Redesigned battery compartment layout allows for easier battery insertion and removal
  • New motor mount design for ease of pinion replacement and/or motor maintenance
  • New motor mount CNC frame stiffeners for increased frame support and rigidity
  • Higher boom mounting position for improved CG allowing for more axial rolling maneuvers
  • Overall larger appearance/size compared to original 5.5 without a significant increase in weight
  • New massive 14mm one way bearing design for maximum durability and reliability
  • New extremely durable and quiet 18mm CNC main gear (137T)
  • Redesigned and painted tail fin (no more stickers)
  • New painted tail boom
  • Design incorporates additional room for electronics allowing for perfect fore/aft CG location
  • Supersonic canopy mounts included in kit
  • Two completely styles available: Orion and Gemini (different canopy style and lower main frame)


Specifications:

- Main blade size / 550-560MM ( not included )
- Tail blade size  / 92-97MM ( not included )
- Dry weight / (1400) grams without blades and electronics
- 3 different tail gear ratios available: 18,19,20 teeth ( stock=19T rear pulley and 80T front pulley = 4.21 tail rotor ratio)
- 13,14,15,16,17T motor pinion available with 6mm bore. ( stock = 14T included = 9.78 ratio)


Need to complete:

- ESC / 80A-160A
- Motor / 4020-4025 size / (1200KV )
- FBL unit
- 3* cyclic mini and 1* mini or full size tail servo
- Typically 6S-4500-5800mah lipo battery
- Main blade  (550mm)
- Tail blade (95mm)

New extremely durable and quiet 18mm CNC main gear (137T).

A design masterpiece!

  • Extreme durable
  • Quiet
  • Fully CNC machined

The battery tray design by Tron helicopters has become one of the top favorites for pilots around the world. Now the new Tron 5.5 Orion / Gemini also includes the new CNC aluminium tray.

  • Extruded aluminum battery tray.
  • Safe and easy lock or unlock of the tray.
  • Great attention was paid to weight reduction in every detail.
  • Torsion resistance solid design.

Supersonic mounts included with the kit.

Locked and Secured in a second,
Our battery tray lock & new canopy mount design.

  • Supersonic canopy mounts for backside are included in kit.
  • Frontside use normal bolts, and its not necesarry to use the lock pins.

The Tron 5.5 Orion / Gemini belt tensioner

The new designed belt tensioner has an easy, unique and simple design.
Once the tail belt tensioner is set, no further adjustments are required.
And the best? The tail response and performance has gotten even better!


Full CNC precision rotor head

  • State of the art rotorhead made out of high grade aluminium.
  • Provides a ultra precise feeling at any headspeed.
  • Redesigned all metal swash plate, programmable to increase or decrease flight response.
  • Redesigned center hub and head dampeners.
  • New redesigned larger main blade grips

Full CNC precision tail rotor system

With an incredibly strong and durable tail drive unit, the Tron 5.5 Oriion / Gemini provides an ultimate feel during any maneuver, while featuring unique design elements.

The Tron 5.5 is simply style, also without a canopy.

The Tron 5.5  frame design allows for simplicity during assembly and maintenance. The servos, motor, ESC, and flybarless gyro are all easily accessible while maintaining incredible detail and elegance.

Unboxing Video:
