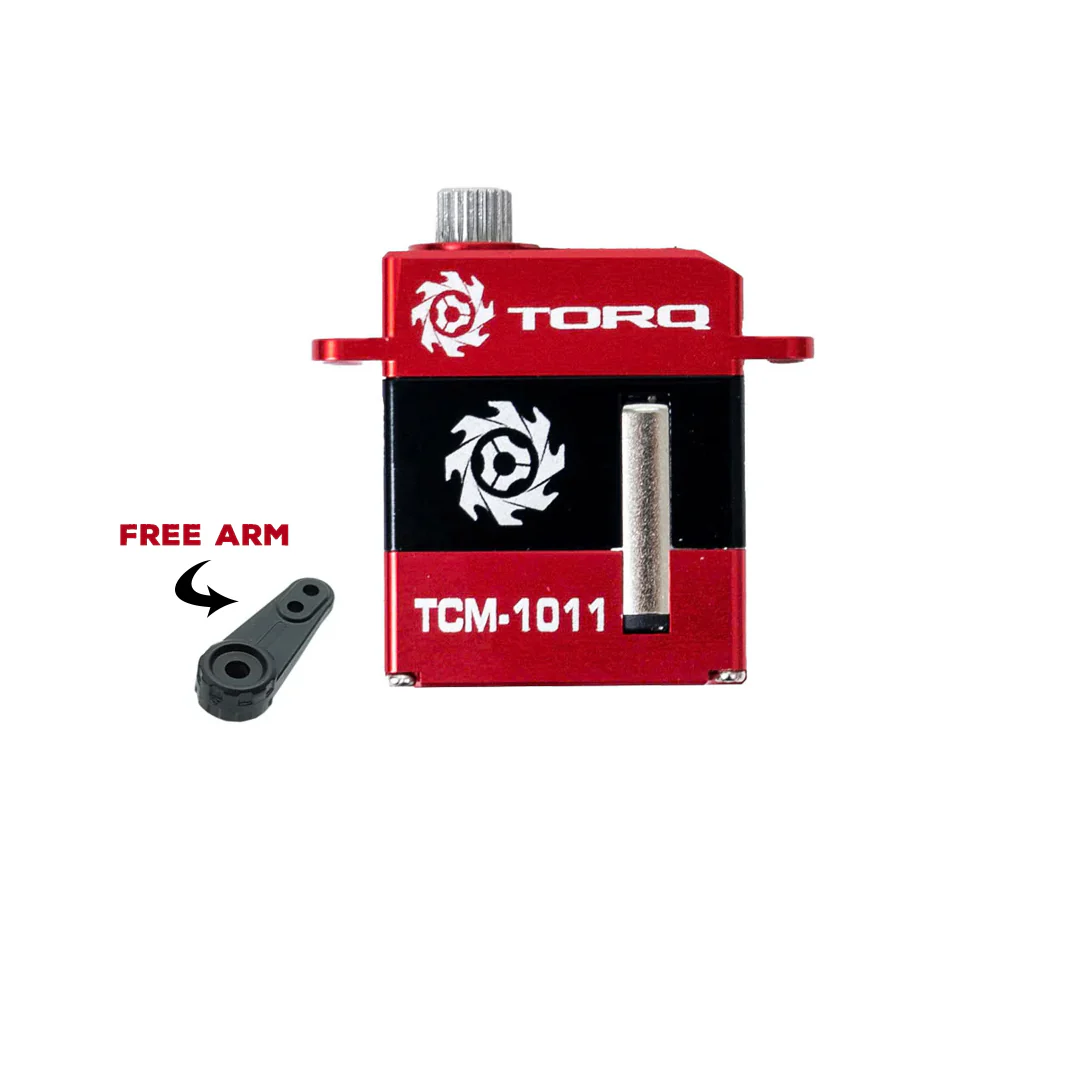

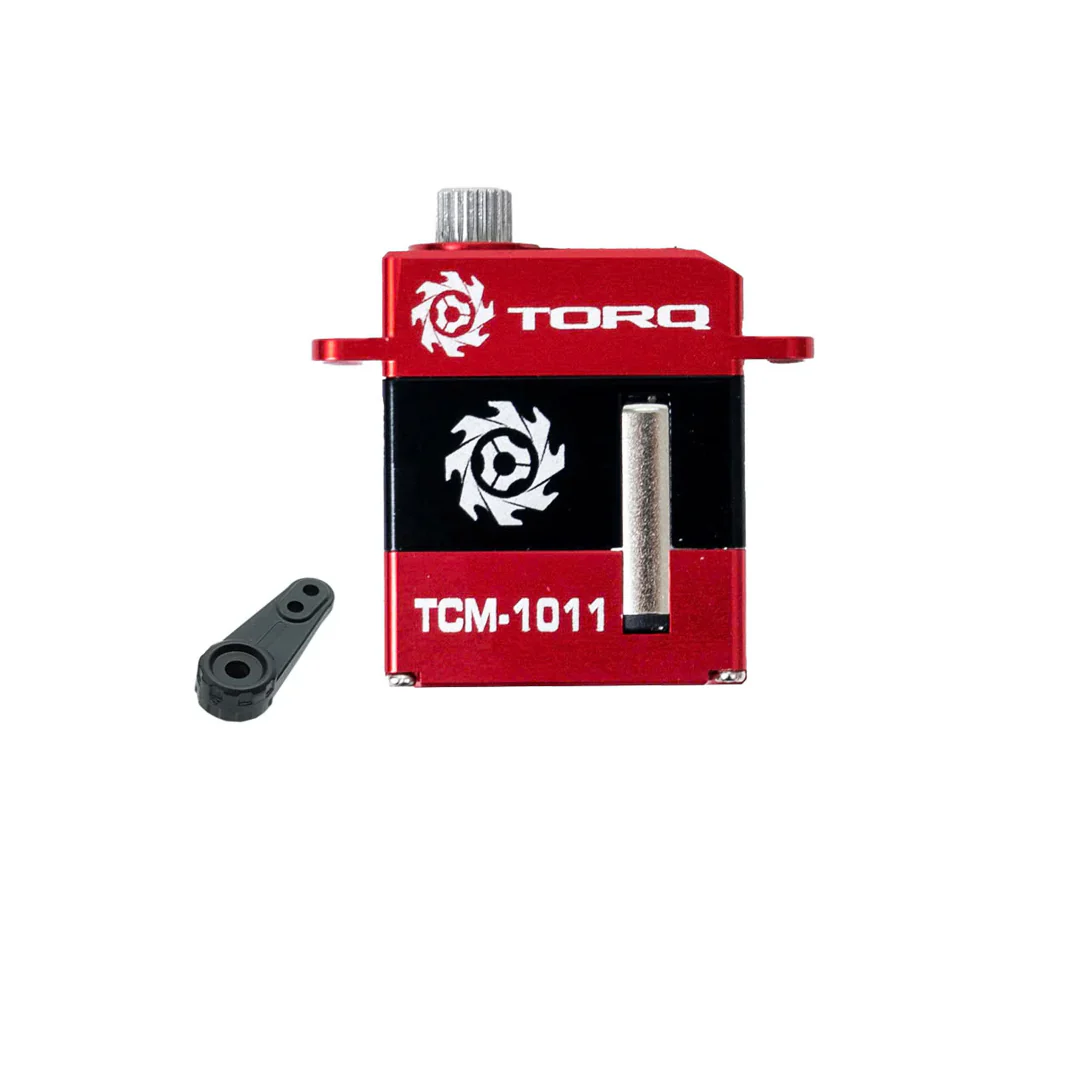

TORQ TCM-1011 Micro HV Servo for Helicopter

TORQ TCM-1011 Micro HV Servo for Helicopter

Introducing the TORQ TCM-1011 Full CNC Servo! Designed as the perfect equivalent to the popular TORQ CL0508, this servo is compatible with a wide range of small helicopters, from 420 models to even smaller ones.

Crafted with high-quality materials and dependable electronics, it delivers exceptional performance and reliability. Its compact design features a bottom-exit wire configuration, offering smart space-saving benefits for tighter helicopter builds.

Include:

1 x TORQ TCM-1011

1 x Steam 25T-5 Plastic Servo Arm

Features

- High Torque Output: Delivers powerful performance for small-scale crawlers.

- Rear Exit Wires: Ensures suspension travel is unhindered for optimal performance.

- Simplified Installation: Easy to mount due to its unique design.

- Enhanced Clearance: Designed for ultimate clearance around the servo.

Specifications

- Dead Bandwidth: 2μs

- Working Frequency: 1520μs / 330Hz

- Operating Voltage: 6.0V - 8.4V

- Motor Type: Coreless Motor

- Operating Speed:

  - At 6.0V: 0.1 sec/60°

  - At 8.4V: 0.07 sec/60°

- Stall Torque:

  - At 6.0V: 8.2 kg-cm (113 oz-in)

  - At 8.4V: 11.5 kg-cm (160 oz-in)

- Dimensions: 23 x 12 x 27.5 mm (0.91 x 0.47 x 1.08 inches)

- Weight: 20.0 g (0.7 oz)

- Connector Wire Length: JR 170 mm (6.7 inches)

- Output Gear Spline: 25T

Benefits

- Space Efficiency: Compact design fits seamlessly within small-scale crawler setups.

- Performance Enhancement: Unhindered suspension movement leads to better crawler performance.

• Ease of Installation: Simplifies the mounting process, saving time and effort.
