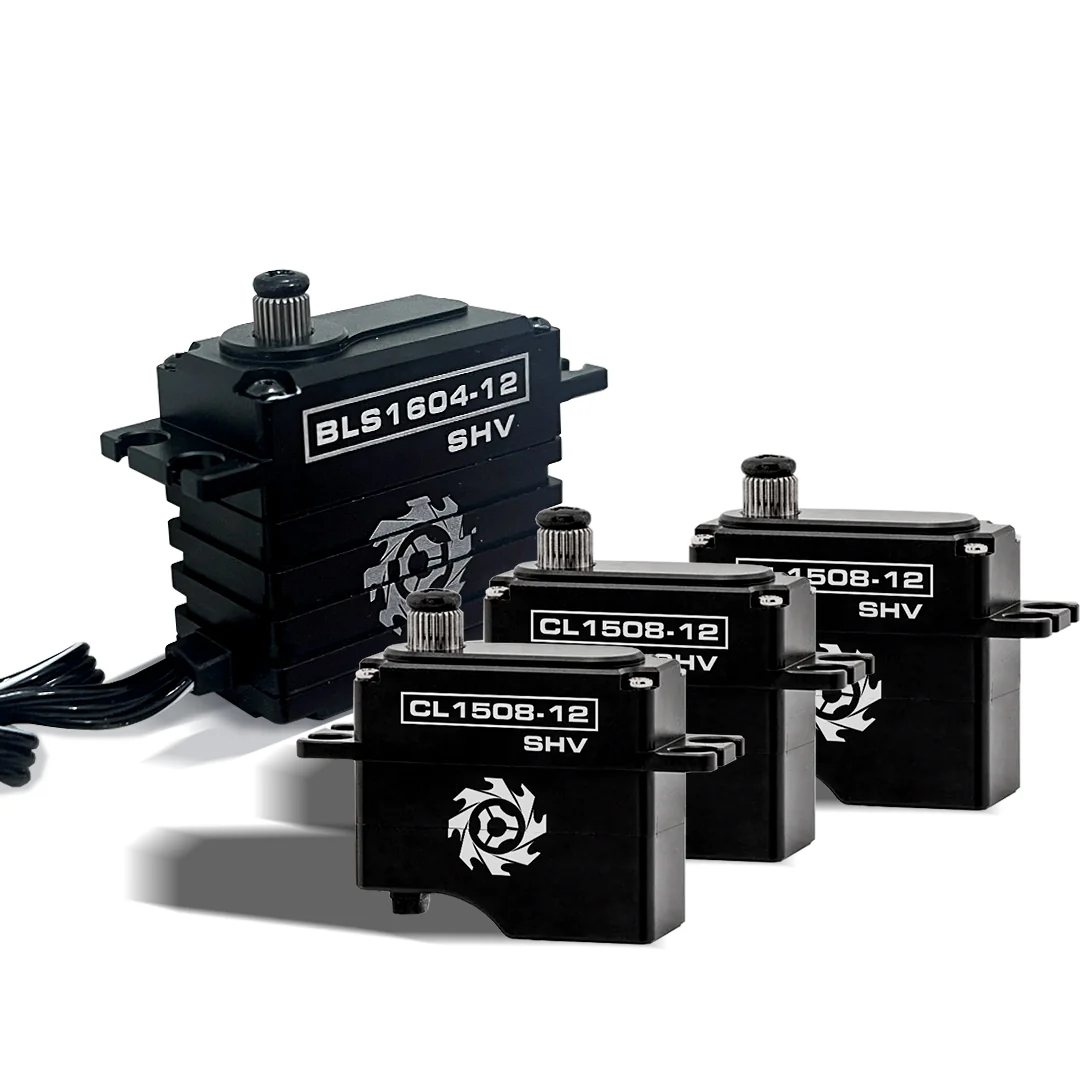

TORQ SHV CL1508 Mini Cyclic & BLS1604 Standard Rudder Servo Combo - Suitable For 550-600 Size Helicopters

TORQ SHV CL1508 Mini Cyclic & BLS1604 Standard Rudder Servo Combo -  Suitable For 550-600 Size Helicopters

Explore new worlds of precision & control with the TORQ CL1508-12 and BLS1604-12 SHV Helicopter Servos. Specifically designed for the intense demand of helicopter control, the Black Edition has been optimized for incredible levels of precision and resolution

Combo includes

• CL1508-12 *3pcs
• BLS1604-12 *1pcs

TORQ CL1508-12 Specification

• Rated Voltage: DC12.0V
• Voltage Range : DC8.40V-13.0V
• Torque:
  • [email protected]
  • [email protected]
  • 20.0 [email protected]
• Speed:
  •  0.15sec/60°@8.40V
  • 0.11sec/60°@12.0V
  • 0.10sec/60°@13.0V
• Working Frequency: 1520us/333Hz
• Soft Start: Programmable
• Programmable: Yes

• Motor Type: Coreless DC Motor
• Gear Set Material: Hardened Steel

• Ball Bearing: 2BB
• Case Dimensions: 33mm*15mm*30mm±0.2mm
• Weight: 35g±10%

TORQ BLS1604-12 Specification

• Rated Voltage: DC12.0V
• Voltage Range : DC9.0V-13.0V
• Torque:
  • 17Kg.cm @ 13.0V
  • 16Kg.cm @ 12.0V
  • 14Kg.cm @ 9.0V
• Speed:
  • 0.04 sec / 60° @ 13.0V
  • 0.045 sec / 60° @ 12.0V
  • 0.055 sec / 60° @ 9.0V
• Working Frequency: 760us/560Hz

• Programmable: Yes

• Motor Type: Brushless DC Motor
• Gear Set Material: Hardened Steel

• Ball Bearing: 2BB
• Case Dimensions: 40.5mm*20mm*38mm

• Weight: 78g±10%
