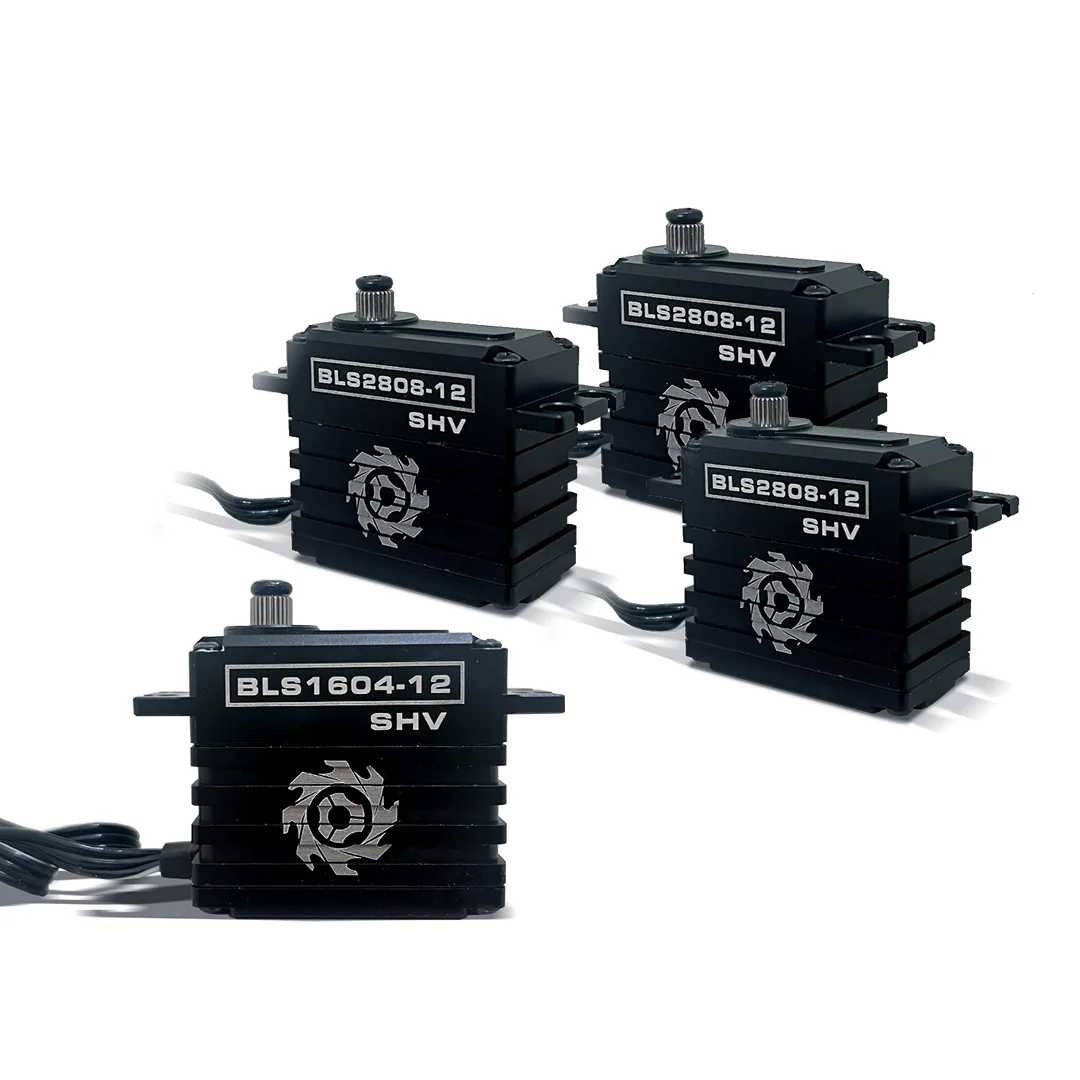

Torq Combo Full Size SHV Brushless Servo

Combo includes

• BLS2808-12 *3pcs
• BLS1604-12 *1pcs



TORQ BLS2808 Full Size SHV Brushless Servo

Features:
- Brushless DC Motor Technology for the Ultimate Power & Control
- Incredible Levels of Speed & Performance
- Ultra Precise, High-Resolution Control
- Fully Replaceable Gear Train for Maximum Strength
- Excellent Thermal Dissipation via Finned 6061 Aluminum Case
- 9-13V Super High Voltage Ready
- Optimized for Heli
- Dual Ball Bearing Construction

Speed:
0.07 sec / 60° @ 13.0V
0.08 sec / 60° @ 12.0V
0.09 sec / 60° @ 9.0V

Torque:
30Kg.cm / 416.62 oz in. @ 13.0V
28Kg.cm / 388.84 oz in. @ 12.0V
25Kg.cm / 347.18 oz. in. @ 9.0V

Specifications:
Motor Type: Brushless
Servo Arm Type: Futaba
Working Frequency:  760us / 560Hz
Weight: 78g
Dimensions: 40.5mm x 20mm x 38mm (LxWxH)
Voltage Range: 9.0V - 13.0V

Usage Note:

Servo Grommet is suggested use if you use our servo on Nitro Heli.



TORQ BLS1604 Full Size SHV Brushless Servo

Features:
- Brushless DC Motor Technology for the Ultimate Power & Control
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Fully Replaceable Gear Train for Maximum Strength
- Excellent Thermal Dissipation via Finned 6061 Aluminum Case
- 9-13V Super High Voltage Ready
- Optimized for Heli
- Dual Ball Bearing Construction

Speed:
0.04 sec / 60° @ 13.0V
0.045 sec / 60° @ 12.0V
0.055 sec / 60° @ 9.0V

Torque:
17Kg.cm / 236.08 oz in. @ 13.0V
16Kg.cm / 222.19 oz in. @ 12.0V
14Kg.cm / 194.42 oz. in. @ 9.0V

Specifications:
Motor Type: Brushless
Servo Arm Type: Futaba
Working Frequency:  760us / 560Hz
Weight: 78g
Dimensions: 40.5mm x 20mm x 38mm (LxWxH)
Voltage Range: 9.0V - 13.0V

Usage Note:

Servo Grommet is suggested use if you use our servo on Nitro Heli.
