TORQ Servo Combo for J10

TORQ Servo Combo for J10 Jet

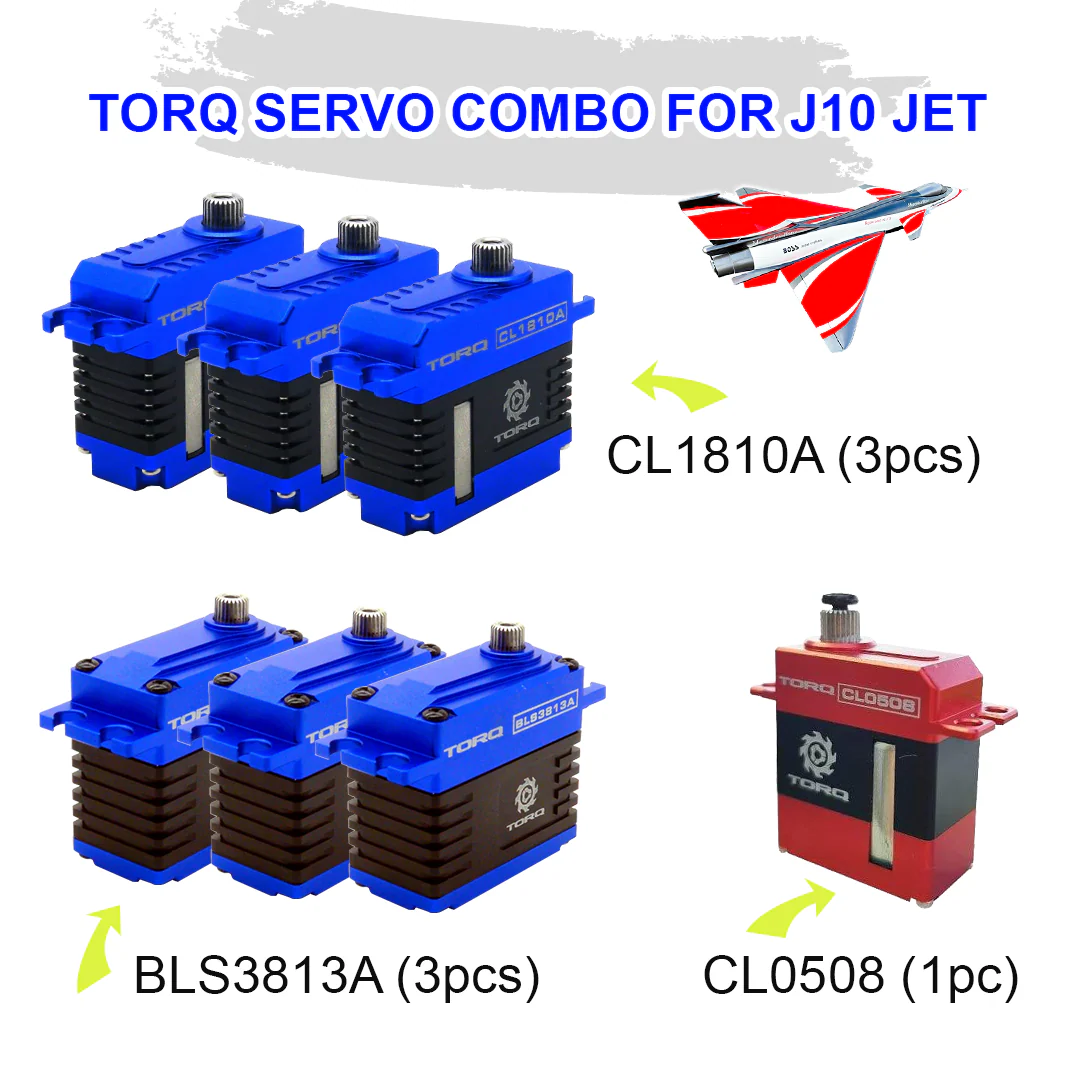

Experience unparalleled precision and power with the TORQ Servo Combo, designed specifically for J10 Jet enthusiasts. This combo includes 3 pcs*TORQ CL1810A servos, 3 pcs*TORQ BLS3813A servos and 1 pcs*CL0508, ensuring optimal performance for your high-speed jet.

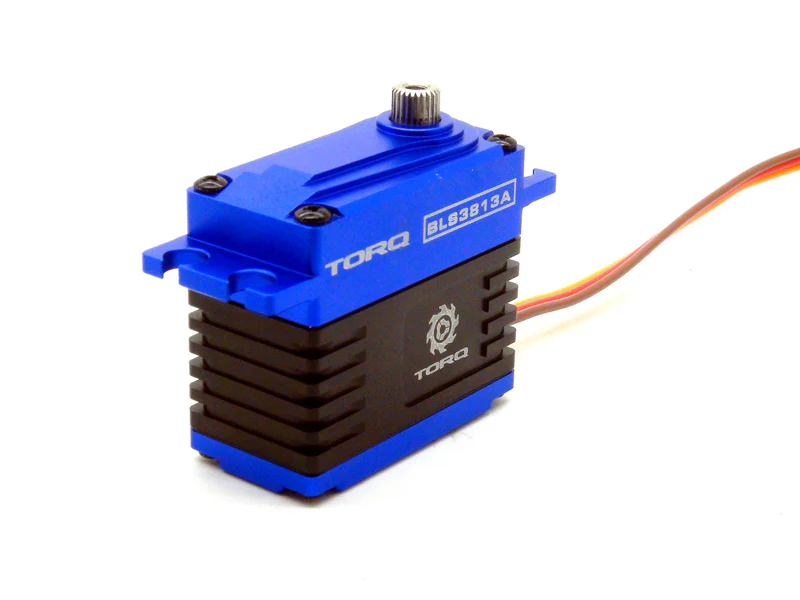

1. TORQ BLS3813A Brushless High Torque Metal Gear Digital Servo (3pcs)

Operating Voltage: 6.0 ~ 8.4 DC Volts
Speed: 0.15sec/60°@6.0V / 0.13sec/60°@7.4V / 0.12sec/60°@8.4V
Signal: 900-2100Hz
Motor Type: Brushless
Gear Type: Metal
Operating Temperature: -20℃~55℃
Size: 40.5*20*38mm

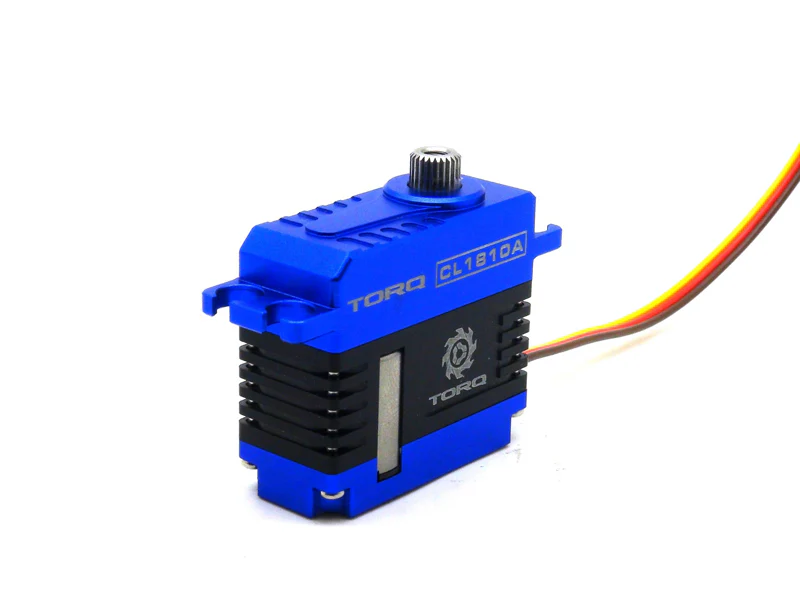

2. TORQ CL1810A Coreless High Torque Metal Gear Digital Servo (2pcs)

Case Material: Aluminum Alloy
Motor Type: Coreless
Gear Set Material: Phosphor Bronze + Hardened Steel
Position Sensor: Potentionmeter
Dimension: 35.5x15x32.5mm
Weight: 42g
Operation Voltage(rated): 7.4V
Operation Voltage Range: DC 6.0V - 8.4V
Torque: [email protected], [email protected], [email protected]
Speed: 0.14sec/60°@6.0V, 0.12sec/60°@7.4V, 0.10sec/60°@8.4V
Travel Angle: ±50° when 1000-2000us
Operating Temperature Range: -10℃ ~ +65℃

3. TORQ CL0508 Micro HV Servo

Torque:

6.20Kg.cm (86.10 oz. in.) @ 8.4V
5.20Kg.cm (72.21 oz. in.) @ 7.4V
4.20Kg.cm (58.32 oz. in) @ 6.0V

Transit Speed:

0.07 sec. @ 8.4V
0.08 sec. @ 7.4V
0.09 sec. @ 6.0V

Specifications:

Dimensions: 23x12x27.5mm (LxWxH)
Weight: 20g
Operating Voltage: 4.8V - 8.4V DC
Working Pulse Width / Frequency: 1520us / 333Hz  or  760us / 560Hz (need the TBOX Program Card)

$694.00
TORQ Servo Combo for J10—
$694.00

Product Information

Shipping & Returns

Description

TORQ Servo Combo for J10 Jet

Experience unparalleled precision and power with the TORQ Servo Combo, designed specifically for J10 Jet enthusiasts. This combo includes 3 pcs*TORQ CL1810A servos, 3 pcs*TORQ BLS3813A servos and 1 pcs*CL0508, ensuring optimal performance for your high-speed jet.

1. TORQ BLS3813A Brushless High Torque Metal Gear Digital Servo (3pcs)

Operating Voltage: 6.0 ~ 8.4 DC Volts
Torque: [email protected] / [email protected] / [email protected]
Speed: 0.15sec/60°@6.0V / 0.13sec/60°@7.4V / 0.12sec/60°@8.4V
Signal: 900-2100Hz
Motor Type: Brushless
Gear Type: Metal
Operating Temperature: -20℃~55℃
Size: 40.5*20*38mm

2. TORQ CL1810A Coreless High Torque Metal Gear Digital Servo (2pcs)

Case Material: Aluminum Alloy
Motor Type: Coreless
Gear Set Material: Phosphor Bronze + Hardened Steel
Position Sensor: Potentionmeter
Dimension: 35.5x15x32.5mm
Weight: 42g
Operation Voltage(rated): 7.4V
Operation Voltage Range: DC 6.0V - 8.4V
Torque: [email protected], [email protected], [email protected]
Speed: 0.14sec/60°@6.0V, 0.12sec/60°@7.4V, 0.10sec/60°@8.4V
Travel Angle: ±50° when 1000-2000us
Operating Temperature Range: -10℃ ~ +65℃

3. TORQ CL0508 Micro HV Servo

Torque:

6.20Kg.cm (86.10 oz. in.) @ 8.4V
5.20Kg.cm (72.21 oz. in.) @ 7.4V
4.20Kg.cm (58.32 oz. in) @ 6.0V

Transit Speed:

0.07 sec. @ 8.4V
0.08 sec. @ 7.4V
0.09 sec. @ 6.0V

Specifications:

Dimensions: 23x12x27.5mm (LxWxH)
Weight: 20g
Operating Voltage: 4.8V - 8.4V DC
Working Pulse Width / Frequency: 1520us / 333Hz  or  760us / 560Hz (need the TBOX Program Card)
