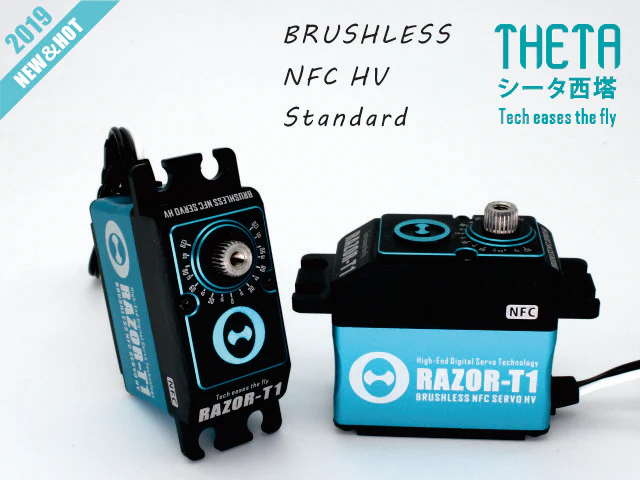

THETA RAZOR-T1 NFC HV Standard Brushless Tail Servo
High voltage, standard size brushless servo 600, 700 and even 800 class helicopters tail servo airplanes a great throttle or steering servo on most cars (SANWA SSR compatible)
40*20*38mm 73g
Features:
- High Voltage
- High Speed
- Excellent Centering
- Compatible with Futaba type horns/arms
- Fully programmable via NFC enabled Android smart phones
- Light Weight
Technical Specs:
- Limit angle: 180±10°(500-2500µsec)
- Operating travel: 90°(1000-2000µsec)
- Rotating direction: Adjustable
- Neutral position: 760us/1520µsec (adjustable, 760us default)
- Maximum travel: ˜150°(800-2200µsec)
- Pulse width range: Adjustable
- Connector wire length: 320 ± 5 mm
- Connector wire gauge: #22PVC
- Dead band width: 1-4µsec
- Size: 40x20x38mm
- Weight: 73g
| Voltage (V) | Current (A) |
Speed (s/60°) |
Torque(kg*cm) |
|
5.0 |
2.6 |
0.062 |
17 |
|
6.0 |
2.6 |
0.054 |
18 |
|
7.4 |
2.6 |
0.047 |
19 |
|
8.4 |
2.6 |
0.042 |
20 |
|
5.0 |
5.0 |
0.058 |
20 |
|
6.0 |
5.0 |
0.051 |
24 |
|
7.4 |
5.0 |
0.044 |
27 |
|
8.4 |
5.0 |
0.039 |
30 |
$155.99
