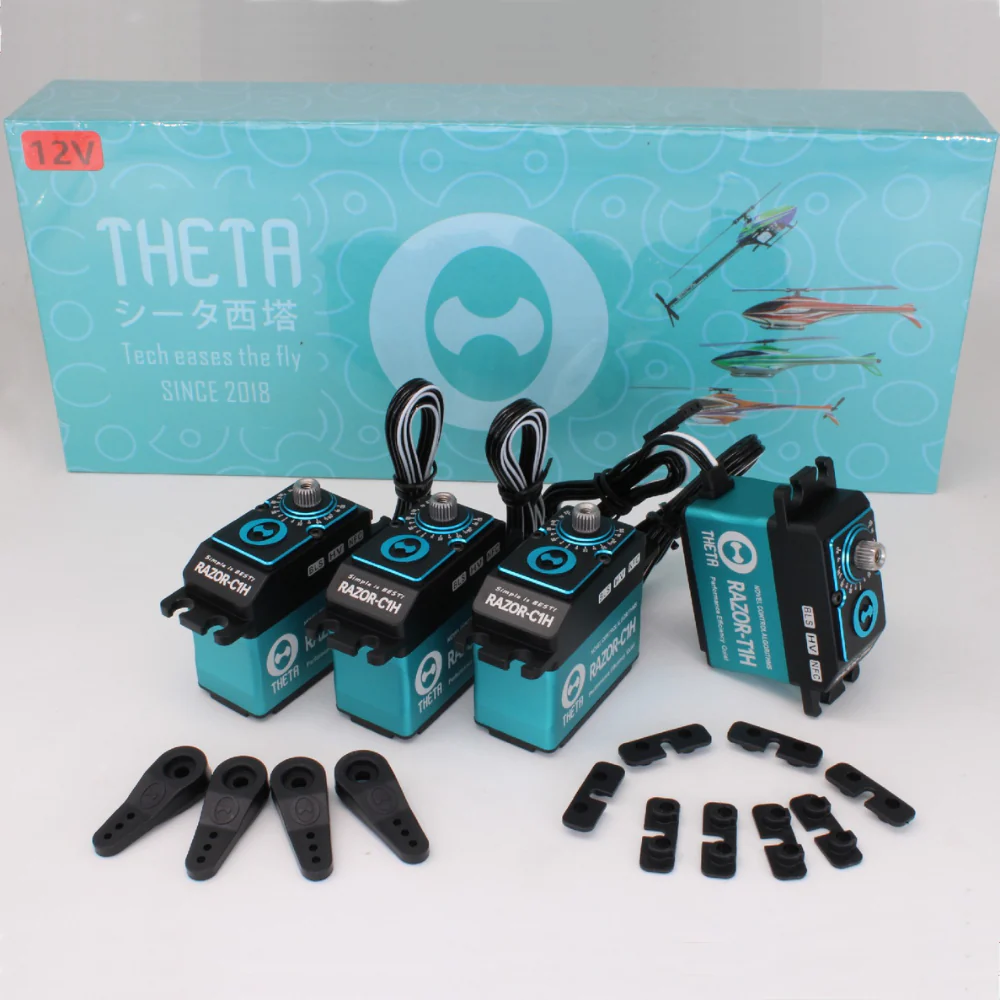

THETA RAZOR-C1H/T1H Metal Brushless NFC HV STD Servo Set

THETA RAZOR-C1H/T1H, a high-performance Metal Brushless NFC HV Standard Servo. This servo is engineered to be Ultra Quiet, Super Duty, and Energy Saving, making it an ideal choice for demanding applications.

It features a wide operational frequency range (50-1000Hz) and supports both 1520us (Wide) and 760us (Narrow) neutral pulse widths,  making it the perfect choice for high-performance RC models.

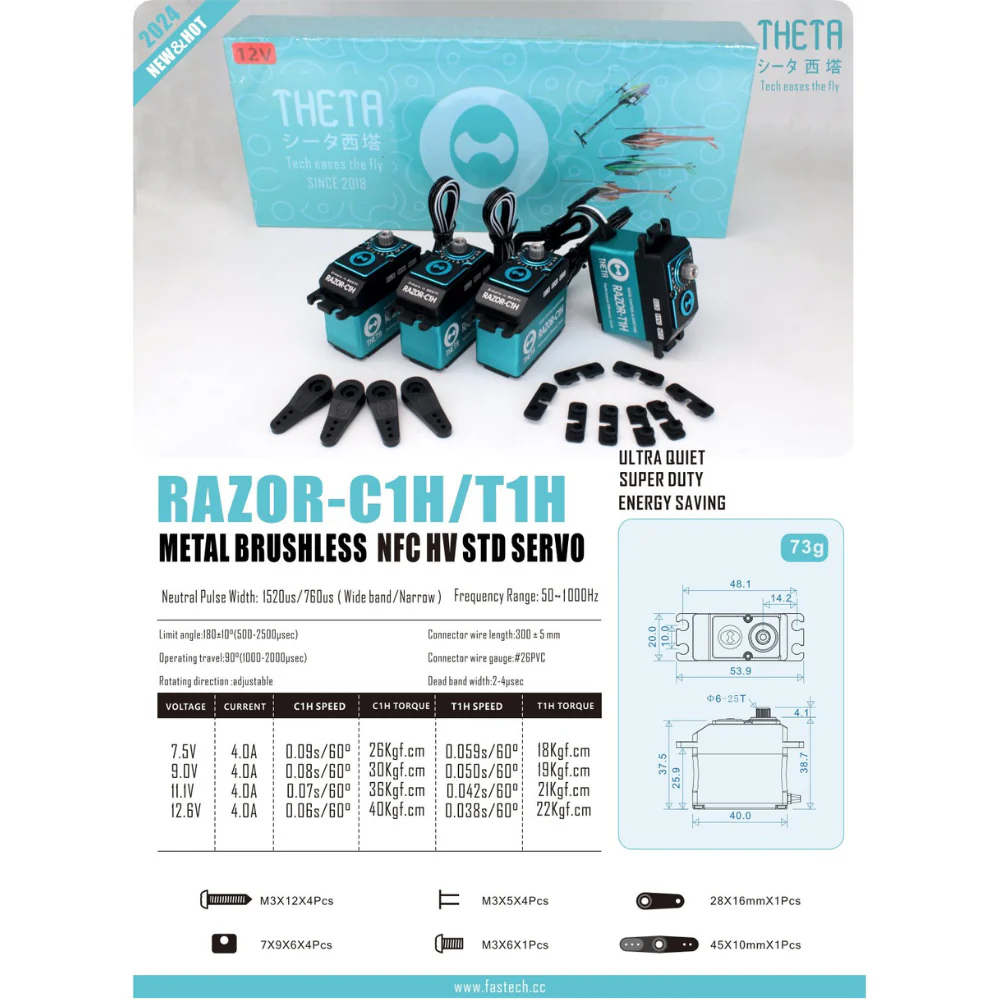

Specifications:

• Type: Metal Brushless NFC HV STD Servo
• Weight: 73g

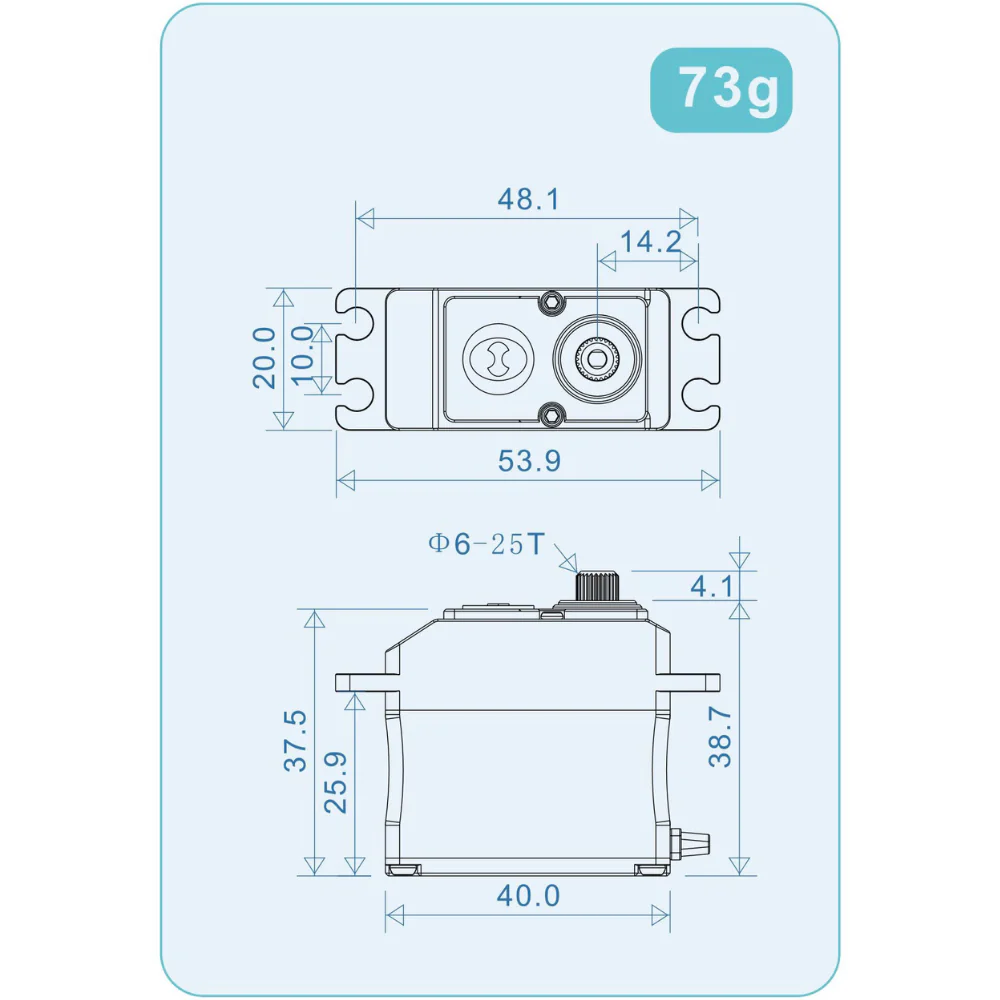

• Dimensions: 40.0 x 20.0 x 38.7mm
• Neutral Pulse: 1520us / 760us (Wide/Narrow)
• Frequency Range: 50-1000Hz
• Operating Travel: 90° (1000-2000µsec)
• Connector Wire: 300mm, #26PVC

Performance Specs:

VOLTAGE	C1H SPEED	C1H TORQUE	T1H SPEED	T1H TORQUE
7.5V	0.09s/60°	26Kgf.cm	0.059s/60°	18Kgf.cm
9.0V	0.08s/60°	30Kgf.cm	0.050s/60°	19Kgf.cm
11.1V	0.07s/60°	36Kgf.cm	0.042s/60°	21Kgf.cm
12.6V	0.06s/60°	40Kgf.cm	0.038s/60°	22Kgf.cm

Package includes:
