Scorpion Tribunus III HV-180A ESC SBEC
The Tribunus III HV-180 ESC marks a new era of electronic speed controllers from Scorpion Power Systems. Utilizing all Western Components and manufactured in Taiwan, this next generation ESC delivers exceptional capabilities with significant improvements over our previous models. Combining our proprietary and unique design, with our proprietary motor control algorithm, we provided one of the most reliable, safe, capable, and intelligent ESC's on the market for your hobby aircraft or industrial UAV.
*This ESC can operate up to 70V without voiding the warranty*
*Disclaimer*
The 180A HV speed control is rated for upto 70V (16s)! It is not a replacement for the 220A -150A Tribunus III models. These speciality offerings are geared towards the most demanding of competitive power systems in which 95% of everyday hobby pilots will not need!:with commercial UAV demand, we opted to offer these specialty speed controls to our top tier competition consumers.
Specifications
| Max Continuous Current* | 180 Amps |
| Peak Current | 250 Amps |
| Operating Voltage Range | 13-70 Volts |
| BEC Output voltage: | OFF / 5.1V to 12.1V adjustable |
| Max Continuous BEC Output | 15 Amps @ 8.1 V |
| Peak BEC Output | 30 Amps/1s @ 8.1 V |
| On Resistance | 0.55mOhms*2 |
| ESC Body Size | 46.1 x 80.7 x 32.3 mm (1.81 x 3.17 x 1.27 in) |
| Mounting Tab Dimensions | 26.0 x 89.0mm ( 1.02 x 3.50 in) / M3 Bolt |
| Weight (without wires) | 194g ( 6.84oz) |
| Weight (With wires) | 294g ( 10.37oz) |
| Drive frequency | 8kHz - 32kHz Dynamic Frequency |
| Cable size | 8 AWG x 200mm |
| Max Electrical RPM | 240,000RPM |
| *Max Continuous Current is the rating at 100% throttle for 60 seconds with 35m/s of airflow | |

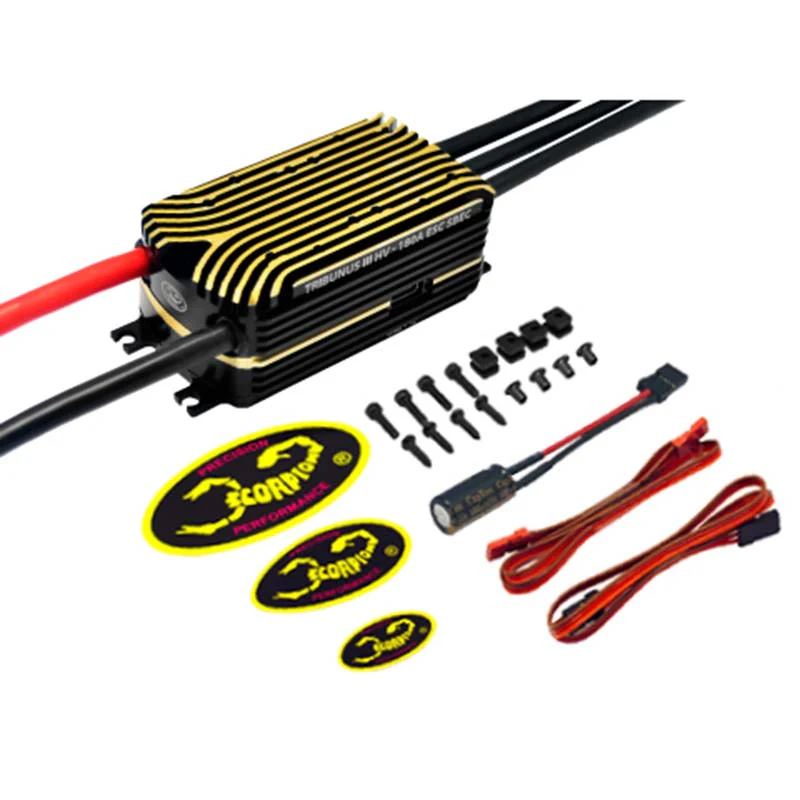

Included in the Box
1 x Tribunus III ESC
2 x BEC Cables (410mm)
1 x Mounting Hardware Pack
1 x BEC Voltage Stabilizing Capacitor
Weight including packaging
610g
Original: $659.99
-65%$659.99
$231.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Tribunus III HV-180 ESC marks a new era of electronic speed controllers from Scorpion Power Systems. Utilizing all Western Components and manufactured in Taiwan, this next generation ESC delivers exceptional capabilities with significant improvements over our previous models. Combining our proprietary and unique design, with our proprietary motor control algorithm, we provided one of the most reliable, safe, capable, and intelligent ESC's on the market for your hobby aircraft or industrial UAV.
*This ESC can operate up to 70V without voiding the warranty*
*Disclaimer*
The 180A HV speed control is rated for upto 70V (16s)! It is not a replacement for the 220A -150A Tribunus III models. These speciality offerings are geared towards the most demanding of competitive power systems in which 95% of everyday hobby pilots will not need!:with commercial UAV demand, we opted to offer these specialty speed controls to our top tier competition consumers.
Specifications
| Max Continuous Current* | 180 Amps |
| Peak Current | 250 Amps |
| Operating Voltage Range | 13-70 Volts |
| BEC Output voltage: | OFF / 5.1V to 12.1V adjustable |
| Max Continuous BEC Output | 15 Amps @ 8.1 V |
| Peak BEC Output | 30 Amps/1s @ 8.1 V |
| On Resistance | 0.55mOhms*2 |
| ESC Body Size | 46.1 x 80.7 x 32.3 mm (1.81 x 3.17 x 1.27 in) |
| Mounting Tab Dimensions | 26.0 x 89.0mm ( 1.02 x 3.50 in) / M3 Bolt |
| Weight (without wires) | 194g ( 6.84oz) |
| Weight (With wires) | 294g ( 10.37oz) |
| Drive frequency | 8kHz - 32kHz Dynamic Frequency |
| Cable size | 8 AWG x 200mm |
| Max Electrical RPM | 240,000RPM |
| *Max Continuous Current is the rating at 100% throttle for 60 seconds with 35m/s of airflow | |
Included in the Box
1 x Tribunus III ESC
2 x BEC Cables (410mm)
1 x Mounting Hardware Pack
1 x BEC Voltage Stabilizing Capacitor
Weight including packaging
610g
