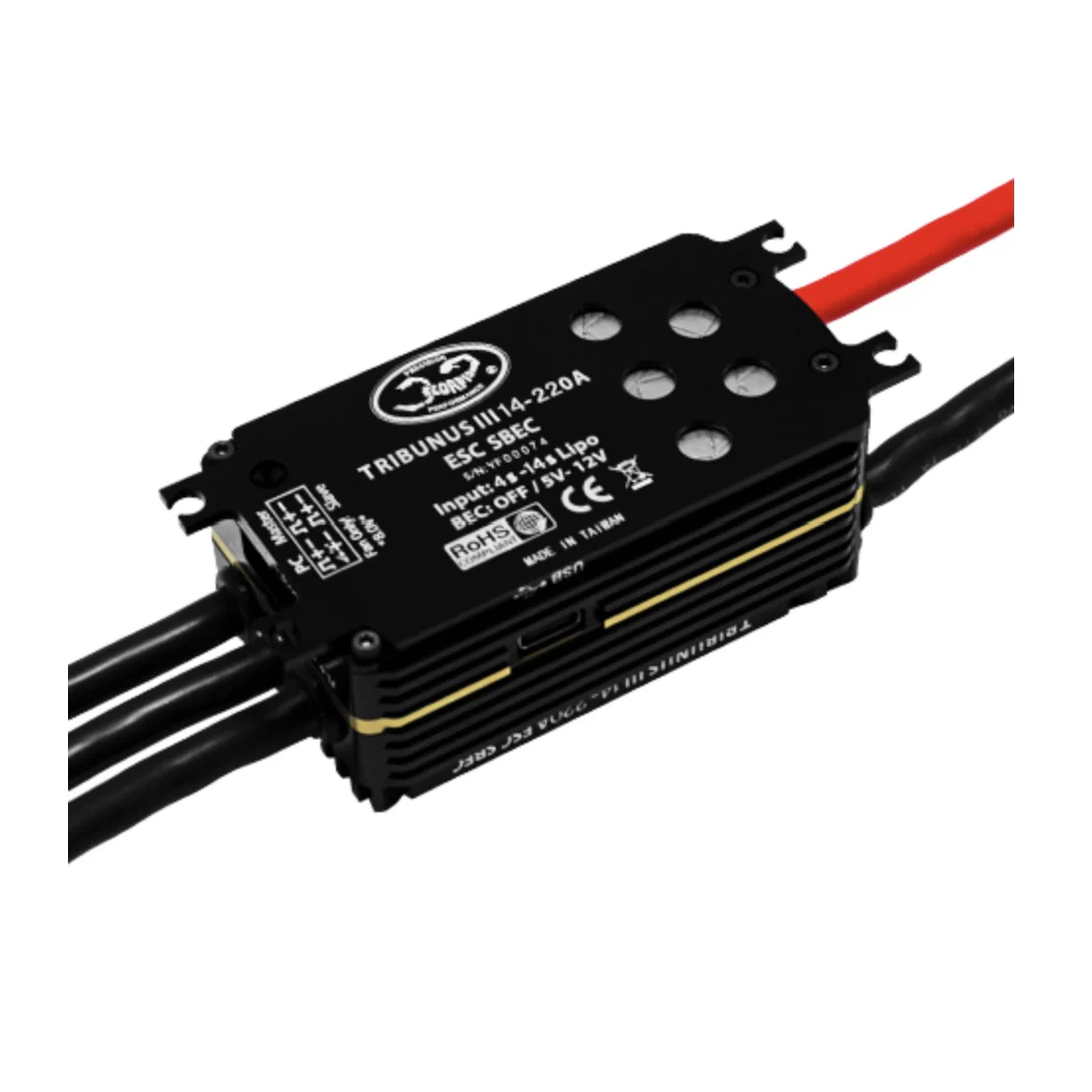

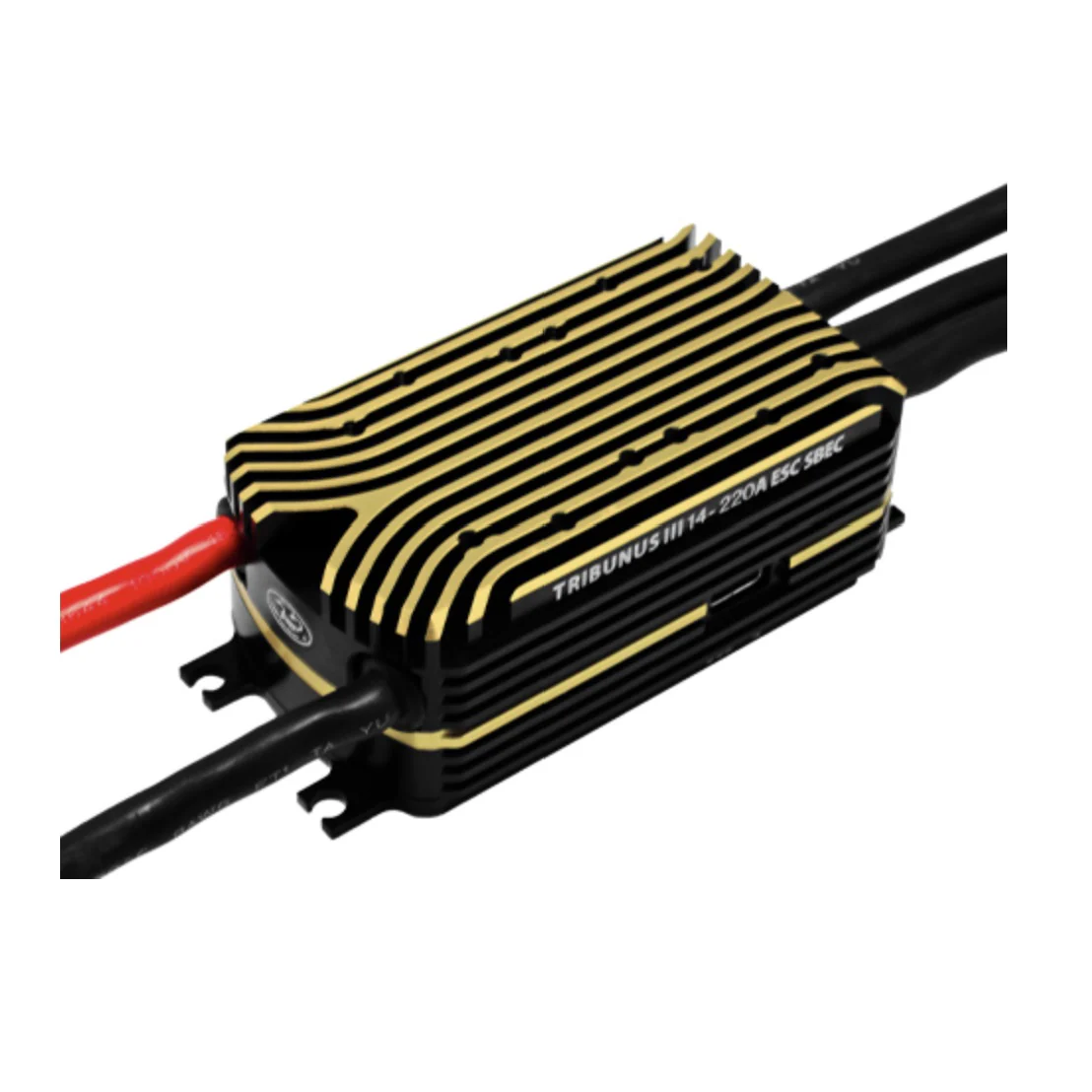

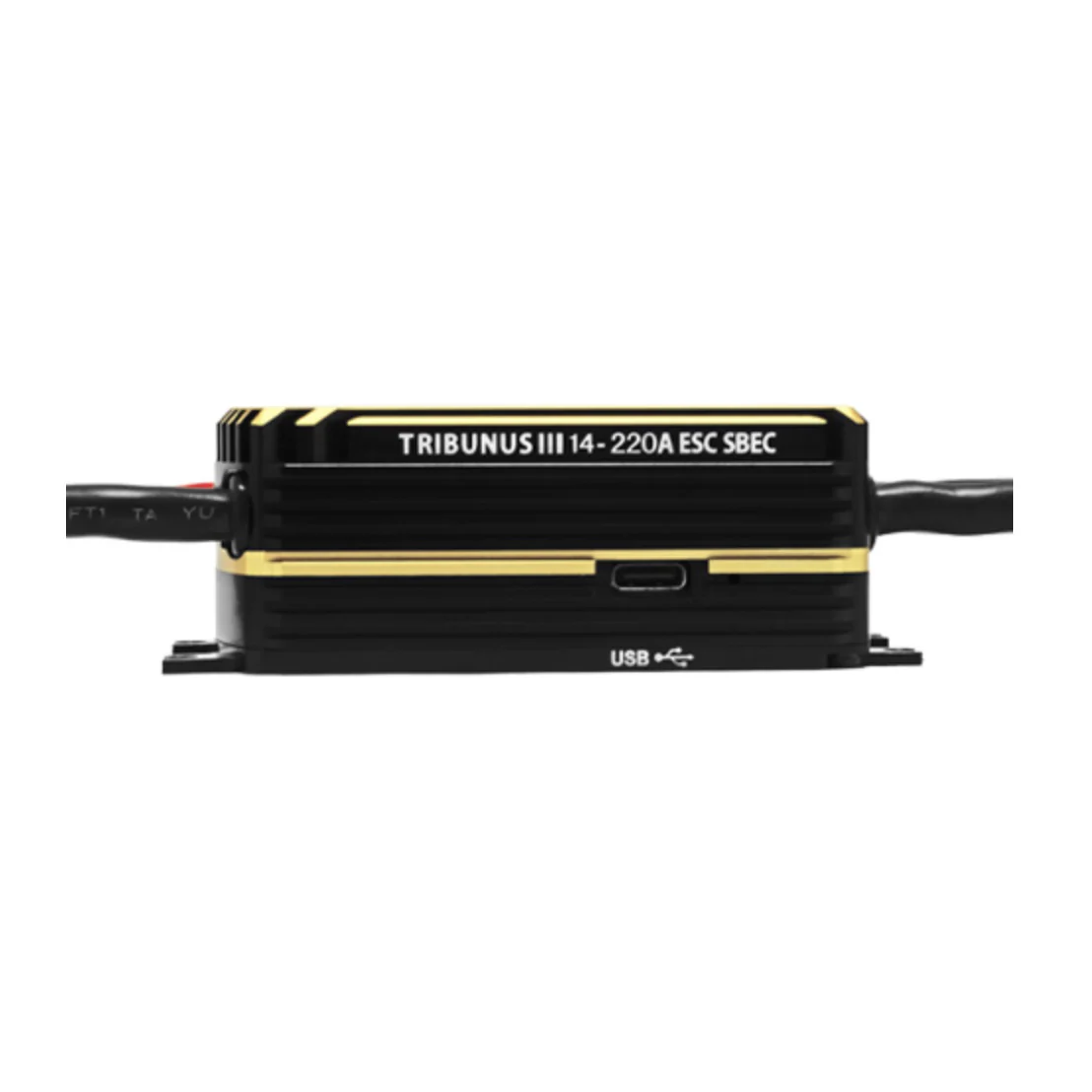

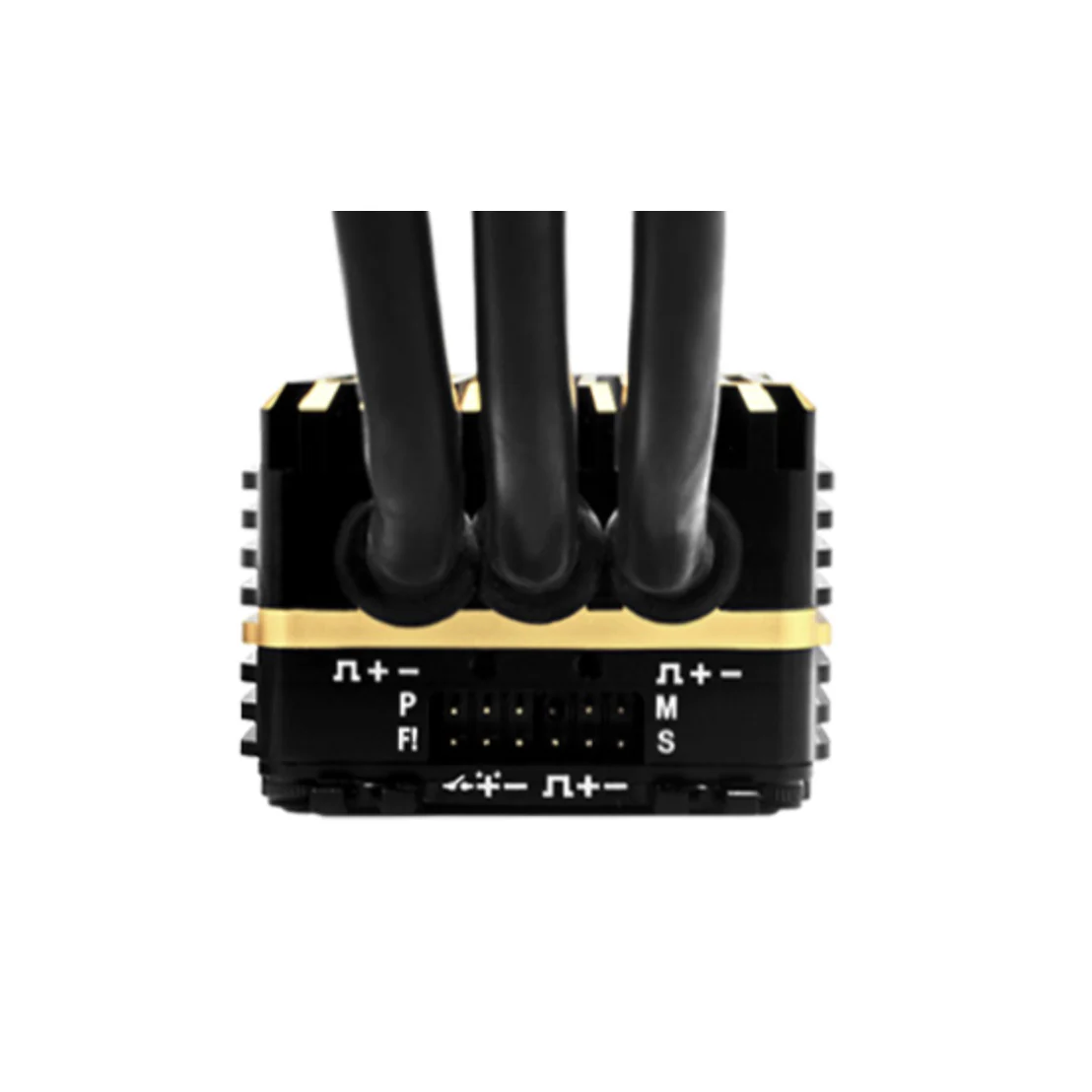

Scorpion Tribunus III 14-220A ESC SBEC
The Tribunus III 14-220A ESC marks a new era of electronic speed controllers from Scorpion Power Systems. Utilizing all Western Components and manufactured in Taiwan, this next generation ESC delivers exceptional capabilities with significant improvements over our previous models. Combining our proprietary and unique design, with our proprietary motor control algorithm, we provided one of the most reliable, safe, capable, and intelligent ESC's on the market for your hobby aircraft or industrial UAV.
Full Dimension
Specifications
| Max Continuous Current* | 220 Amps |
| Peak Current | 300 Amps |
| Operating Voltage Range | 13-61 Volts |
| BEC Output voltage: | OFF / 5.1V to 12.1V adjustable |
| Max Continuous BEC Output | 15 Amps @ 8.1 V |
| Peak BEC Output | 30 Amps/1s @ 8.1 V |
| On Resistance | 0.55mOhms*2 |
| ESC Body Size | 46.1 x 80.7 x 32.3 mm (1.81 x 3.17 x 1.27 in) |
| Mounting Tab Dimensions | 26.0 x 89.0mm ( 1.02 x 3.50 in) / M3 Bolt |
| Weight (without wires) | 194g ( 6.84oz) |
| Weight (With wires) | 294g ( 10.37oz) |
| Drive frequency | 8kHz - 32kHz |

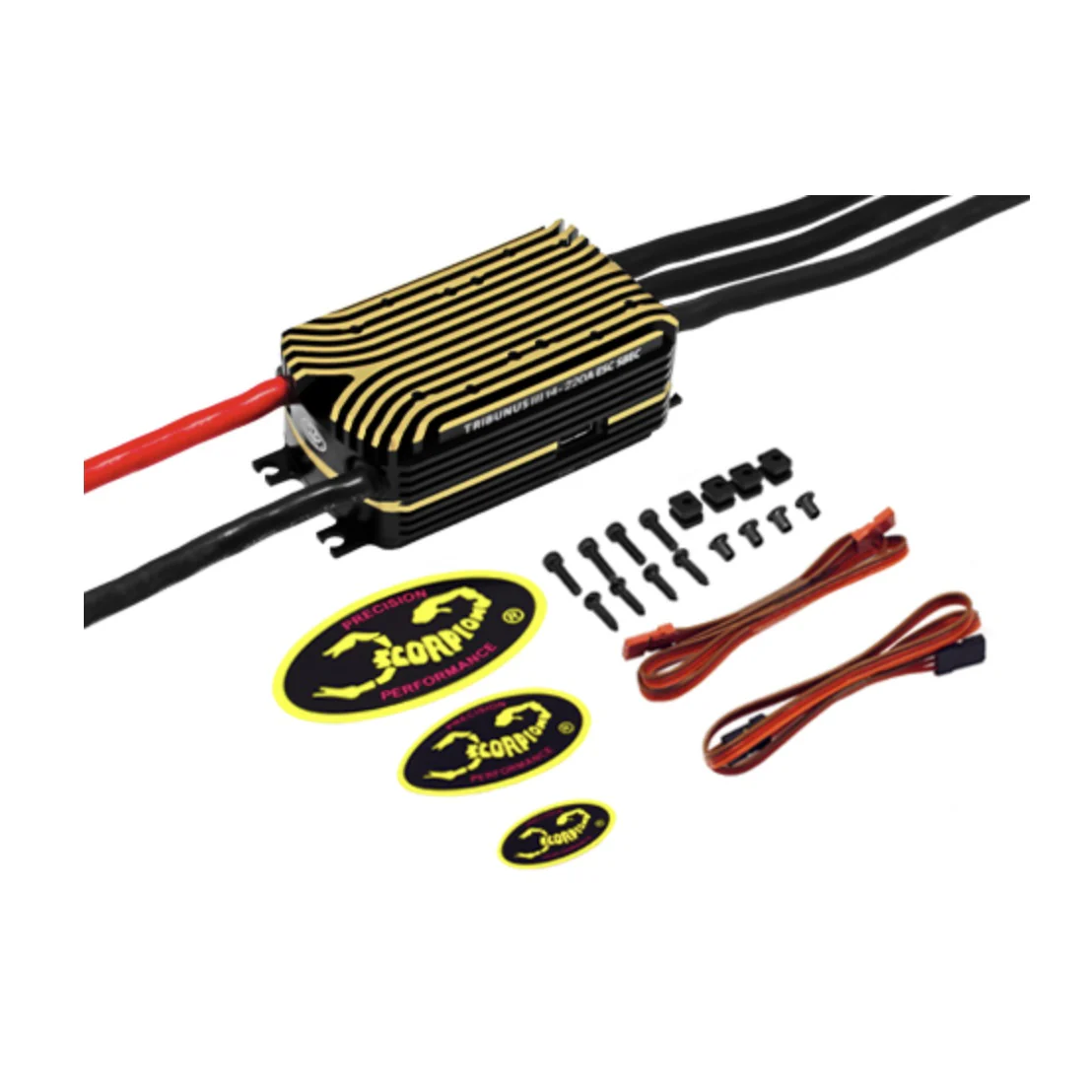

Included in the Box
1 x Tribunus III ESC
2 x BEC Cables (410mm)
1 x Mounting Hardware Pack
1 x BEC Voltage Stabilizing Capacitor
Weight including packaging
400g
Original: $524.99
-65%$524.99
$183.75Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Tribunus III 14-220A ESC marks a new era of electronic speed controllers from Scorpion Power Systems. Utilizing all Western Components and manufactured in Taiwan, this next generation ESC delivers exceptional capabilities with significant improvements over our previous models. Combining our proprietary and unique design, with our proprietary motor control algorithm, we provided one of the most reliable, safe, capable, and intelligent ESC's on the market for your hobby aircraft or industrial UAV.
Full Dimension
Specifications
| Max Continuous Current* | 220 Amps |
| Peak Current | 300 Amps |
| Operating Voltage Range | 13-61 Volts |
| BEC Output voltage: | OFF / 5.1V to 12.1V adjustable |
| Max Continuous BEC Output | 15 Amps @ 8.1 V |
| Peak BEC Output | 30 Amps/1s @ 8.1 V |
| On Resistance | 0.55mOhms*2 |
| ESC Body Size | 46.1 x 80.7 x 32.3 mm (1.81 x 3.17 x 1.27 in) |
| Mounting Tab Dimensions | 26.0 x 89.0mm ( 1.02 x 3.50 in) / M3 Bolt |
| Weight (without wires) | 194g ( 6.84oz) |
| Weight (With wires) | 294g ( 10.37oz) |
| Drive frequency | 8kHz - 32kHz |
Included in the Box
1 x Tribunus III ESC
2 x BEC Cables (410mm)
1 x Mounting Hardware Pack
1 x BEC Voltage Stabilizing Capacitor
Weight including packaging
400g
