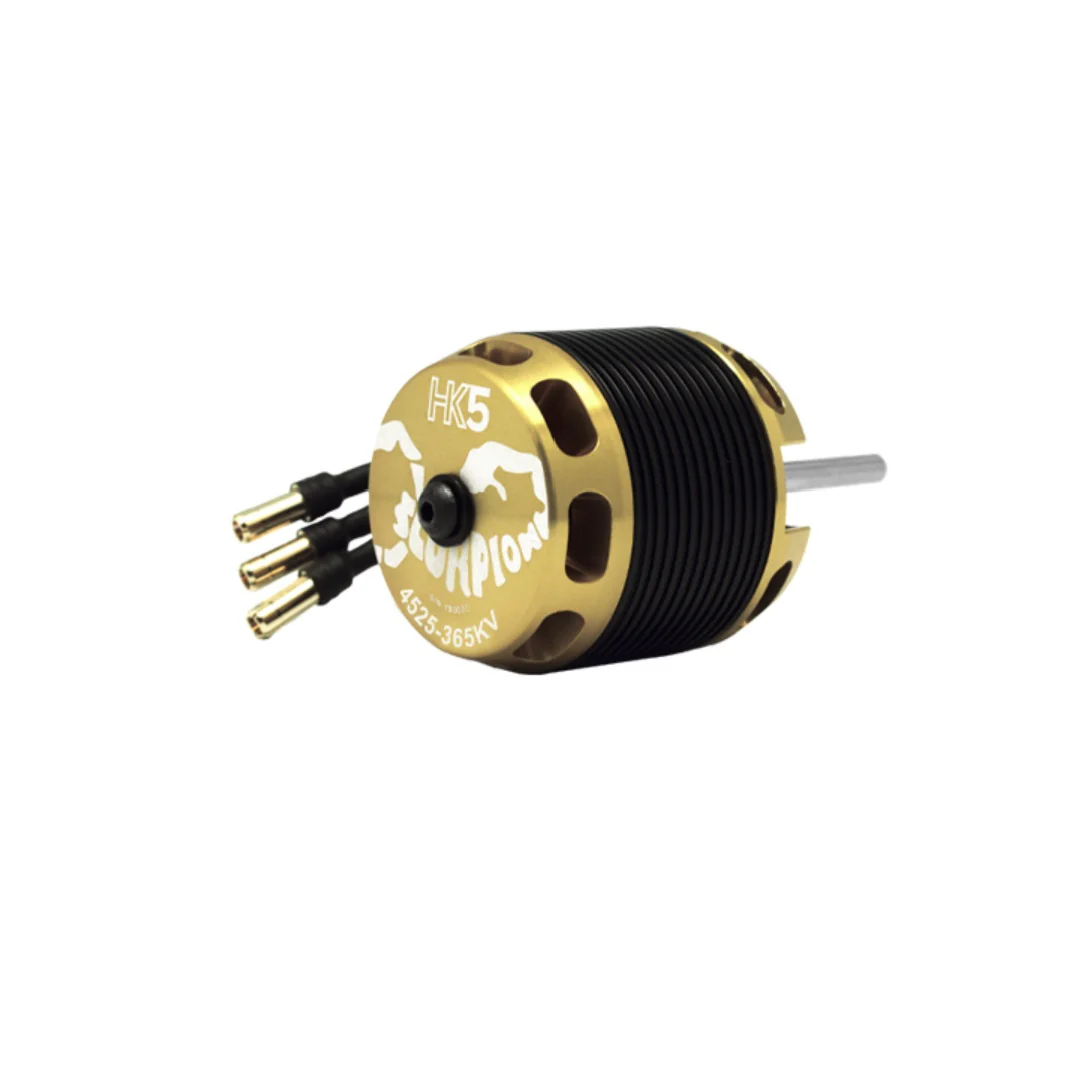

Scorpion HK5-4525-365kv (6x36mm shaft)
Product Description
We introduce the fifth generation of Scorpion's renowned and award winning "HK - Series" motors. The Scorpion "HK5 - Series"
The HK5 Series lives up to and exceeds our standards of the most Powerful and Efficient motors, with market leading Torque per Amp capabilities. In addition, on the HK5 series we focused specifically on motor cooling and motor temperature. With an all new Internal Fan design, combined with our proven external centrifugal fan, we have nearly doubled the amount of airflow passing through the motor. The result is much improved cooling, and cooler operating temperatures.
The HK5-4525-535kv is designed for low power 700 size helicopters (such as F3C) on 12s lipo, or other UAV application requiring up to 10,200w of power.
Specifications
- Motor Kv 365KV RPM/Volt
- Weight 532 Grams ( 18.76oz)
- Motor Body Dimensions 57.5 mm x 61.5mm (2.26" x 2.42")

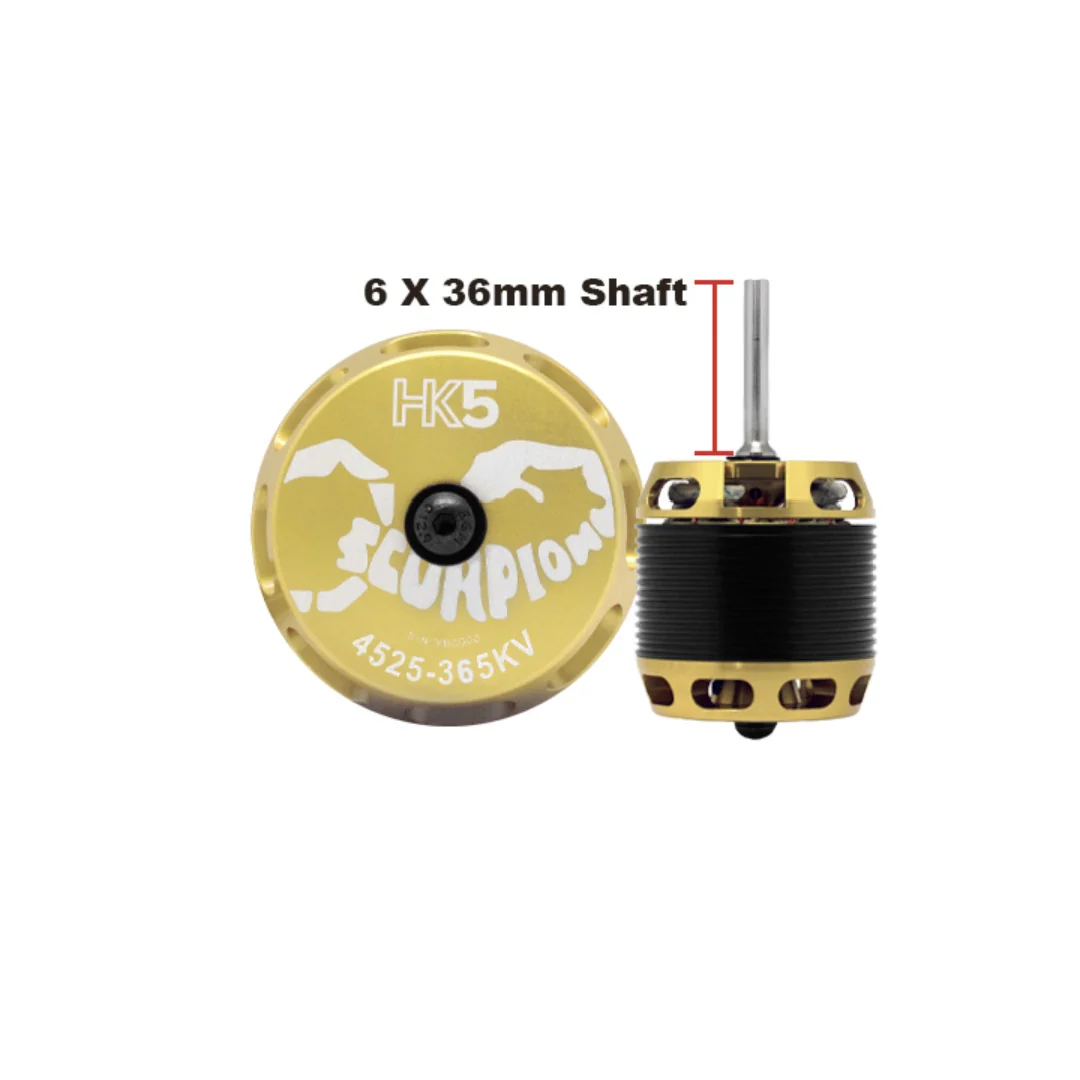

- External Shaft Dimensions 5.98mm x 36mm (0.235" x 1.41")
- Continuous Current 80 Amps
- Continuous Power 5106 Watts
- Peak Current 160A (2 seconds)
- Peak Power 10200 Watts (2 seconds)
- Max Lipo Cell 12s - 16s
- Stator Diameter 45 mm (1.57 in)
- Stator Thickness 25 mm (1.18 in)
- No. of Stator Arms 12
- No. of Stator Poles 10
- Motor Wind 8T YY
- Motor Wire 1.12mm

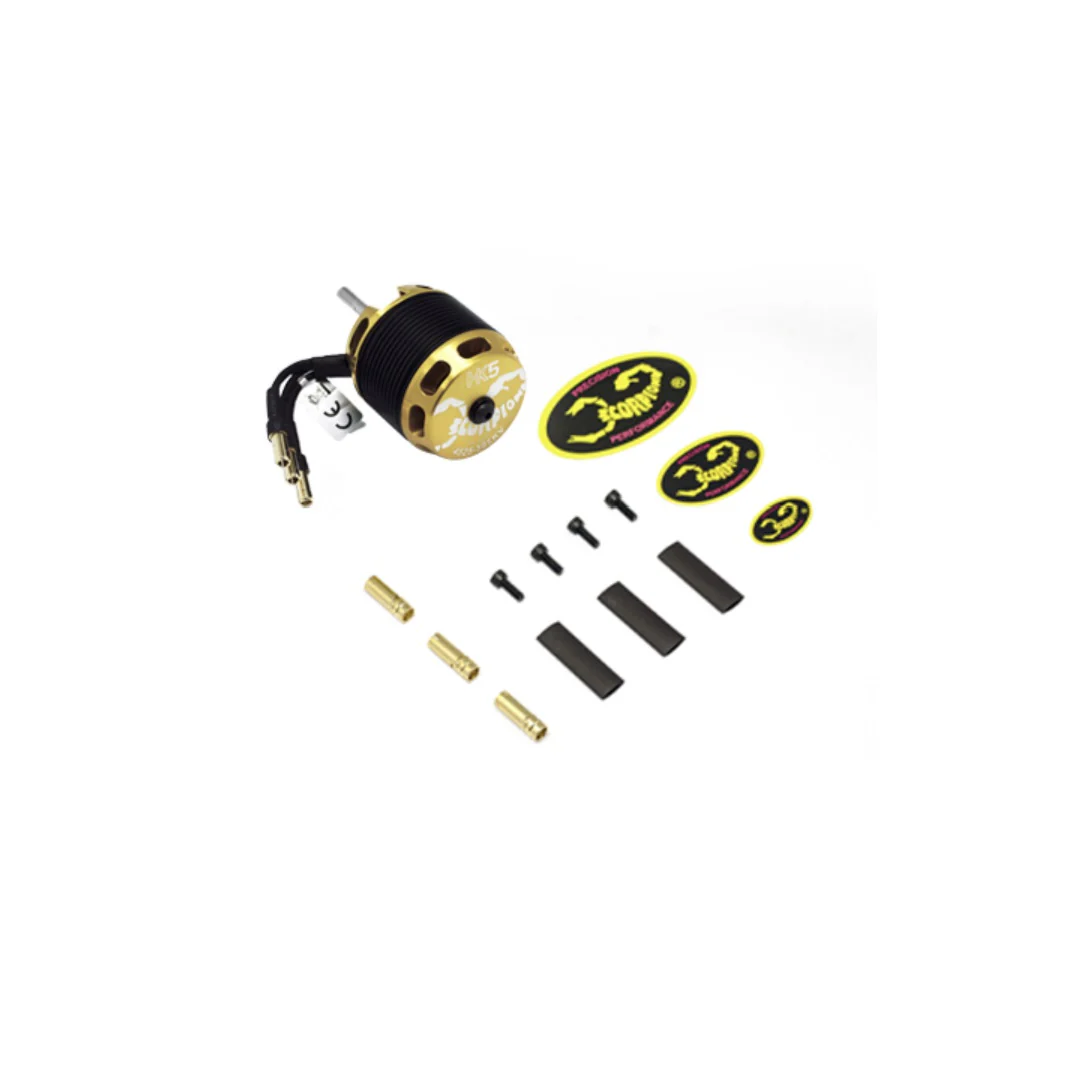

Included in the Box
1 x Scorpion HK5-4525-535kv BLDC Motor
3 x 6mm Female Bullet Connectors + Heat Shrink
1 x Hardware pack (M4 Bolts)
Weight including packaging
780g
