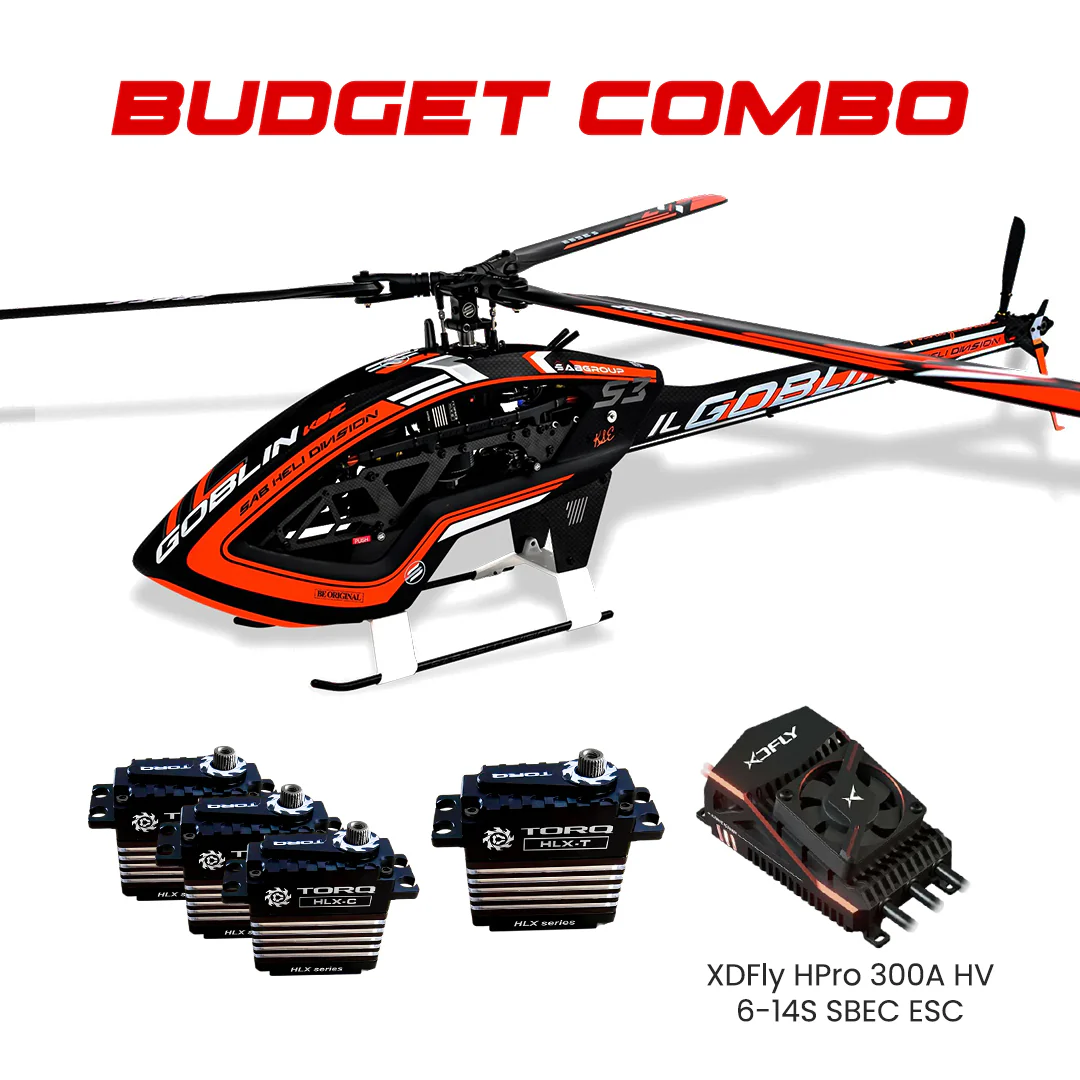

SAB IlGoblin KSE Combo With Torq HLX Black Edition Servo & XDFly HPro 300A ESC

*** Package Includes:
1* SAB IlGoblin KSE
1* Torq HLX Black Edition Full Size Tail Servo
3* Torq HLX Black Edition Fullsize Cyclic Servo
1* XDFly HPro 300A HV 6-14S SBEC ESC

1. SAB IlGoblin KSE:
*** Specifications:
- AIRFRAME weight: 2272 gr (no blades, no battery, no electronics)
- Main rotor diameter: 1560 mm (with 682 mm main blades)
- Main blades length: 682 mm (3 Blades)
- Tail rotor diameter: 296 mm (with 110 mm tail blades)
- Tail blades length: 110 mm (3 Blades)
- Cyclic Servos: Standard size 40 mm
- Tail Servo: Standard size 40 mm
- Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1)
- Tail Rotor Ratio: 5.1-4.9:1 (26T included: 4.9:1)
- Main shaft: 15 mm, Tail shaft: 8 mm
- Molded carbon tail boom
- Typical motor: 12S, 480/560 KV
- Battery room: 50x60x300 mm
*** KIT Includes:
- 21T motor pulley (other pulley sizes available).
- 2 battery trays with integrated connectors.
- S6823-O Orange (682 mm main blades).
- S1103-O Orange (110 mm tail blades)

2. Torq HLX Black Edition Full Size Tail Servo
*** Features:
- Using the newest Hall Sensor Technology
- Blistering 0.035 Second Transit Speed
- Dedicated Helicopter Rudder Servo
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Newly Design Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via Finned 6061 Aluminum Case
- 8.4V High Voltage Ready
- Optimized for High Demand Rudder Control
- 6 Ball Bearings Construction

Speed:
0.03 sec / 60° @ 8,2V
0.035 sec / 60° @ 7.4V
0.04 sec / 60° @ 6.0V

Torque:
13.0Kg.cm / 180,53 oz. in. @ 8.2V
11.0Kg.cm / 152,76 oz. in. @ 7.4V
9.0Kg.cm / 124,98 oz. in. @ 6.0V

*** Specifications:
- Motor Type: Brushless
- Servo Arm Type: Futaba
- Working Pulse Width / Frequency: 760us / 560Hz 450us-1050us
- Weight: 80g
- Dimensions: 40mm x 20mm x 40mm (LxWxH)
- Voltage Range: 6.0V - 8.4V

3. Torq HLX Black Edition Fullsize Cyclic Servo:
*** Features:
- Using the newest Hall Sensor Technology
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Fully New Design Steel Gear Train for Maximum Strength
- 8.4V High Voltage Ready
- Optimized for Heli, Airplane & Jet Aircraft
- 6 Ball Bearings Construction

Speed:
0.07 sec / 60° @ 8.2V
0.09 sec / 60° @ 7.4V
0.11 sec / 60° @ 6.0V

Torque:
35Kg.cm / 486,05 oz in. @ 8.2V
30Kg.cm / 416,62 oz in. @ 7.4V
24Kg.cm / 333,29 oz. in. @ 6.0V

*** Specifications:
- Motor Type: Brushless
- Servo Arm Type: Futaba
- Working Frequency: 1520us / 333Hz ; 760us / 560Hz (need the TBOX Program Card)
- Weight: 80g
- Dimensions: 40mm x 20mm x 40mm (LxWxH)
- Voltage Range: 6.0V - 8.4V

4. XDFly HPro 300A HV 6-14S SBEC ESC:
*** Key Features:
- Equipped with high-performance 32-bit G4 processor with operating frequency of up to 170MHz.
- Adopting new generation of power MOSFET, it features low heat generation, high instantaneous current endurance and high reliability.
Self-check function: After power-on, the ESC will automatically self-check for power supply short circuit, motor phase loss, throttle zeroing, and voltage range.
- The special and unique case design greatly increase the heat dissipation area and significantly enhance the heat dissipation performance of the ESC.
- The smart temperature controlled fan will only start when the temperature exceeds 40 degrees, ensuring a quiet environment during the adjustment.
- With helicopter speed governor function, the constant speed sensitivity can be adjusted and is easy to operate.
- Equipped with the time selection function for stall landing, it can be manually adjustable within the time set to avoid a crash due to handling errors.
- The ESC has an independent programming interface, it supports parameter adjustment via Phone APP/Mikado VBCT/E/Rotorflight2/Jeti remote control devices.
- With telemetry function for Mikado VBCT/E, Rotorflight2, Futaba SBUS2, Jeti, MSH Brain, and iKon, allowing users to check data in real time.
- Equipped with colorful LED lights including five optional colors for users: red, green, blue, yellow, and white, which indicate the ESC status through flashing modes.
- Multiple protections: abnormal power-on voltage, start-up, temperature, throttle signal loss, over-load, low-voltage, over-current.

*** Product Specification:
Model: HPro 300A HV SBEC
Continuous/Peak Current: 300A/400A
Input voltage: 6-14S Lipo Battery
BEC Output: 6-12V adjustable (adjusted 0.2V); Current cont. 10A, Peak 35A
Power Wires: 8AWG 205 mm (Red*1/Black*1)
Motor Wires: 10AWG 150mm(Black*3)
Programming Way: XDFly Android & iOS APP/VBCT/E/RF2/Jeti
Size: 95x57x38mm(Without fan);95x57×42mm(With fan)
Weight: 320g
LED Light: Five colors adjustable(red,green,blue,yellow,white) and display the statuses and error alerts
Applications: 700-800 class electric helicopters (main rotor length 700-880mm), or fixed-wing aircrafts

*** Important Warnings:
- Always place safety as priority when you use the product.
- An electric motor that is connection with battery pack and ESC may start unexpectedly and cause serious danger.
- Always treat a powered system with respect.
- Always remove the propeller or disengage the pinion gear before the battery connected if you need to working on a plane or helicopter at short range.
- Please observe all local laws regarding the flying of remote control aircraft.
- Never fly over or near crowds.
