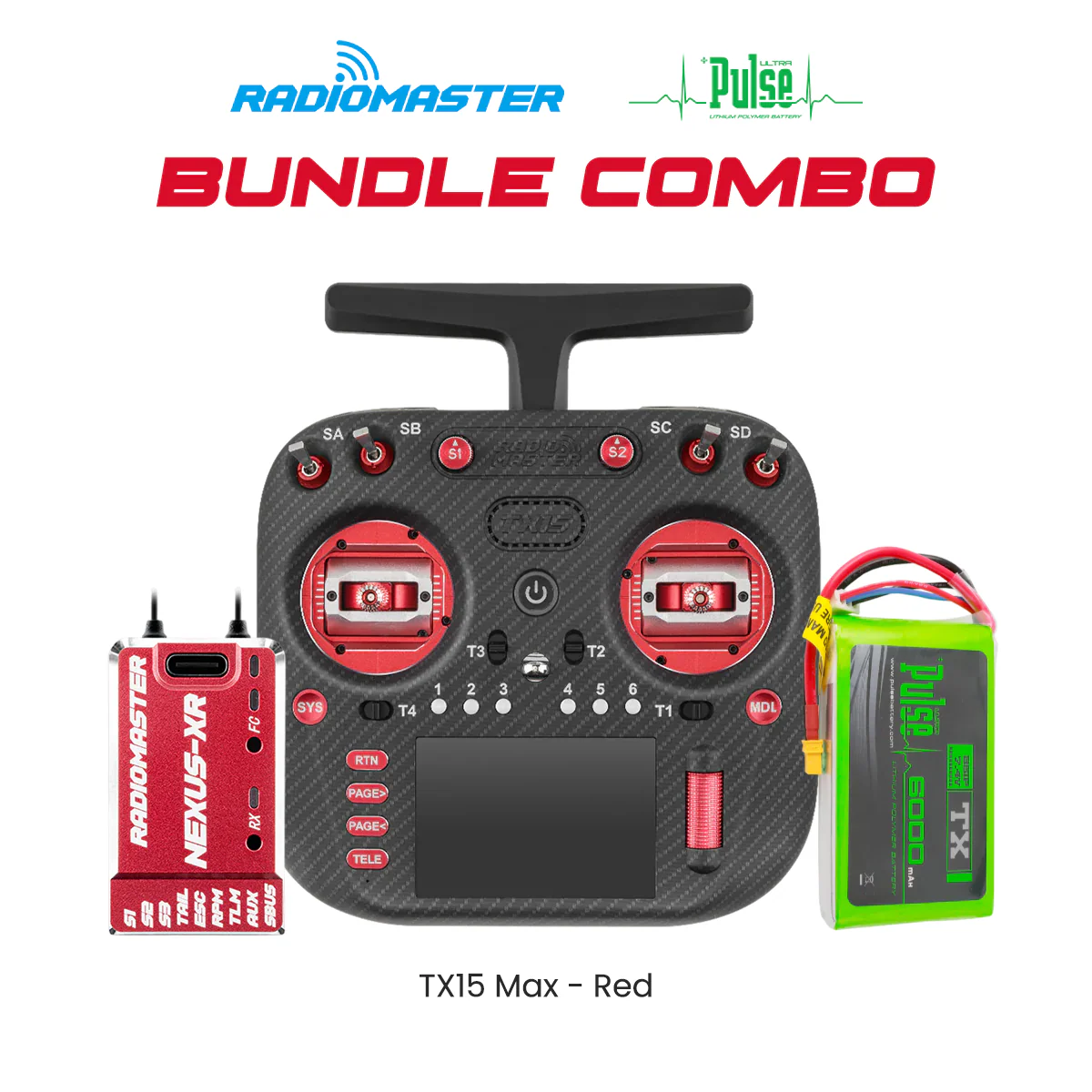

RadioMaster TX15 Max (Red) ExpressLRS Transmitter with Nexus XR Red Helicopter Flight Controller ELRS Receiver and Pulse 6000mAh 2S LiPo Battery Bundle

*** PACKAGE INCLUDES:
1* RadioMaster TX15 Max Radio Controller ExpressLRS / M2 - Red
1* RadioMaster Nexus-XR Helicopter Flight Controller Integrated 2.4GHz ExpressLRS Receiver - Red
1* Pulse 6000mAh Transmitter 2S 7.4V LiPo Battery For RadioMaster Boxer and TX16s

1. RadioMaster TX15 Max Radio Controller ExpressLRS / M2 - Red:
*** Features:
- Blazing-Fast Performance: The STM32 H7 chip powers our fastest radio ever.
- Touchscreen Display: 3.5-inch, 480 x 320 IPS touchscreen with vivid colors and sharp detail.
- Precision Gimbals: the premium AG02 gimbals for enhanced smoothness.
- Built-in ExpressLRS: 2.4GHz / 900MHz ExpressLRS integration for reliable and long-range control.
- Smart Balance Battery Circuit: Maximizes battery efficiency and longevity for more flight time.
- Powerful, Cooling System: Low noise, high output fans and an aluminium heat sink keep your radio cool even on the hottest days.
- AG02 Gimbal: More than 20% reduced weight, with adjustable travel on both vertical and horizontal axis.
- Customizable RGB Gimbal Light- Ring: Integrated RGB LED lights around the gimbals allow customizable LUA-controlled lighting.
- Foldable Antenna: Compact and easy to store without compromising signal strength.
- Built-in Microphone: For future feature expansion.
- Built-in Gyro: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.
- Memory: Integrated 4GB of onboard flash memory and external MicroSD card support.
- Interchangeable Shoulder Switches: Customize your controls to match your flying style.

*** Specifications:
- Item: TX15 Max Radio Controller
- Size: 178*168*81mm
- Weight: 672g (without battery)
- Color: Red/ Black/ Gold
- Frequency: 2.400GHz OR Sub-G 900MHz
- Internal RF: ELRS 2.4GHz / Sub-G 900MHz
- Supported Protocols: Express-LRS
- Cooling Fan: Yes
- Transmitter Module: Built-in ELRS
- Built-in Flash Size: 4GB
- Built-in Microphone: Yes (Future expansion)
- Built-in Gyro: Yes (ICM-42607-C)
- MicroSD card* (Not included): 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash)
- Antenna Gain: 2dB (transmit power adjustable)
- Current: 875mA at max power output
- Voltage Range: 6.6 - 8.4V DC
- Radio Firmware: EdgeTX (Transmitter) (requires version 3.0.0 or later)
- Module Firmware: ExpressLRS
- Channels: Max 16 channels (Receiver dependent)
- Display: 3.5-inch IPS touchscreen (480 x 320 resolution)
- Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included)
- Connectivity: USB-C
- Gimbals: AG02 CNC Hall sensor gimbals
- Gimbal Sticks: M4
- Upgrade Method: USB-C (UF2)
- Module Bay: JR-compatible module bay for additional modules

 *** Package Includes
1 * TX15 Max Radio Controller
1 * Signature Carry Case
1 * Short 2-position Latching Shoulder Toggle Switch Assembly
1 * Short 2-position Momentary Shoulder Toggle  Switch Assembly
1 * 18650 Battery Tray
1 * USB-C Cable
1 * Screen Protector
1 * 1.5mm Hex Wrench
4 * High Tension Gimbals Springs
2 * Gimbal Stick Set Screw
1 * Stickers Set
1 * User Manual
1 * Inventory Card

2. RadioMaster Nexus-XR Helicopter Flight Controller Integrated 2.4GHz ExpressLRS Receiver - Red:
*** Features:
- Integrated ExpressLRS Receiver: Dual Semtech SX1281 2.4GHz transceivers for seamless RF performance, eliminating the need for an external receiver.
- Optimized for Rotorflight 2.2: Engineered for peak performance and compatibility.
- Precision Control: STM32F722 MCU and ICM42688P 6-axis gyroscope/accelerometer for superior flight dynamics.
- Flight Logging: 256MB onboard flash memory for detailed logging and tuning.
- Dual Antenna Design: Two 65mm wire antennae for superior signal strength and range.
- Versatile Connectivity: Multiple UART ports support CRSF, ELRS, S.BUS, and more.
- More PWM Pins: Additional pins for expanded control in complex setups.
- CNC-Machined Aluminum Case: Sleek, rugged design doubles as a heat sink to keep the system cool.
- Tail Servo/ESC Support: Compatible with 760μs/1520μs tail servos and ESCs.
- 12V Servo Support: Capable of supporting 12-volt servos.
- Wide Voltage Range: Supports 3.6V–70V external power input for flexible setups.
- Improved BEC: Stable, reliable power delivery to electronics for enhanced performance.
- Isolated Power Supplies: Dedicated 1.8V (gyro), 3.3V (MCU), and 5V (interfaces) to minimize noise.
- USB-C Accessibility: Lightweight, flexible USB-C extender cable for easy access in tight builds.
- Compact and Lightweight: Ideal for any helicopter builds.
- Rotorflight Rescue: Standard feature for enhanced safety in emergencies.
- Optional Case Color: Grey / Gold / Red / Blue / Purple.

*** Specification:
- Item: Nexus-XR Helicopter Flight Controller
- Firmware: Rotorflight 2.2
- MCU: STM32F722RET6
- Gyro (IMU): ICM42688P
- Flash Memory (Black Box. IC): 256MB (W25N02KVZEIR)
- Barometer: SPL06-001
- Uart: 5 - S.BUS[UART1], TELEM[UART2], PORT-A[UART4], PORT-B[UART6], PORT-C[UART3]
- Servo: S1, S2, S3, TAIL Servos (Up to 12V )
- Rpm Sensor: 1 - FROM ESC FREQUENCY SENSOR
- AUX: 1
- Ext voltage input (tele): 3.6-70v
- Receiver Support: CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP
- Voltage Supply(DC): 5 - 16V
- A-B-C Serial Port Power Output: 5V - 1.5A
- Telemetry: S.BUS, HoTT, S.Port, MSP, EDGETX, ELRS
- ESC: PWM, Oneshot, Multishot, Dshot
- Support Tail ESC: 760μs / 1520μs Servo
- Support Tail Motor: Yes
- Internal Receiver:  RP4TD-M ExpressLRS 2.4GHz Mini True Diversity Receiver
- MCU: ESP32
- Type: ISM
- RF Chip: SX1281 x 2
- Antenna: 65mm 2.4GHz Wire Antenna x 2
- Frequency Range: 2.4GHz
- Maximum Refresh Rate: 500Hz / F1000Hz
- Telemetry RF Power: Max 2 x 10mW
- Wifi Updates: Yes
- FW Target: RadioMaster RP4TD-M 2400 RX
- Bus interface: CRSF
- Demensions: 44.70 x 26.50 x 14.30mm
- Weight: 24.1g

*** Package Includes:
1 * NEXUS-XR Helicopter Flight Controller
3 * JST-GH 4 Wire pigtail cables
1 * JST-GH to Servo Plug (dupont 3 pin connector)
1 * Ultra light-weight and flexible USB-C extender
1 * Type C extension cable
1 * JST-ZH1.5 "DSM" Telemetry cable (Telemetry only does not support DSM Receivers)
1 * Voltage telemetry wire
3 * 3M double-sided mounting tape
2 * Heat shrink tubing
1 * Inventory Card

3. Pulse 6000mAh Transmitter 2S 7.4V LiPo Battery For RadioMaster Boxer and TX16S:
Utilizing a 6000mah 2S 7.4V LiPo battery dedicated for the RadioMaster Boxer and RadioMaster TX16S, this battery will provide immense flight time with your transmitter, allowing you to simply enjoy flying.

*** Features:
- Pulse 6000mAh Transmitter 2S 7.4V LiPo Battery For RadioMaster Boxer and RadioMaster TX16S
- Dedicated High Performance Transmitter Lipo Battery
- Large Array of Sizes & Voltages, Light Weight & Low Cost
- Charge Rate: 1C - Do Not Attempt Higher Charge Rates
- Applications: RC Transmitter RadioMaster Boxer and RadioMaster TX16s

*** Specifications:
- Voltage | Cell Count : 7.4V 2S Lipo Battery
- Capacity: 6000mAh Lipo Battery
- Dimensions:  85*49.5*20mm(±2mm) (LxWxH)
- Weight:  185g
- Balance Tap: JST-XH Connector
- Battery Connector: XT30 Connector

*** Warning:
This LiPo transmitter battery is intended to power a transmitter only, and is in no way designed for use as a flight power system, such as powering a motor / ESC system. Due to the lower discharge rate and lighter gauge wiring, any use as a flight pack will immediately void the warranty of this LiPo battery, and very well may cause battery failure.

LiPo Safety, Warnings & Guidelines

Please be sure to read and fully understand the below safety guidelines associated with Pulse Ultra Lithium Polymer batteries, and also be sure to select the below hyperlink for a full / complete description of all necessary safety guidelines for all Pulse Ultra LiPo based batteries
