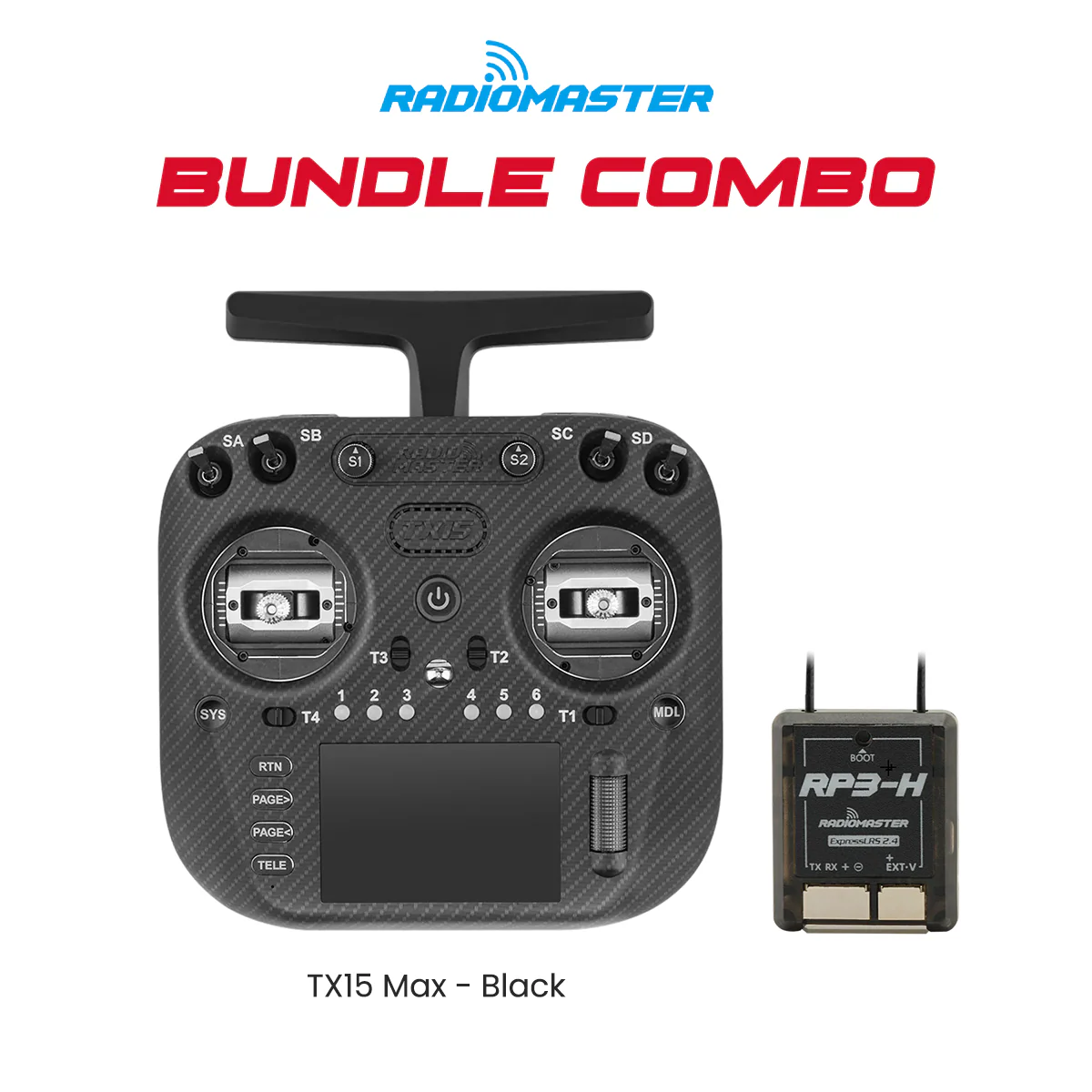

RadioMaster TX15 Max (Black) ExpressLRS Transmitter with RP3 H ELRS Receiver Bundle

*** PACKAGE INCLUDES:
1* RadioMaster TX15 Max Radio Controller ExpressLRS / M2 - Black
1* RadioMaster RP3-H ExpressLRS Receiver

1. RadioMaster TX15 Max Radio Controller ExpressLRS / M2 - Black:
*** Features:
- Blazing-Fast Performance: The STM32 H7 chip powers our fastest radio ever.
- Touchscreen Display: 3.5-inch, 480 x 320 IPS touchscreen with vivid colors and sharp detail.
- Precision Gimbals: the premium AG02 gimbals for enhanced smoothness.
- Built-in ExpressLRS: 2.4GHz / 900MHz ExpressLRS integration for reliable and long-range control.
- Smart Balance Battery Circuit: Maximizes battery efficiency and longevity for more flight time.
- Powerful, Cooling System: Low noise, high output fans and an aluminium heat sink keep your radio cool even on the hottest days.
- AG02 Gimbal: More than 20% reduced weight, with adjustable travel on both vertical and horizontal axis.
- Customizable RGB Gimbal Light- Ring: Integrated RGB LED lights around the gimbals allow customizable LUA-controlled lighting.
- Foldable Antenna: Compact and easy to store without compromising signal strength.
- Built-in Microphone: For future feature expansion.
- Built-in Gyro: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.
- Memory: Integrated 4GB of onboard flash memory and external MicroSD card support.
- Interchangeable Shoulder Switches: Customize your controls to match your flying style.

*** Specifications:
- Item: TX15 Max Radio Controller
- Size: 178*168*81mm
- Weight: 672g (without battery)
- Color: Red/ Black/ Gold
- Frequency: 2.400GHz OR Sub-G 900MHz
- Internal RF: ELRS 2.4GHz / Sub-G 900MHz
- Supported Protocols: Express-LRS
- Cooling Fan: Yes
- Transmitter Module: Built-in ELRS
- Built-in Flash Size: 4GB
- Built-in Microphone: Yes (Future expansion)
- Built-in Gyro: Yes (ICM-42607-C)
- MicroSD card* (Not included): 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash)
- Antenna Gain: 2dB (transmit power adjustable)
- Current: 875mA at max power output
- Voltage Range: 6.6 - 8.4V DC
- Radio Firmware: EdgeTX (Transmitter) (requires version 3.0.0 or later)
- Module Firmware: ExpressLRS
- Channels: Max 16 channels (Receiver dependent)
- Display: 3.5-inch IPS touchscreen (480 x 320 resolution)
- Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included)
- Connectivity: USB-C
- Gimbals: AG02 CNC Hall sensor gimbals
- Gimbal Sticks: M4
- Upgrade Method: USB-C (UF2)
- Module Bay: JR-compatible module bay for additional modules

*** Package Includes:
1 * TX15 Max Radio Controller
1 * Signature Carry Case
1 * Short 2-position Latching Shoulder Toggle Switch Assembly
1 * Short 2-position Momentary Shoulder Toggle  Switch Assembly
1 * 18650 Battery Tray
1 * USB-C Cable
1 * Screen Protector
1 * 1.5mm Hex Wrench
4 * High Tension Gimbals Springs
2 * Gimbal Stick Set Screw
1 * Stickers Set
1 * User Manual
1 * Inventory Card

2. RadioMaster RP3-H ExpressLRS Receiver:
*** Features:
- Perfect for helicopters and any application that needs a rugged cased serial receiver
- Plug'n'play solder free RP3-H ExpressLRS receivers compatible with NEXUS Heli flight controller
- Optimized PCB design for better heat dissipation
- LNA for better receiver range
- PA for better telemetry range
- Antenna Diversity for improved signal stability and range
- Built-in a TCXO (temperature compensated crystal oscillator)
- Automatically detects voltage telemetry of external battery voltage or receiver battery/ESC BEC voltage
- Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

*** Specifications:
- Item: RP3-H ExpressLRS 2.4GHz Nano Receiver
- Type: ISM
- MCU: ESP8285
- RF Chip: SX1281
- Telemetry RF power: Max 100mW
- Antenna: 150mm 2.4GHz Antenna x2
- Frequency Range: 2.404 - 2.479 GHz
- Maximum receive refresh rate: 500Hz / F1000Hz
- Minimum receiver refresh rate: 25Hz
- Working voltage: DC 4.5 - 8.4V
- Battery voltage detection range: DC 4.0 - 35V
- Weight: 5.1g (Including two antenna)
- Dimension: 28mm*24mm*8mm
- Firmware Version: ExpressLRS v3.3.1 pre-installed
- FW Target: RadioMaster RP3-H Diversity 2400 RX
- Bus interface: CRSF/S.Bus

*** RadioMaster RP Series Receivers:
- RP1 ELRS 2.4ghz Nano Receiver
- RP2 ELRS 2.4ghz Nano Receiver
- RP3 ELRS 2.4ghz Nano Receiver
- RP4TD ELRS 2.4ghz Diversity Receiver
- RP3-H ELRS 2.4ghz Nano Receiver

*** Package Includes:
1 * RP3-H ExpressLRS 2.4GHz Nano Receiver
2 * 150mm IPX1 2.4GHz T Antenna (installed)
1 * JST-GH CRSF 4 wire Pigtail
1 * JST-GH 4 wire to JST-GH CRSF cable
1 * JST-GH 4 wire to single Servo pin (single dupont connectors)
1 * Voltage telemetry wire
1 * Quick start guide
