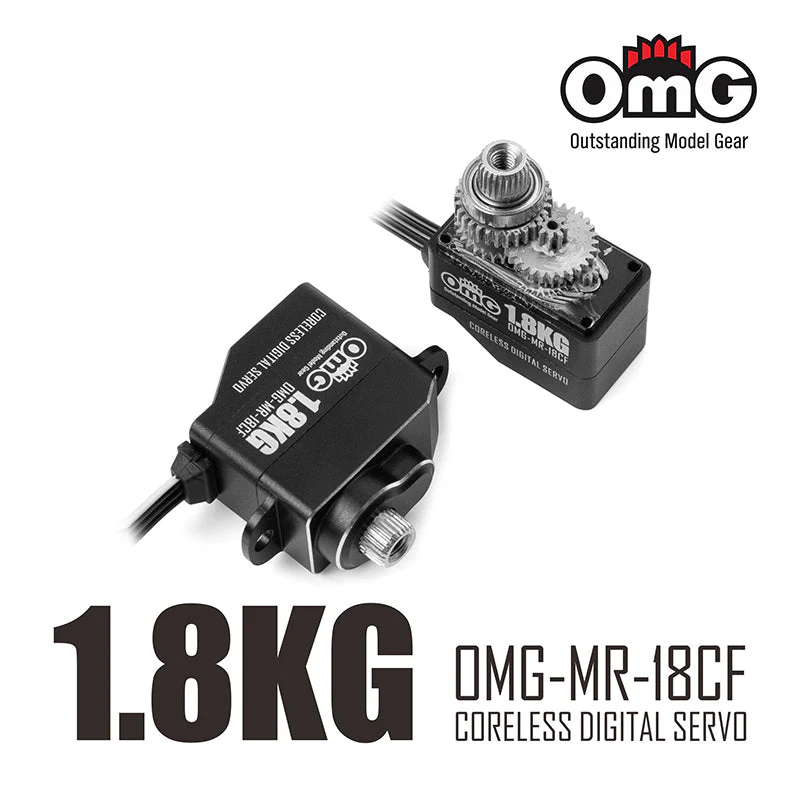

OMG 1.8KG Coreless Micro Servo

Micro size full metal coreless digital servo,fit for MiNI-Z,1/18,1/24/1/27,1/28 rc cars(DRZ V2,BMR-X,Drift Art2,WLtoys K989/969,Mini-Q,etc.)

Operating voltage:4.8-6.0V

Operating speed:              Stall torque:

4.8V-0.070sec/60°             4.8V-1.6kgf.cm(22oz-in)

6.0V-0.065sec/60°             6.0V-1.8kgf.cm(25oz-in)

Gear material:Copper

Horn gear spline:25T Φ4.9

Size:0.79x0.44x0.87in

Case material:Full metal

Bearing:2BB

Motor type:Coreless

Operating temperature:-15℃~+70℃

Operating travel :≈180±10°

Neutral position :1520μsec

Frequency:1520uS

Refresh rate:333Hz

Pules width range :500-2500μsec

Dead band width:2μsec

Connector wire length:180mm

Waterproof level:Dust & Water Splash Resistacne

Programmable:No
