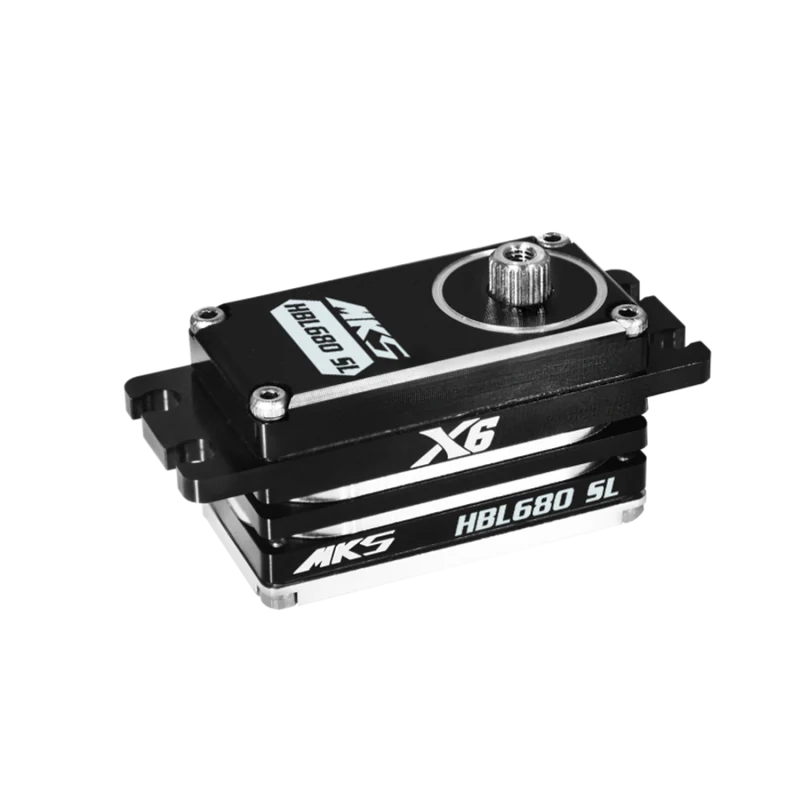

MKS HBL680SL (0.041s/60 - [email protected]) Fullsize Tail Servo

SERVO SPECIFICATION
Torque (kg-cm)	7.0 (6.0V) / 8.6 (7.4V) / 9.5 (8.2V)
Torque (oz-in)	97.2 (6.0V) / 119.4 (7.4V) / 131.9 (8.2V)
Speed	0.056 s (6.0V) / 0.045 s (7.4V) / 0.041 s (8.2V)
Stall Current (at locked load)	2.8A (6.0V) / 3.5A (7.4V) / 3.87A (8.2V)
Working Voltage	4.8V ~ 8.4V DC Volts
Working Frequency	760μs / 560Hz
Dead Band	0.001 ms (Default)
Bearing	2* Ball Bearing
Gear	Metal Alloy Gear
Motor	Japanese-made Brushless Motor



Description

•   Torque (6.0V): 7.0 kg-cm /  97.2 oz-in
•   Torque (7.4V): 8.6 kg-cm /  119.4 oz-in
•   Torque (8.2V): 9.5 kg-cm /  131.9 oz-in
•   Speed: 0.056 s (6.0)  /  0.045 s (7.4V)  /  0.041 s (8.2V)
•   Weight: 54 g  (1.90 oz)

Dimension：40.5 x 20.5 x 23.1 mm
