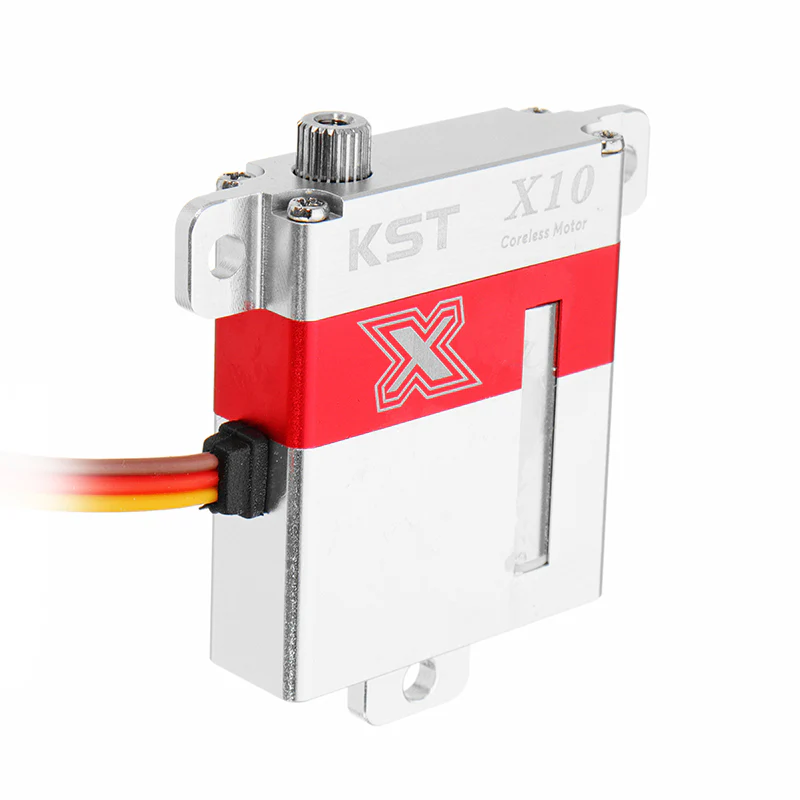

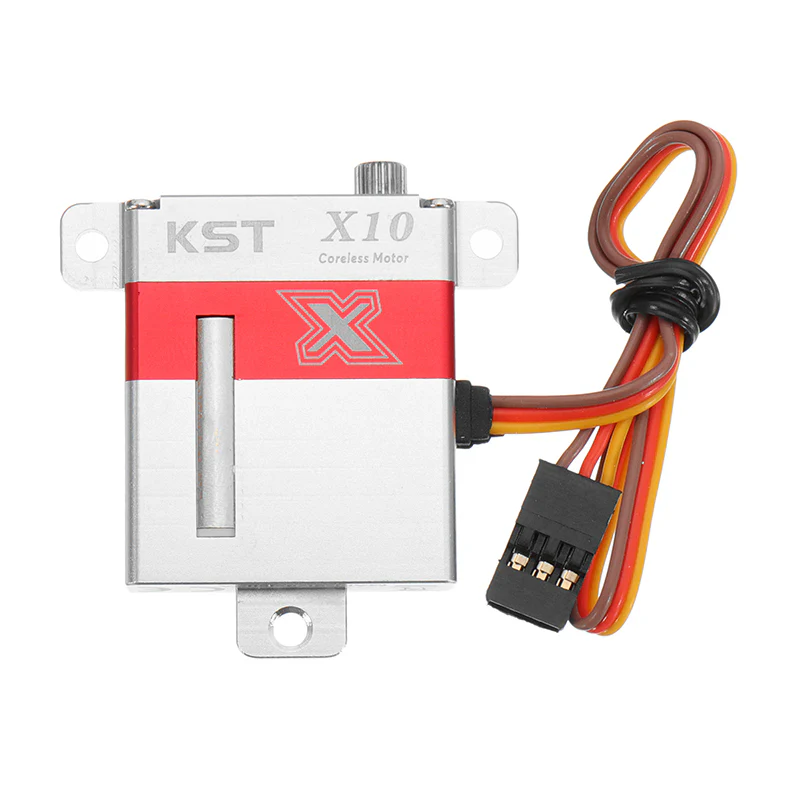

KST X10 V8 Wing Servo

The newest wing servo from KST offers the best performance and definitely the best value servo you can put in your latest sailplane wing. This HV servo has incredible torque and extremely smooth operations rivaling and beating servos twice it's price.

Perfect for applications like F3J, F3B, F3F wing and flap installations. You need to see it and feel how smooth it goes... it's just awesome.

Features

• Compact and Lightweight Design

• Extreme Torque and Excellent Speed
• Excellent Heat Dissipation
• Programmable
• CNC Aluminum Case

Specification

• Item: X10 V8.0 Servo
• Rated Voltage: DC7.4V
• Voltage Range: DC4.8V-8.4V
• Torque: [email protected],  [email protected], 9.5[email protected], [email protected]
• Speed: 0.16sec/60° @4.8V,  0.14sec/60° @6.0V, 0.12sec/60°@7.4V,  0.10sec/60°@8.4V
• Working Frequency: 1520µs/333Hz
• Travel Angle: ±50°=100° Total
• Temperature Range: -10℃……+65℃
• Soft Start: Programmable
• Programmable: Yes
• Case Material: Aluminum Alloy
• Lead length: 15cm
• Bearing: 2BB

• Gear Set Material: Hardened Steel

• Motor Type: Coreless DC Motor
• Position Sensor: Potentiometer
• Case Dimensions: 30*10*35.5mm ±0.2mm
• Weight: 28g±10%

Related Products

• X10 Mini Servos

Size

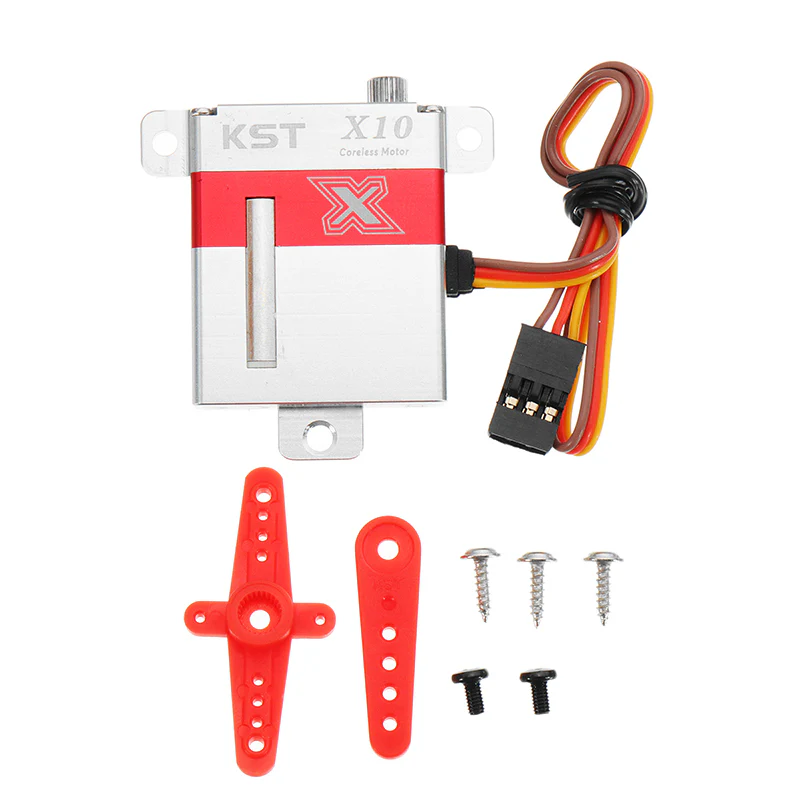

Package Including

• 1 * X10 V8.0 Servo
• 5 * Plastic Servo Horn
• 1 * Servo Horn Screw
• 3 * Mounting Screw

Download

• X10 V8.0 Servo Technical Specification
