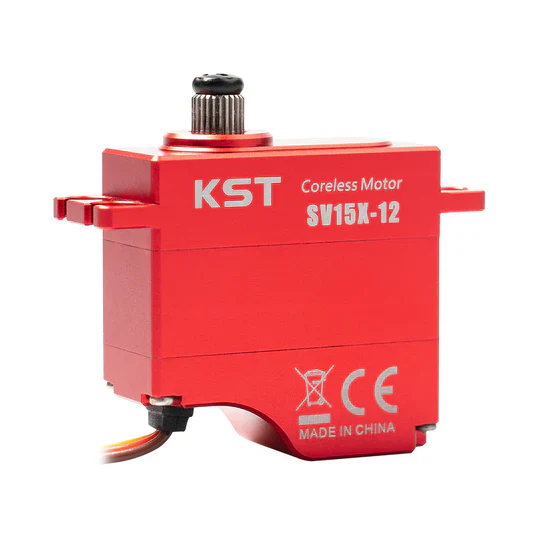

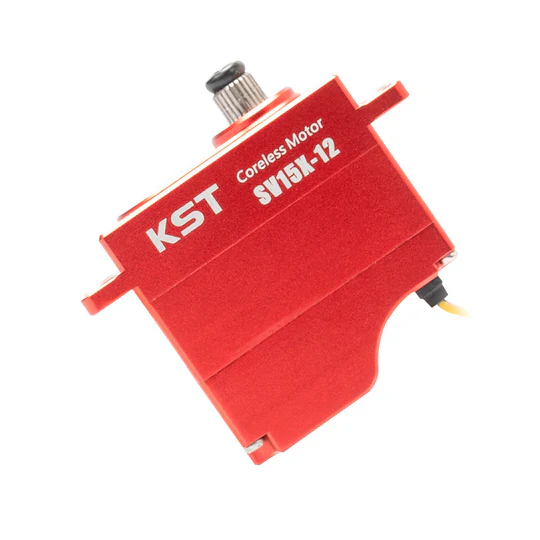

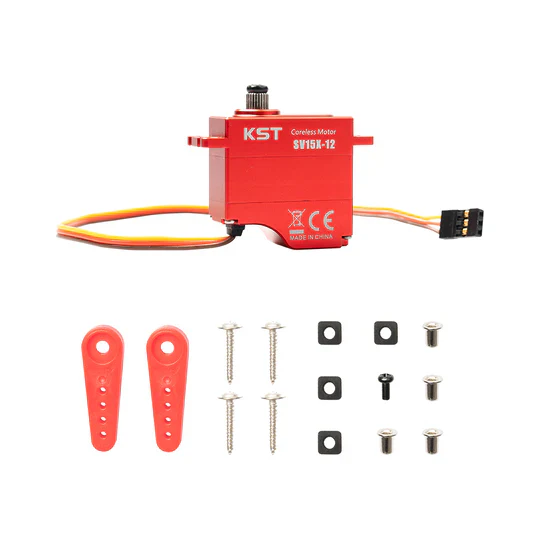

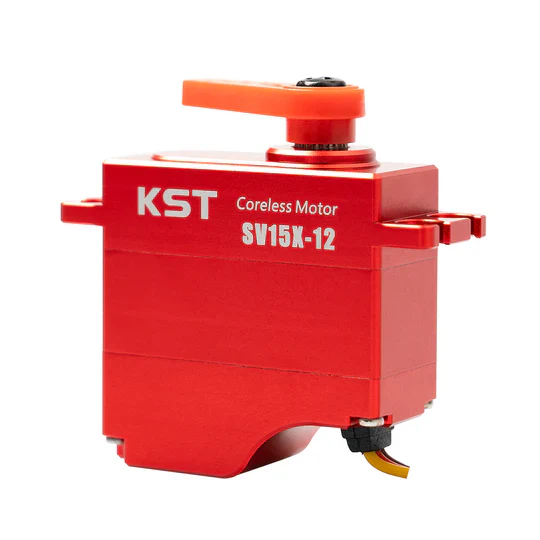

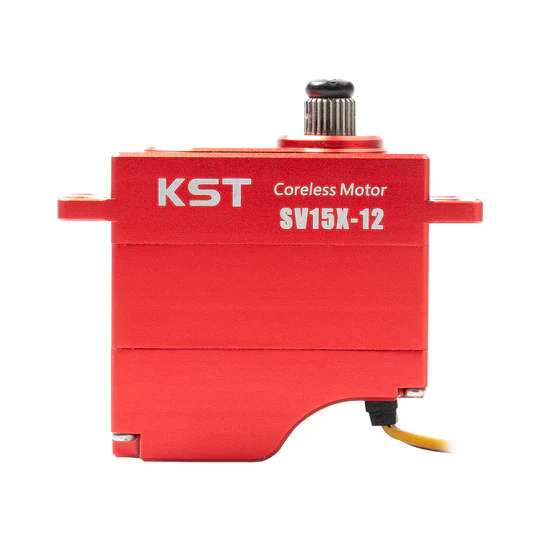

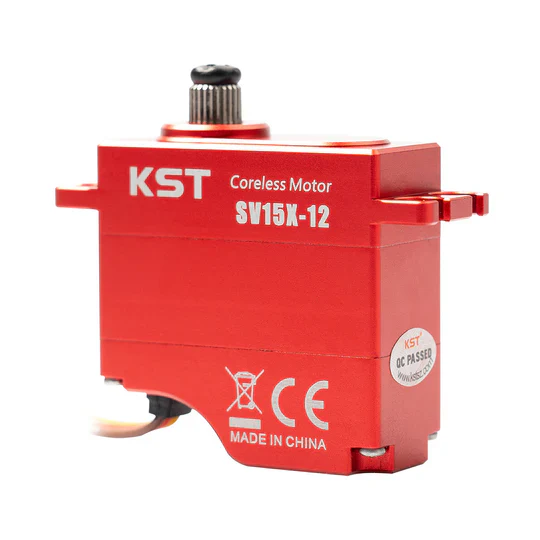

KST SV15X-12 SHV Coreless Metal Gear Mini Servo 13kgf.cm 0.05sec

Power and precision in a compact form, the KST SV15X-12 is a Super High Voltage (SHV) coreless mini servo designed for RC helicopters, Industrial UAVs, and robotics.

At 13.0V, the SV15X-12 delivers up to 13.0 kgf · cm of torque and achieves an outstanding speed of 0.05 sec/60°, providing fast, precise control even in high-demand environments.

This servo features a high-efficiency coreless DC motor, dual ball bearings, and a hardened steel gear set for consistent, durable operation. It also supports programmable features such as soft-start and direction control for flexible system integration.

Its lightweight aluminum alloy case and compact size (only 40g) make it ideal for space-sensitive applications without compromising performance.

KST SV15X-12 SHV Servo for RC Helicopters, Industrial UAVs & Robotics

Features

  • SHV (Super High Voltage) DC 12V or Up to 3S LiPo Direct Drive
  • Supports 8.4-13.0V High Voltage
  • Programmable
  • Dual Ball Bearings
  • High Torque & Exceptional Speed
  • Compact and Lightweight Design
  • High Performance Coreless DC Motor
  • Hardened Steel Gear
  • Ideal for RC Helicopters, Industrial UAVs & Robotics

Specification

  • Item: SV15X-12 Servo
  • Rated Voltage: DC12.0V
  • Voltage Range: DC8.4V-13.0V
  • Torque: [email protected],[email protected],[email protected]

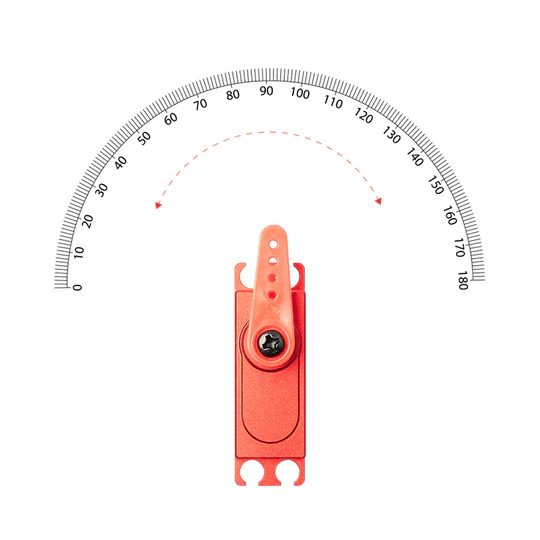

  • Speed: 0.08sec/60°@8.4V,0.06sec/60°@12.0V,0.05sec/60°@13.0V
  • Start Current: [email protected],[email protected],[email protected]
  • Working Frequency: 760μs/560Hz
  • Temperature Range: -10℃……+65℃
  • Soft Start: Programmable
  • Programmable: Yes
  • Case Material: Aluminium Alloy
  • Motor Type: Coreless DC Motor
  • Gear Set Material: Hardened Steel
  • Position Sensor: Potentiometer
  • Ball Bearing: 2BB

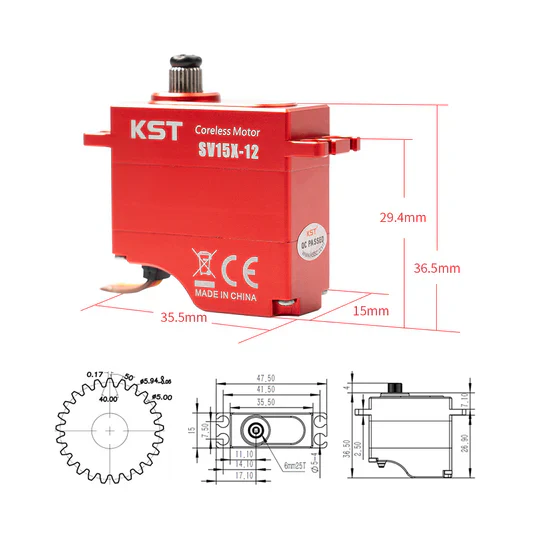

  • Case Dimensions: 35.5*15*36.5mm±0.2mm
  • Weight: 40g±10%

KST SV15X-12 SHV Servo for RC Helicopters, Industrial UAVs & RoboticsKST SV15X-12 SHV Servo for RC Helicopters, Industrial UAVs & RoboticsKST SV15X-12 SHV Servo for RC Helicopters, Industrial UAVs & RoboticsKST SV15X-12 SHV Servo for RC Helicopters, Industrial UAVs & RoboticsKST SV15X-12 SHV Servo for RC Helicopters, Industrial UAVs & RoboticsKST SV15X-12 SHV Servo for RC Helicopters, Industrial UAVs & Robotics

$29.75

Original: $84.99

-65%
KST SV15X-12 SHV Coreless Metal Gear Mini Servo 13kgf.cm 0.05sec—

$84.99

$29.75
