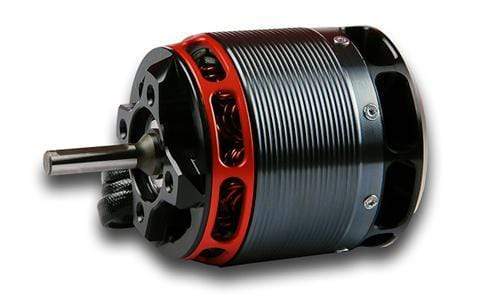

Kontronik Pyro 650-62 Competition Brushless Motor

The PYRO 650 perfectly fits into the PYRO family and is almost as strong as the PYRO 700.

It is the perfect motor for 550 / 600 sized helicopters.

The PYRO 650 can handle up to 3 kW continuous power for ultimate 3D flight ability. The available RPM types fit perfectly to applications up to 12S.

PYRO 650 in short:

• Neodym magnets, heat resistent up to 150 degree C
• Dedicated enameled wire, heat resistent up to 300 degree C
• Optimized metal sheets
• Optimized ventilation
• Radial fan
• Optimized magnet circuit

Specs:

• Winding hand made
• Incredible low resistance
• Higher power capability
• Individual engraving
• Competition design

• 620 RPM/V
• Max. 30,000 RPM
• 6 mm shaft
• 10 poles

• 23.5 mm free shaft length
• 310 g / 10.9 oz
• 3.5 kW
• 19 mΩ R_i
