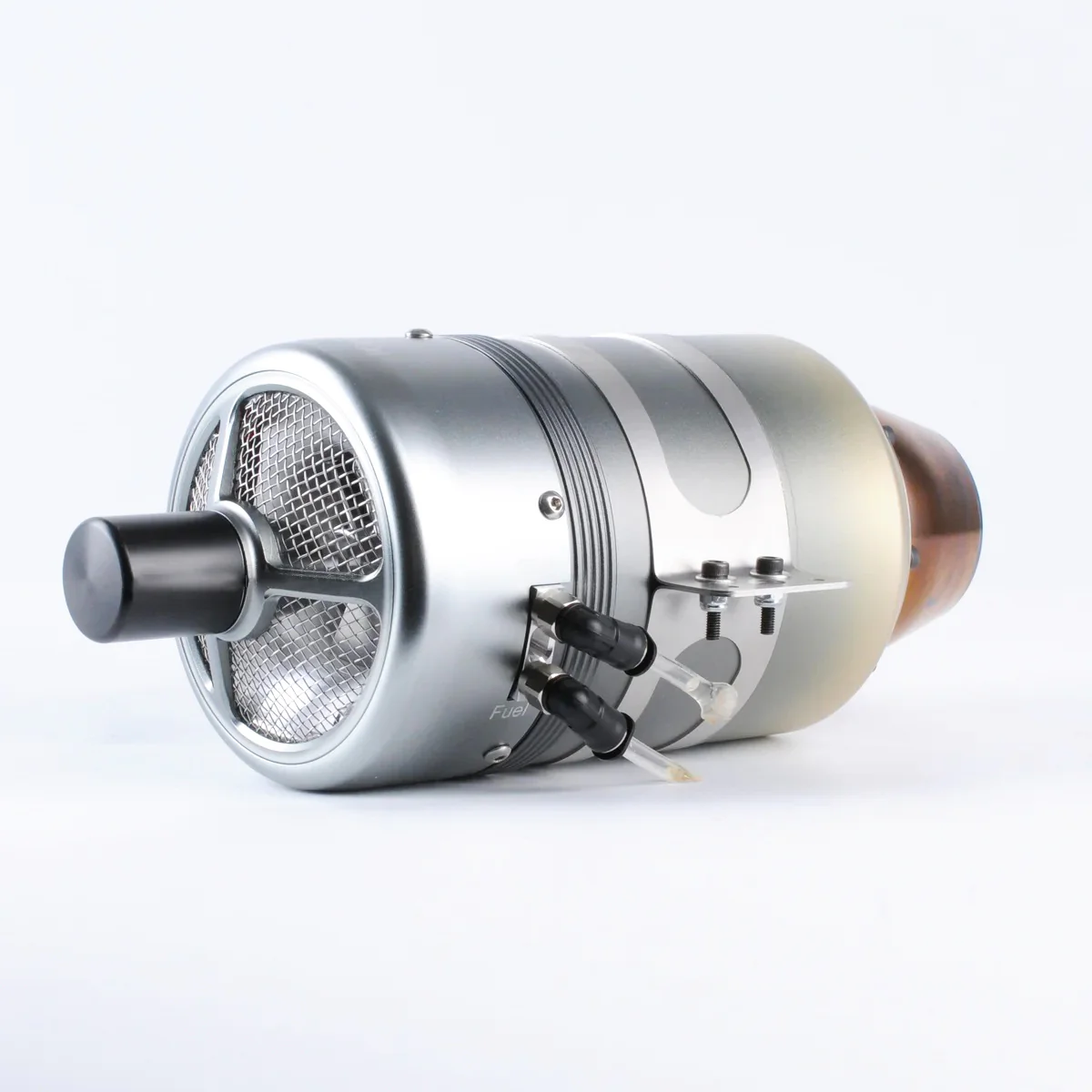

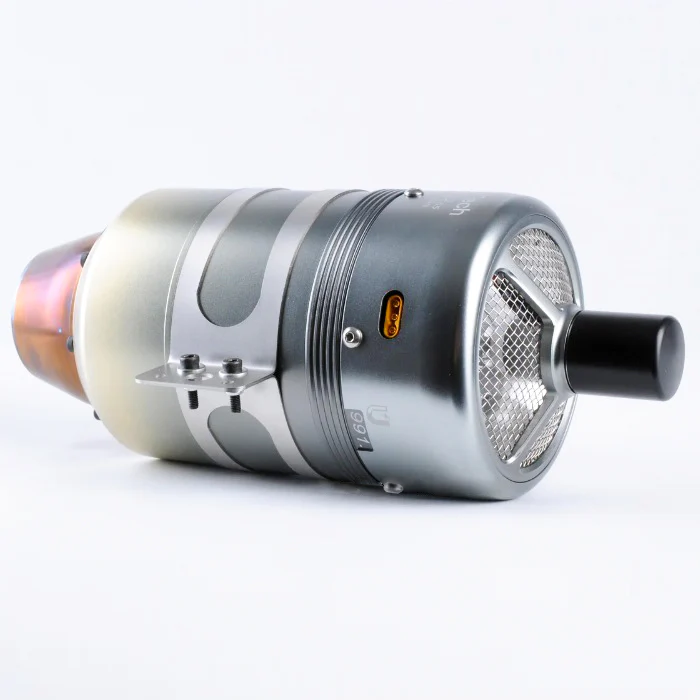

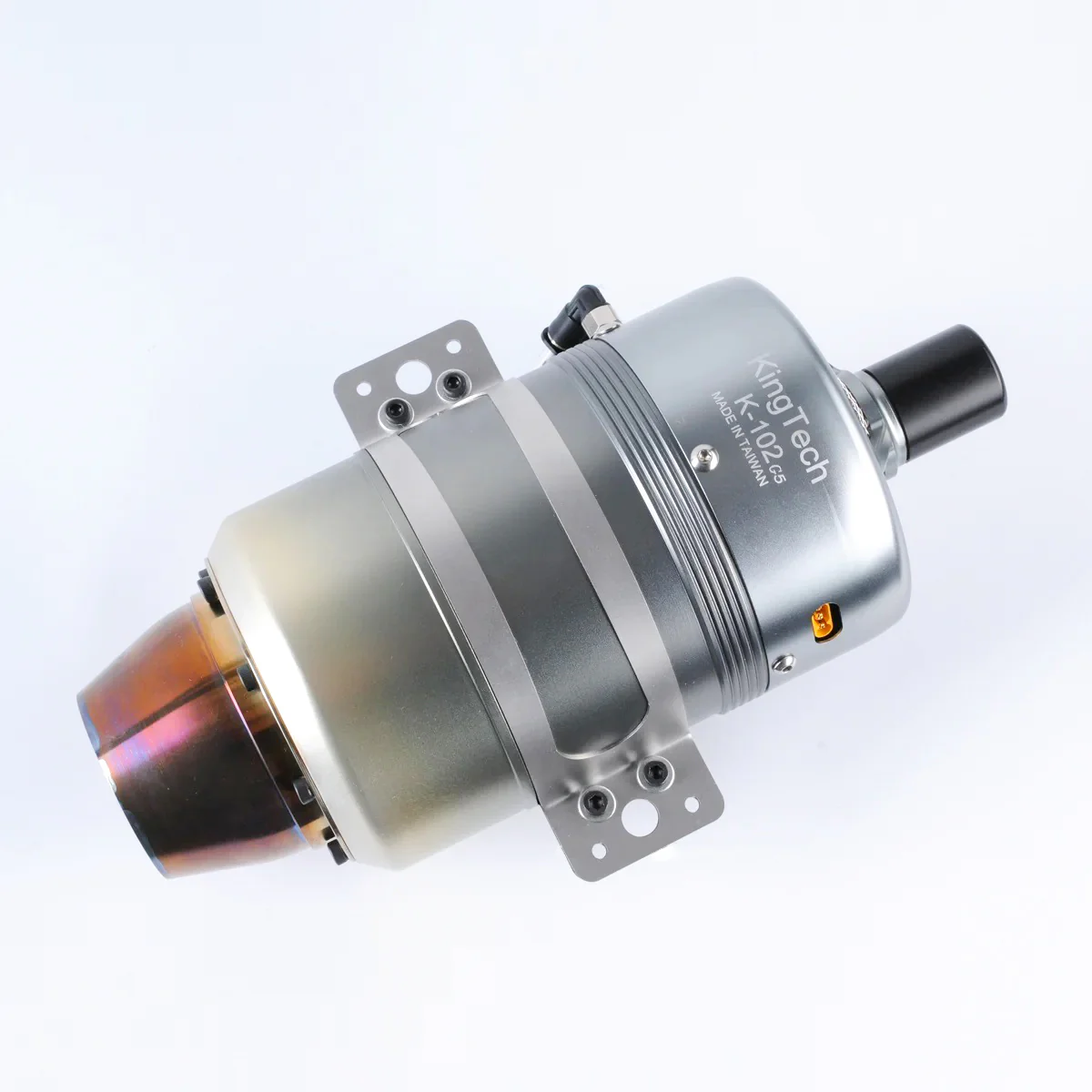

KingTech K102G5 Turbine Engine

Diameter: 84mm / 3.30"

Length: 203.3mm / 8"

Weight: 910g / 2lb

Maximum RPM: 160000

Thrust: 10kg @ 15°C. / 22lb @ 59°F

EGT: 750°C max

Pump Type: Digital Sbus brushless pump KP500DP

Battery: 11.1V Lipo ( At least 2200mah 35C )

Start Time: 10-15 seconds

Fuel consumption: 330g / min ( 11.64oz )

Fuel: Diesel, Jet A1, Kerosene

Lubrication: 5%

Maintenance cycle: 25 hr US$300

G5 MODEL COMPONENTS LIST

• Engine

• Data Relay Module (DRM)

• Ground Support Unit (GSU)

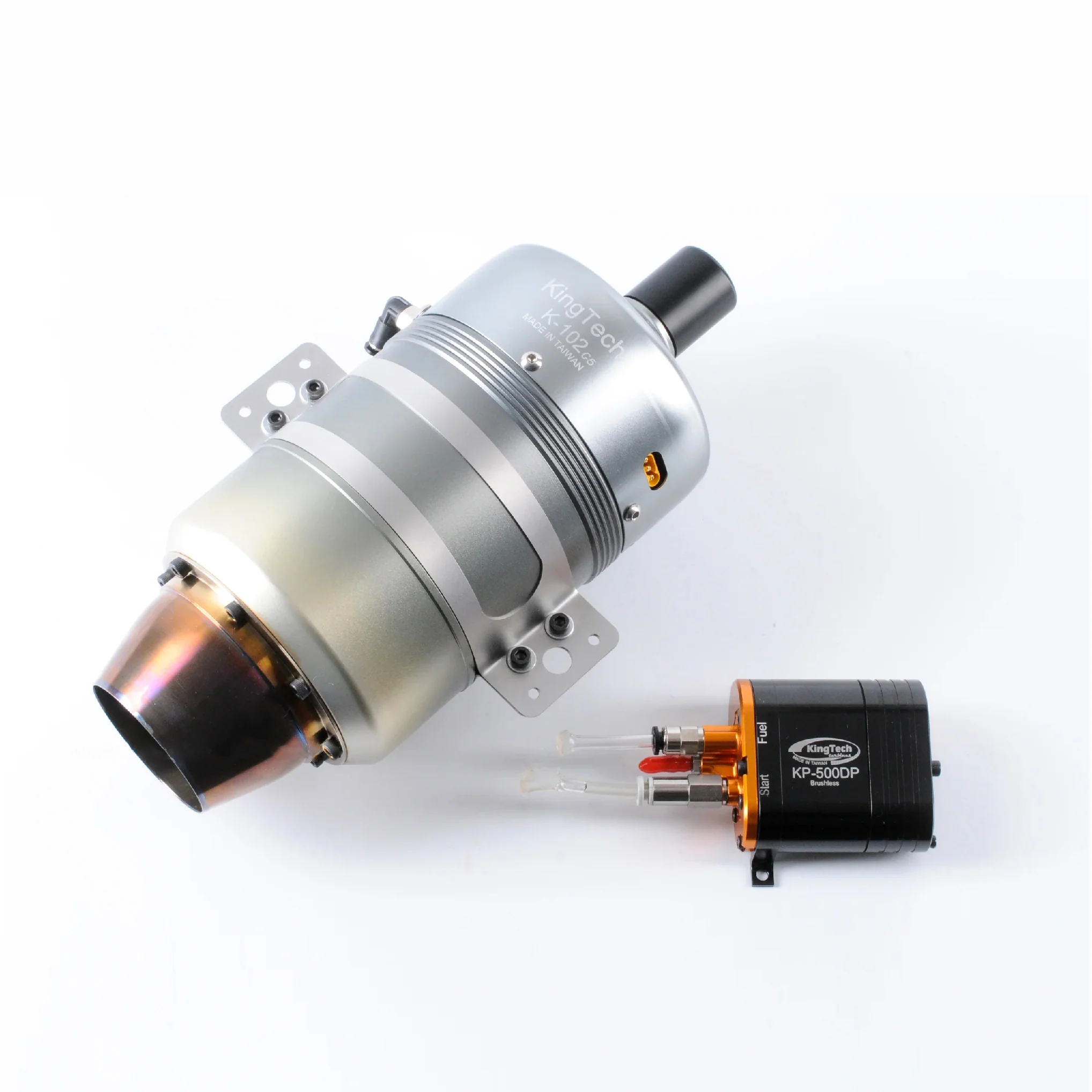

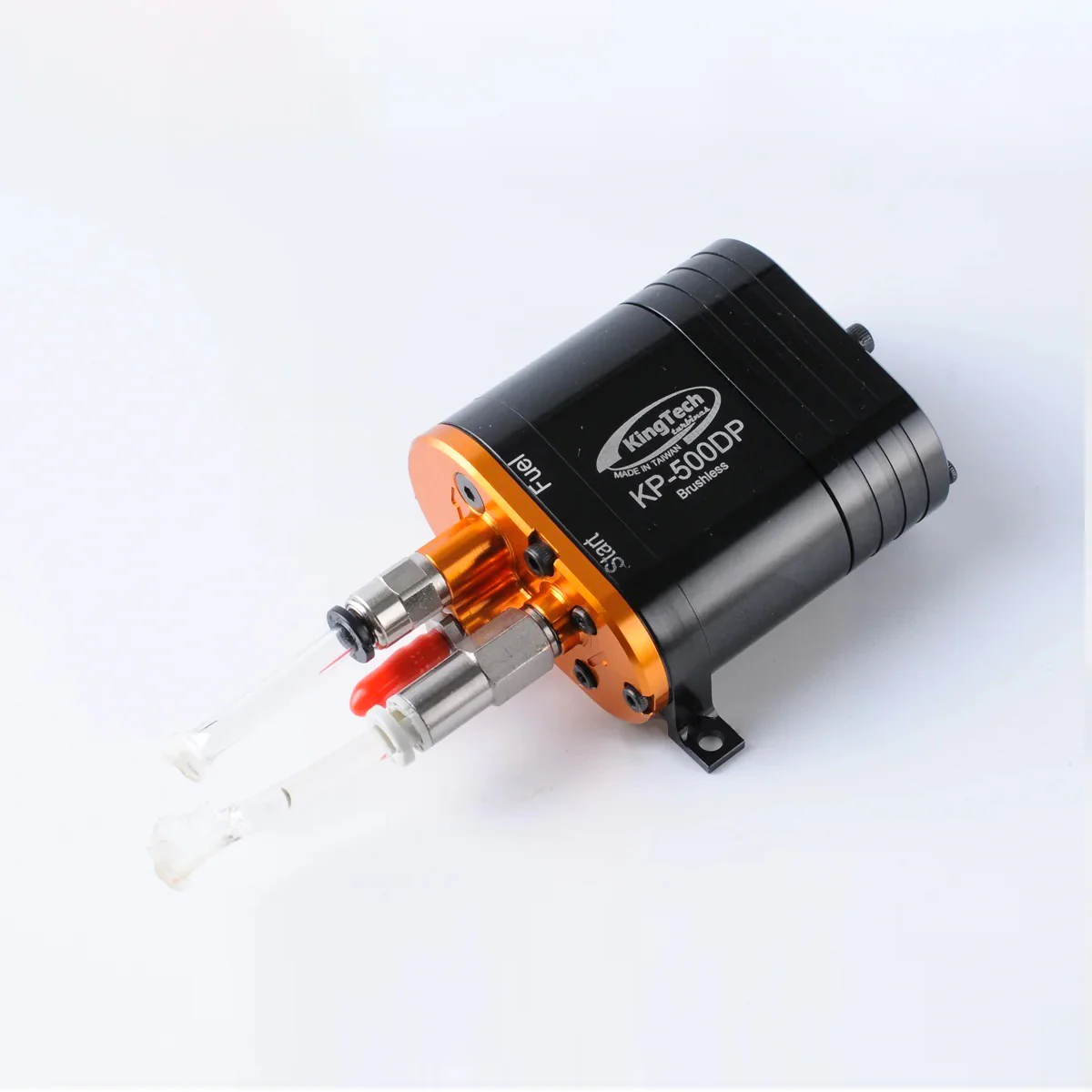

• Digital Sbus brushless pump KP500DP

• Wire Harness and Tubing Set

• Fuel Pump, Filter and Shout-off Valve

• Fuel Inlet Attachments

• Instruction Manual
