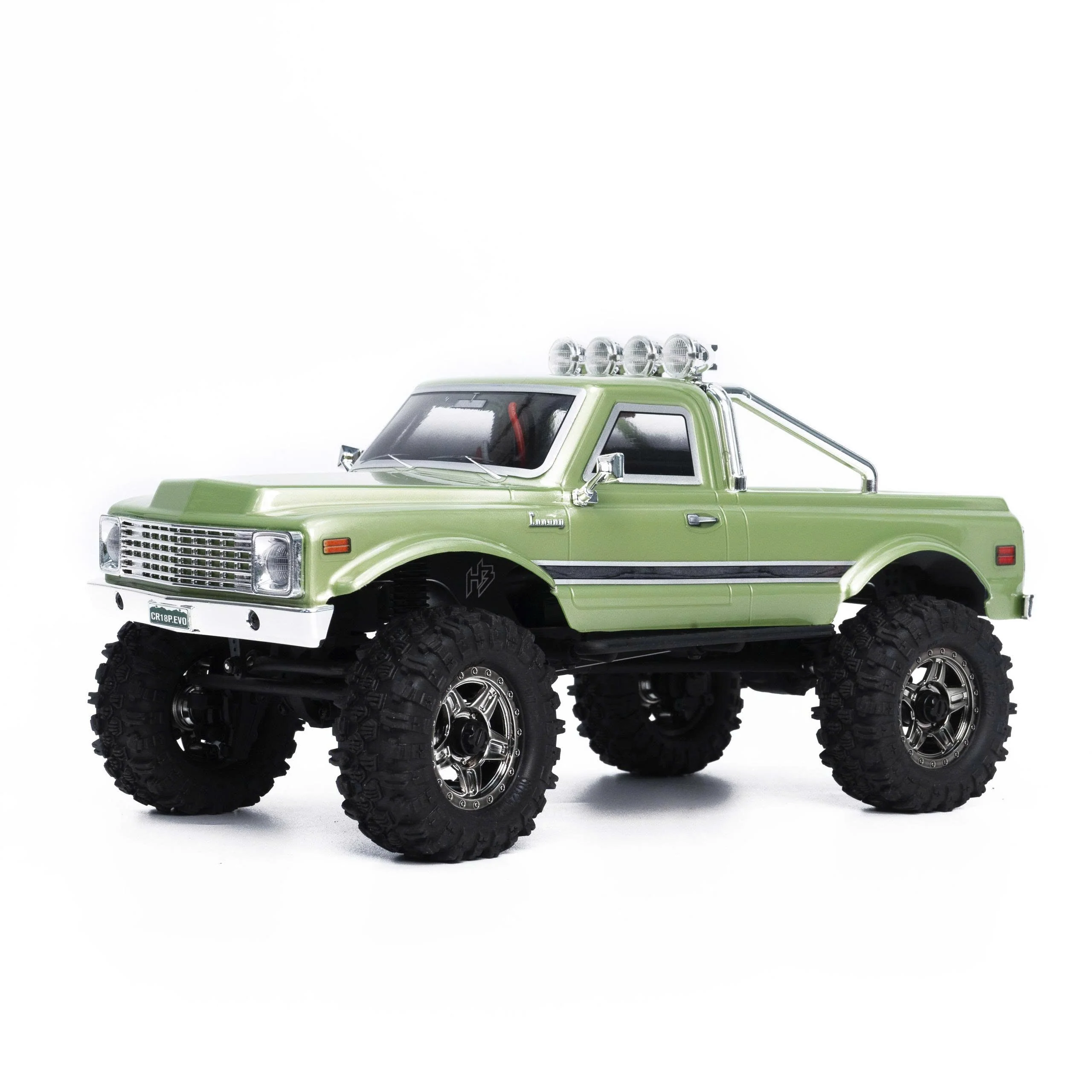

EVO V2 – Reborn from a Legendary Platform

Forged as if from the depths of Middle-earth – not the whole rig, but surely the sintered all-metal gears could hold their own in that realm – the EVO V2 emerges ready to conquer any terrain. From precise crawling over technical obstacles to brisk trail walks and calorie-burning adventures, it’s powered by a user-controlled two-speed transmission for ultimate versatility.

At the core lies the EVO platform’s beating heart, now evolved into the V2, carrying over beloved CR18P features and packing in a host of powerful upgrades:

New Highlights

• Reinforced 1.5mm pin stub axles for added durability.
• Hinged body mounts with hidden clips on the Convoy (previously on RockVan V1).
• Big-bore, threaded, oil-filled aluminum shocks for superior performance and durability.
• All-new body designs with larger wheel wells for improved tire clearance and a bolder stance.
• Fresh scale accessories for the RockVan, including a full-length roof rack.
• Heavy-duty driveshafts and servo-on-axle (SOA) steering system.
• Ultra-bright high-mount LED light bar on the RockVan.
• Super-soft Mudder rubber tires paired with Deep Star beadlock wheels.

Returning Favorites

• Performance-driven portal axles for extra ground clearance.
• Full all-metal gear drivetrain for maximum strength and torque.
• LED lighting throughout the rig for scale realism.
• 5-degree kick-up anodized aluminum chassis for rigidity and precision.
• FlySky 4-channel radio system with integrated brushed ESC/receiver.
• Pre-painted body with clear windows and eye-catching graphics on the RockVan.
• Global support network for parts and troubleshooting.

 EVO V2 is more than just a crawler – it’s a bold statement of engineering, style, and capability in a ready-to-run package. With all these high-performance features built in, it delivers an unmatched experience for both newcomers and seasoned enthusiasts.

New Features That Elevate the EVO V2 to the Next Level

• Big-Bore, Threaded Oil-Filled Shocks.
  Experience smoother, more controlled suspension thanks to large-diameter, rebuildable shocks.
  • Threaded collars allow for precise linear preload adjustment
  • Fully rebuildable design for long-term maintenance and tuning
  • Adjustable damping for customizable trail and crawl performance
• Servo-On-Axle (SOA) Configuration
  Optimized for better balance and steering precision.
  • Positions the servo directly on the axle, lowering the center of gravity
  • Sharply improves steering geometry and response
• Heavy-Duty Driveshafts
  Built for rugged performance.
  • Increased shaft diameter adds torsional strength
  • Designed to handle high torque and rough terrain
• 1.5mm Stub Axle Pins and Hexes
  A subtle upgrade with major benefits.
  • Reduces wheel play for a tighter, more responsive drive feel
  • Stronger than the previous 1.0mm setup for added reliability
• Striking Painted Finish with High-Visibility Graphics & Clear Windows
  Performance meets personality.
  • Eye-catching colors that shine through tough polycarbonate
  • Clear windows for realistic scale aesthetics
  • Because looking good on the trail matters too
• Enlarged Wheel-Well Openings
  More clearance, more capability.
  • Easily handle tougher lines and steeper breakovers
  • Gives the rig a meaner, more aggressive stance
• Full-Length Roof Rack with Integrated High-Viz LED Light Bar (RockVan)
  Form meets function in this adventure-ready accessory setup.
  • Room for all your aftermarket scale gear
  • Powerful roof-mounted LED light bar for trail visibility
• Hinged Body with Hidden Body Clips (New for Convoy)
  Convenience meets cleanliness.
  • Effortless access to your battery and chassis
  • Clean, seamless look thanks to concealed body clips

Proven EVO Features That Return Stronger Than Ever

• Performance Portal Axles
  Deliver superior ground clearance compared to traditional straight axles, enabling smoother traversal over rocks, ruts, and rough terrain.
  • Aftermarket support includes multiple gear ratio options for performance tuning
• All-Metal Gear Drivetrain
  Built to endure with strength in every gear.
  • Sintered metal gears used throughout the transmission, axles, and portal hubs for maximum durability
  • Full-metal gearboxes at the center, front, and rear
• Manual 2-Speed Transmission
  Switch between crawl and cruise on the fly.
  • Remote-controlled shifting for true dual-speed performance
• Counter-Rotating Rear Driveshaft
  Reduces torque twist under load, improving stability on technical climbs and side-hill situations
• High-Performance CV Axles (Front)
  • Enable tight steering angles while maintaining strength and smooth operation
• True Full-Time 4WD
  Power to all four wheels at all times, ensuring constant traction wherever you go
• 5-Degree Kick-Up Chassis
  Designed with clearance in mind.
  • Angled rear provides better departure angles for obstacle-rich terrain
  • Precision anodized aluminum for stiffness and performance
• Aggressive Shock and Link Geometry
  Engineered for optimized suspension movement and maximum articulation
  • Low center-of-gravity layout for improved stability on uneven ground
• Tilt-Up Body Access (RockVan)
  Convenient hinged body design offers easy access to electronics and battery compartment
• Remote-Operated LED Lighting
  Light up your trail with the flip of a switch from your transmitter
• FlySky 4-Channel Radio System
  Reliable, responsive, and expandable for your rig's accessories
• Waterproof Electronics
  Tackle mud, snow, and wet conditions without worry
• Ready-to-Run Power Setup
  • Includes 2S LiPo battery for high-efficiency power
  • Convenient USB charger for easy charging on the go
• Global Parts Support & Aftermarket Upgrades
  • Wide availability of replacement parts worldwide
  • Over a dozen factory option parts to upgrade performance, appearance, and durability

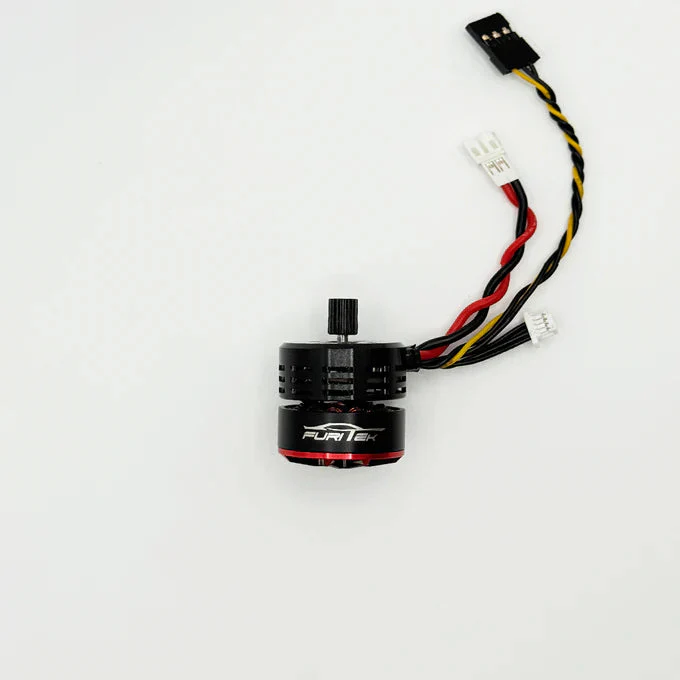

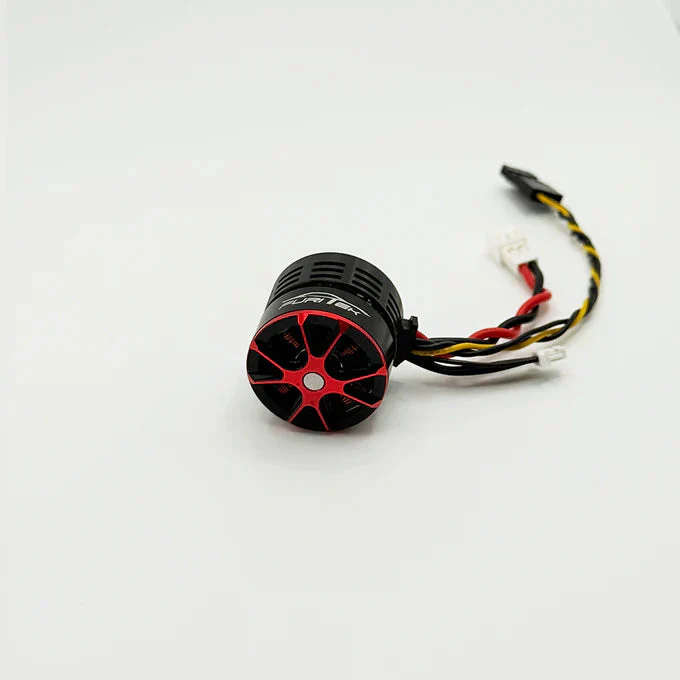

🚀 Introducing the FURITEK MINI KOMODO UNITY

– The World’s First Outrunner Brushless Motor with Integrated ESC for CR18P Pro Juice Up

Furitek is proud to introduce the FURITEK MINI KOMODO UNITY, the world’s first-ever brushless outrunner motor with a fully integrated FOC ESC inside. This groundbreaking 2-in-1 power system is precision-built for 1/18-scale crawlers like the CR18P Pro Juice Up, setting a new standard for clean design, precise control, and intelligent power delivery.

🔧 Engineered for the CR18P Pro Juice Up

As the pioneers of FOC technology in micro crawling, Furitek once again leads the field by embedding a powerful ESC directly into the Mini Komodo outrunner motor. The result is a system that drastically reduces wiring, improves airflow, and delivers an ultra-compact, high-efficiency setup — perfectly suited to the clean chassis design and performance-driven nature of the CR18P Pro.

⚡ What Makes the UNITY System Revolutionary?

🧠 Integrated FOC ESC Inside the Motor

Not just a combo — this is a true integration. The ESC is housed inside the motor shell for the cleanest brushless system ever made.

🔄 High-Performance Outrunner Motor

Effortless torque, silky-smooth throttle response, and absolute control over technical terrain — exactly what the CR18P Pro demands.

🧵 Cleanest Wiring Setup Ever

No external ESCs or tangled wires. Free up space, reduce weight, and maximize airflow in your compact rig.

🔌 True Plug-and-Play for CR18P Pro

Installs seamlessly with minimal effort or modification — straight into your CR18P platform.

📱 Wireless Configuration via Furicar App

Real-time tuning, telemetry, and firmware updates from your smartphone. No cables, no programming box — total convenience.

🔇 Signature Komodo Smoothness — Now Smarter

The world-renowned throttle feel of the Mini Komodo, now with built-in FOC intelligence for superior control.

🔧 Key Features

🧵 Clean and Compact Build

The integrated ESC-in-motor design ensures a clean and minimalist layout — perfect for scale-accurate and high-performance CR18P Pro builds.

⚙️ Advanced FOC Technology

Field-Oriented Control delivers precise power across all RPMs, optimized for slow-speed crawling, technical lines, and demanding trails.

🔋 Integrated 5A BEC

Selectable 5.5V or 7.4V output to power both stock and upgraded servos without the need for an external BEC — built for high-torque demands.

🔌 2S–3S LiPo Compatibility

Use 2S for ultra-smooth low-speed control or 3S for increased punch and performance. UNITY adapts to your style and terrain.

📱 Furicar App Integration

Adjust throttle curves, braking, startup behavior, and more — right from your phone, with real-time feedback and intuitive controls.

🔄 Free Lifetime Firmware Updates

Benefit from ongoing improvements and future features — easy over-the-air updates via the app ensure your system stays cutting-edge.

📐 Ultra-Compact Dimensions

At just Ø23 × 21.3 mm (Ø0.91 x 0.84 inch), UNITY fits neatly into the CR18P Pro’s tight chassis design.

⚖️ Lightweight Performance

Weighing in at only 25.1g (0.88 oz), it preserves your crawler’s balance, agility, and responsiveness on any terrain.

⚙️ Motor Specifications

• KV Rating: 2500KV – Optimized for torque and smooth throttle response in micro crawler platforms.

• Maximum Power Output: 160W – Delivers strong and reliable performance in compact scale builds.

• Battery Compatibility: Supports 2S–3S LiPo for versatile power setups

⚡️ ESC Specifications

• Continuous Current: 30A – Stable output for demanding crawls.

• Burst Current: Up to 50A – Handles sudden load spikes with ease.

• Battery Support: 2S–3S LiPo – Flexible voltage range for performance tuning.

• Built-in BEC: 5A with selectable 5.5V / 7.4V – Powers high-torque servos without external units.

• Smart Programming: Fully adjustable via the Furicar mobile app for effortless tuning and updates on the go.

📦 Package Includes

• 1x Furitek MINI KOMODO UNITY 2-in-1 ESC/MOTOR with 11T CNC Steel Pinion

• 1x Furitek wireless module

• 1x User Manual

• 1x Power cable adapter
