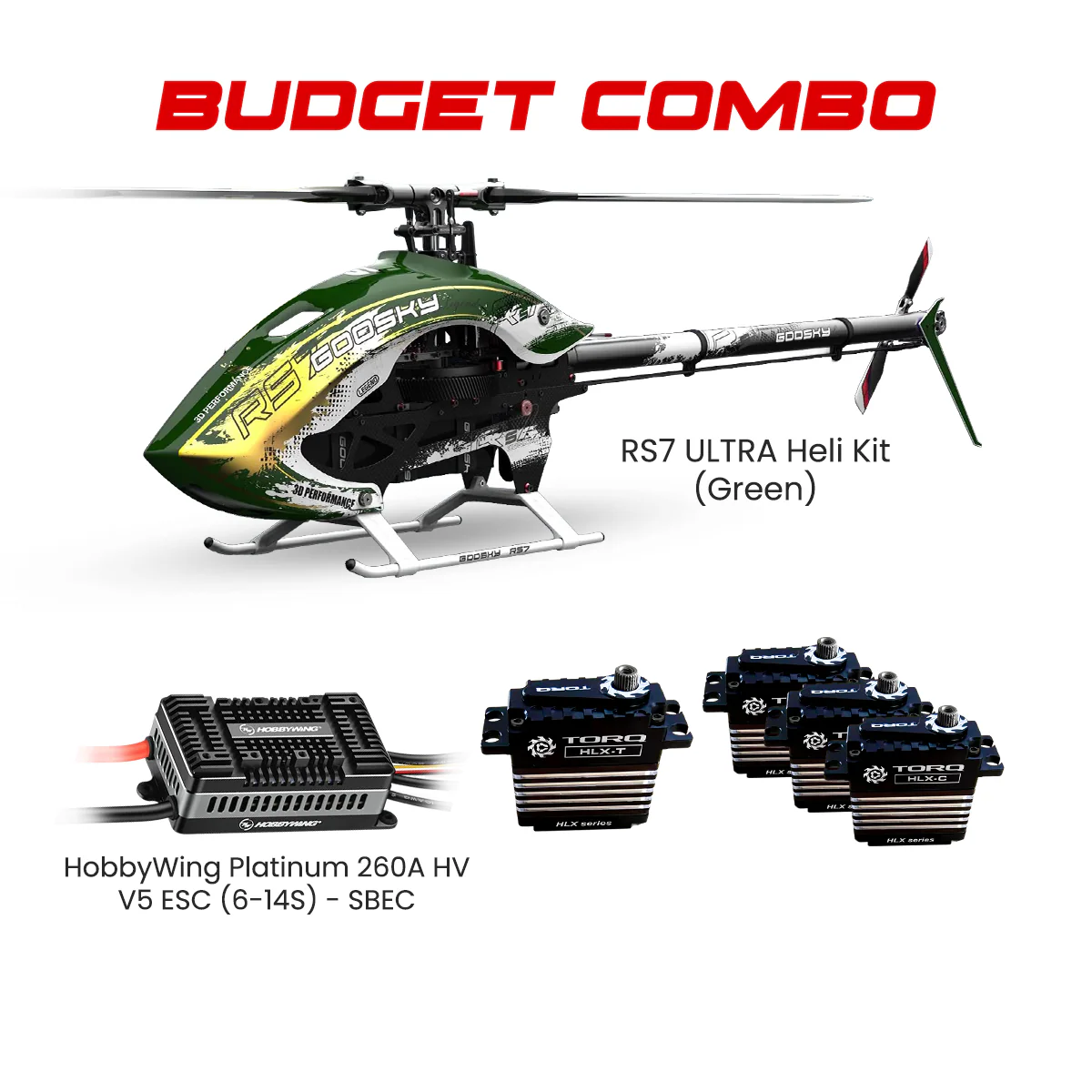

Goosky RS7 ULTRA Helicopter Kit (GREEN) With Azure 700/105 Blades Combo TORQ HLX Black Edition Servos & HobbyWing Platinum 260A HV V5 ESC (6-14S)

*** Package Includes:
1 * Goosky RS7 ULTRA Helicopter Kit With Azure 700/105 Blades - Green
1 * HobbyWing Platinum 260A HV V5 ESC (6-14S) - SBEC
3 * Torq HLX Black Edition Fullsize Cyclic Servo
1 * Torq HLX Black Edition Full Size Tail Servo

1. Goosky RS7 ULTRA Helicopter Kit With Azure 700/105 Blades - Green:
*** Features:
Low-Drag Aerodynamic Shape Design
Integrating multiple low-drag aerodynamic solutions: The top ridge line splits the airflow like a blade, while the double-curvature air ducts direct the air precisely into the cooling channels. The inward-turning edge design reduces vortex formation, and the entire canopy features a low-resistance, streamlined profile that balances heat dissipation efficiency with increased stability by minimizing flight drag

Main Gear Reinforcement
The main gear features a larger diameter design, with an optimized increase in the helical angle, improving transmission efficiency and increasing torque output

Adaptive Tensioner Wheel Design
Featuring an adjustable tensioner wheel, the S2 incorporates a dual-shaft reinforcement design and leverages top-tier CNC machining technology—all to provide a stable and reliable flight experience.

Shock Absorption System
Upgraded shock absorption system, designed with vibration filtering and cushioning, reduces airframe vibrations that interfere with the gyroscope, enabling more precise control

Tail Assembly
Featuring a lightweight design that reduces weight by 8g; the tail shaft is shortened by 9mm, lowering the load and reducing vibration; the geometry and pitch are optimized simultaneously, further enhancing tail response speed and control performance

*** Specifications:
- Overall Height: 353mm
- Width: 215mm
- Airframe weight(no battery): About 3.7kg
- Main Shaft Diameter: Ø15mm
- Feathering Shaft Diameter: Ø10mm
- Tail Shaft Diameter: Ø5mm
- Tail spindle Diameter: Ø5mm
- Tail Belt width: 8mm
- One-piece tail shaft: 8mm
- Main Gear: 116T
- Front Tail Pulley: 100T
- Main Gear Ratio (Main motor gear 13T): 8.92 (Standard configuration)
- Main Gear Ratio(Main motor gear 12T): 9.66
- Tail Ratio(Tail pulley 20T): 5 (Standard configuration)
- Tail Ratio(Tail pulley 21T): 4.76
- Tail rotor diameter (when paired with 105 tail blades): Ø295mm
- Battery Compartment Size: (L320*W50*H55mm)

2. HobbyWing Platinum 260A HV V5 ESC (6-14S) - SBEC:
*** Specification:
- Continuous/Peak current: 260A / 400A
- Input voltage: 6-14S LiPo battery
- BEC: Switch Mode BEC; output voltage 5-12V adjustable (adjusted 0.1V); output current cont. 10A, Peak 30A
- Input/Output wires: 1 x black and 1x red 8AWG silicone wires / 3 x black 10AWG silicone wires
- Independent parameter programming interface: Connect LCD program box or OTA module, or to power the cooling fan
- LED light: Display the statuses and fault alerts
- Size/Weight: 89 x 50 x 34mm / 297g (With wires)
- Mounting holes: M3, 39 x 98mm
- The scope of application: 700-800 class electric helicopter (main rotor length 700-880mm), or fixed-wing

3. Torq HLX Black Edition Fullsize Cyclic Servo:
*** Features:
- Using the newest Hall Sensor Technology
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Fully New Design Steel Gear Train for Maximum Strength
- 8.4V High Voltage Ready
- Optimized for Heli, Airplane, Jet Aircraft
- 6 Ball Bearings Construction

Speed:
0.07 sec / 60° @8.2V
0.09 sec / 60° @ 7.4V
0.11 sec / 60° @ 6.0V

Torque:
35Kg.cm / 486,05 oz in. @ 8.2V
30Kg.cm / 416,62 oz in. @ 7.4V
24Kg.cm / 333,29 oz. in. @ 6.0V

*** Specifications:
- Motor Type: Brushless
- Servo Arm Type: Futaba
- Working Frequency: 1520us / 333Hz or 760us / 560Hz (need the TBOX Program Card)
- Weight: 80g
- Dimensions: 40mm x 20mm x 40mm (LxWxH)
- Voltage Range: 6.0V - 8.4V

*** Usage Note:
Servo Grommet is suggested use if you use our servo on Nitro Heli.

4. Torq HLX Black Edition Full Size Tail Servo:
*** Features:
- Using the newest Hall Sensor Technology
- Blistering 0.035 Second Transit Speed
- Dedicated Helicopter Rudder Servo
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Newly Design Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via Finned 6061 Aluminum Case
- 8.4V High Voltage Ready
- Optimized for High Demand Rudder Control
- 6 Ball Bearings Construction

Speed:
0.03 sec / 60° @ 8,2V
0.035 sec / 60° @ 7.4V
0.04 sec / 60° @ 6.0V

Torque:
13.0Kg.cm / 180,53 oz. in. @ 8.2V
11.0Kg.cm / 152,76 oz. in. @ 7.4V
9.0Kg.cm / 124,98 oz. in. @ 6.0V

*** Specifications:
- Motor Type: Brushless
- Servo Arm Type: Futaba
- Working Pulse Width / Frequency: 760us / 560Hz or 450us-1050us
- Weight: 80g
- Dimensions: 40mm x 20mm x 40mm (LxWxH)
- Voltage Range: 6.0V - 8.4V

*** Usage Note:
For helicopter rudder usage only. Please note that the TORQ HLX-T servo must be connected to a flybarless flight controller that is set at a 760us pulse width setting for proper functionality. Due to the 760us pulse width, if the servo is connected to a receiver or servo tester, the servo will not properly function due to these applications that use a 1520us pulse width.
Servo Grommet is suggested use if you use our servo on Nitro Heli.
