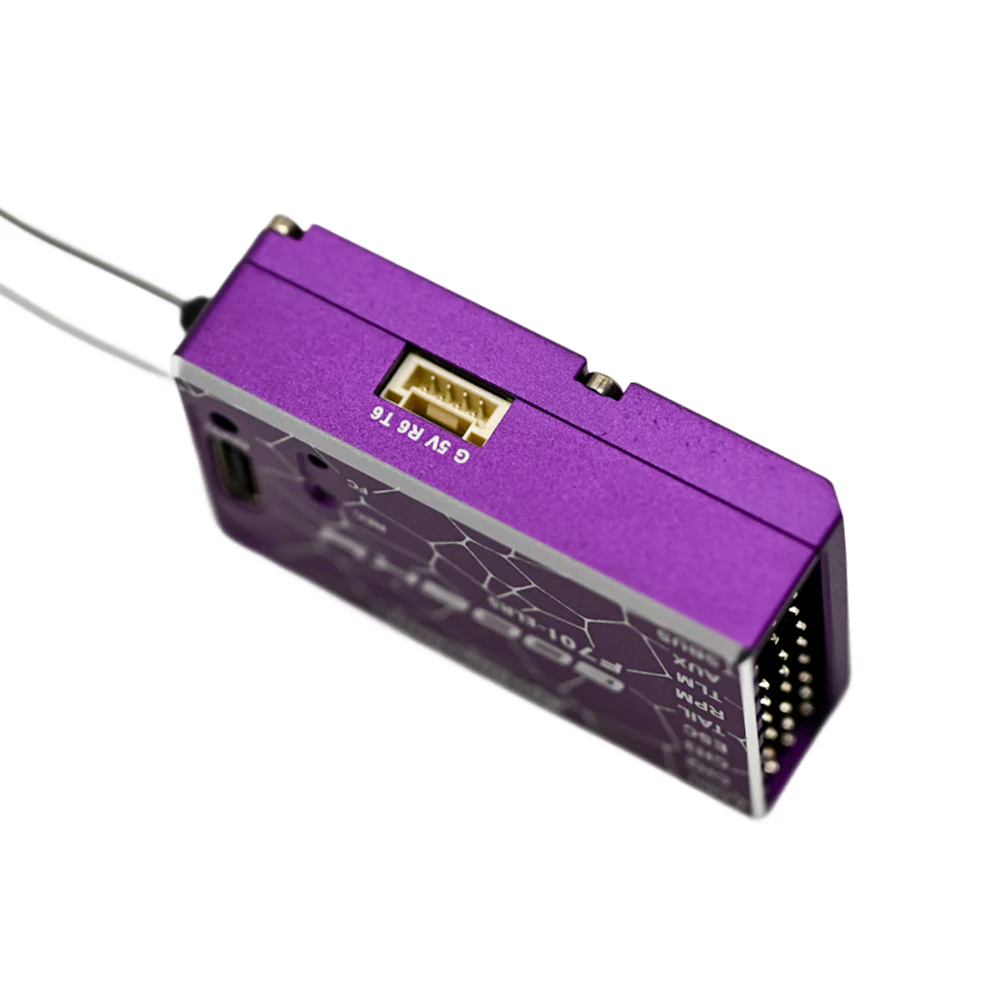

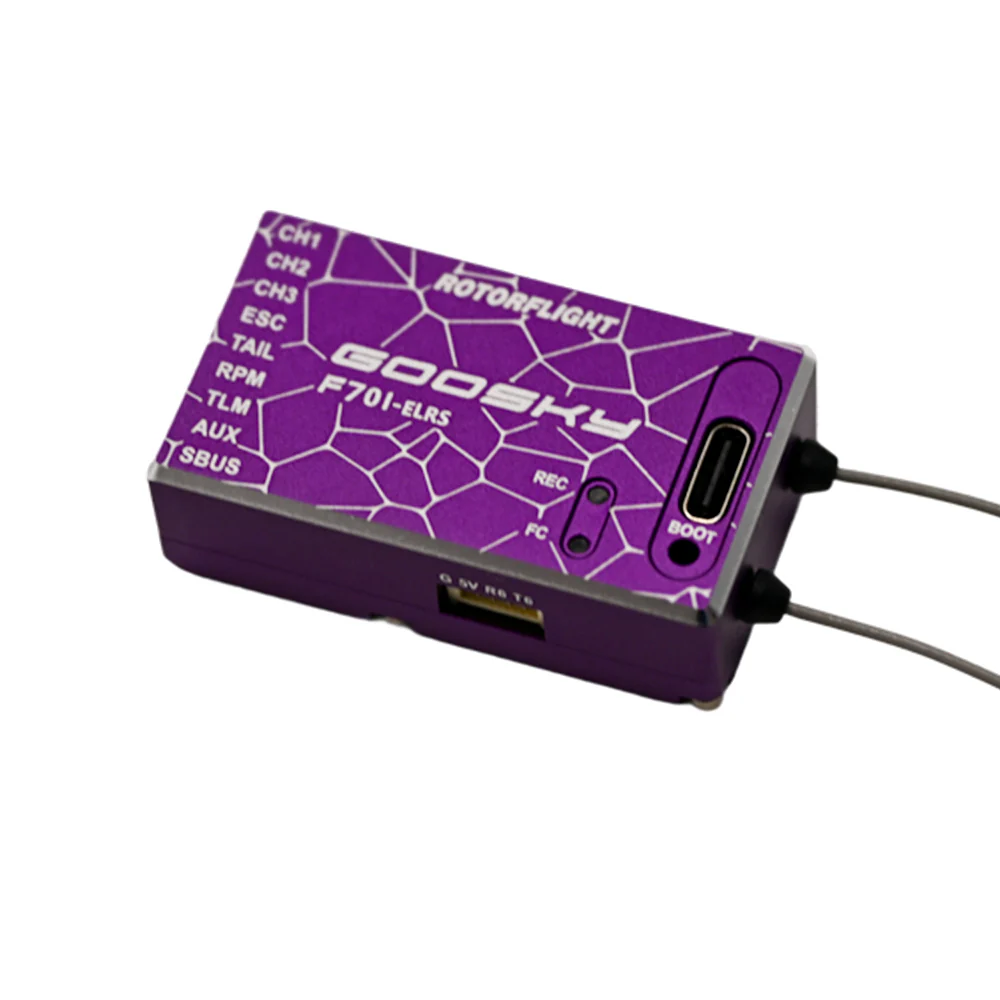

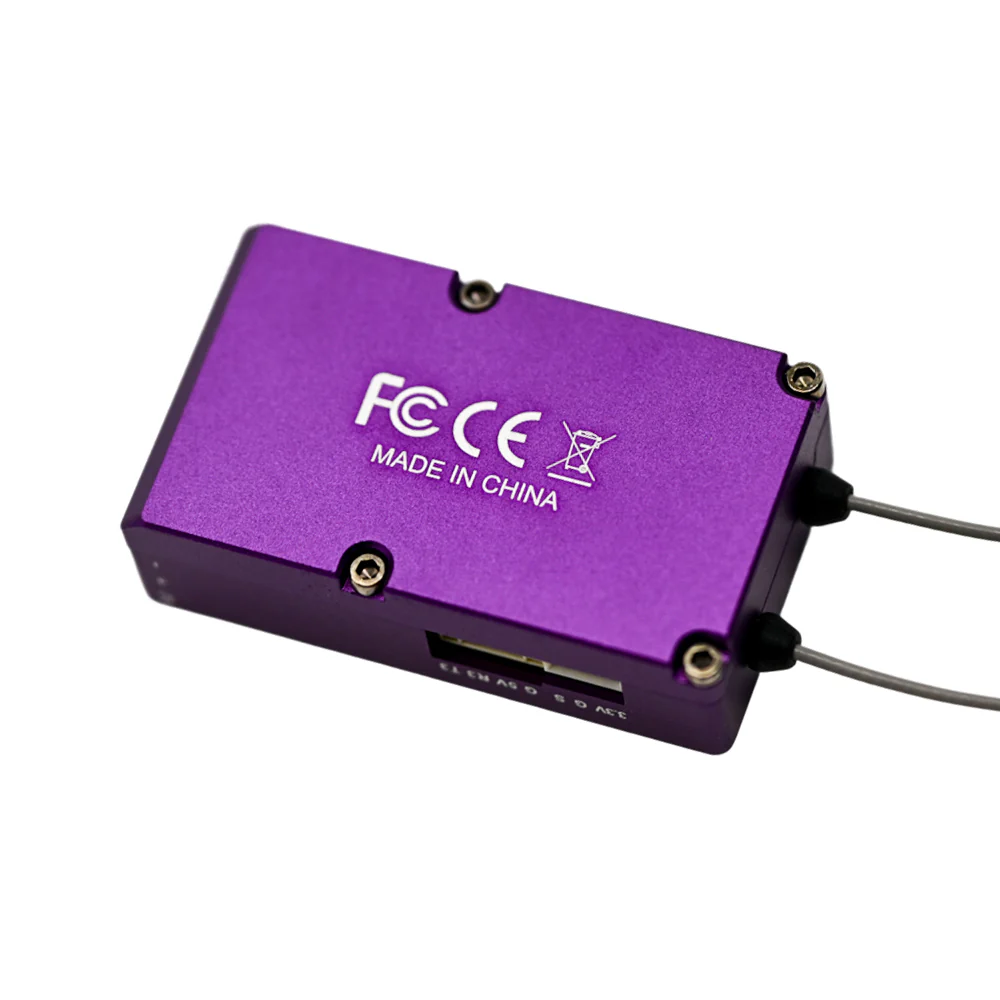

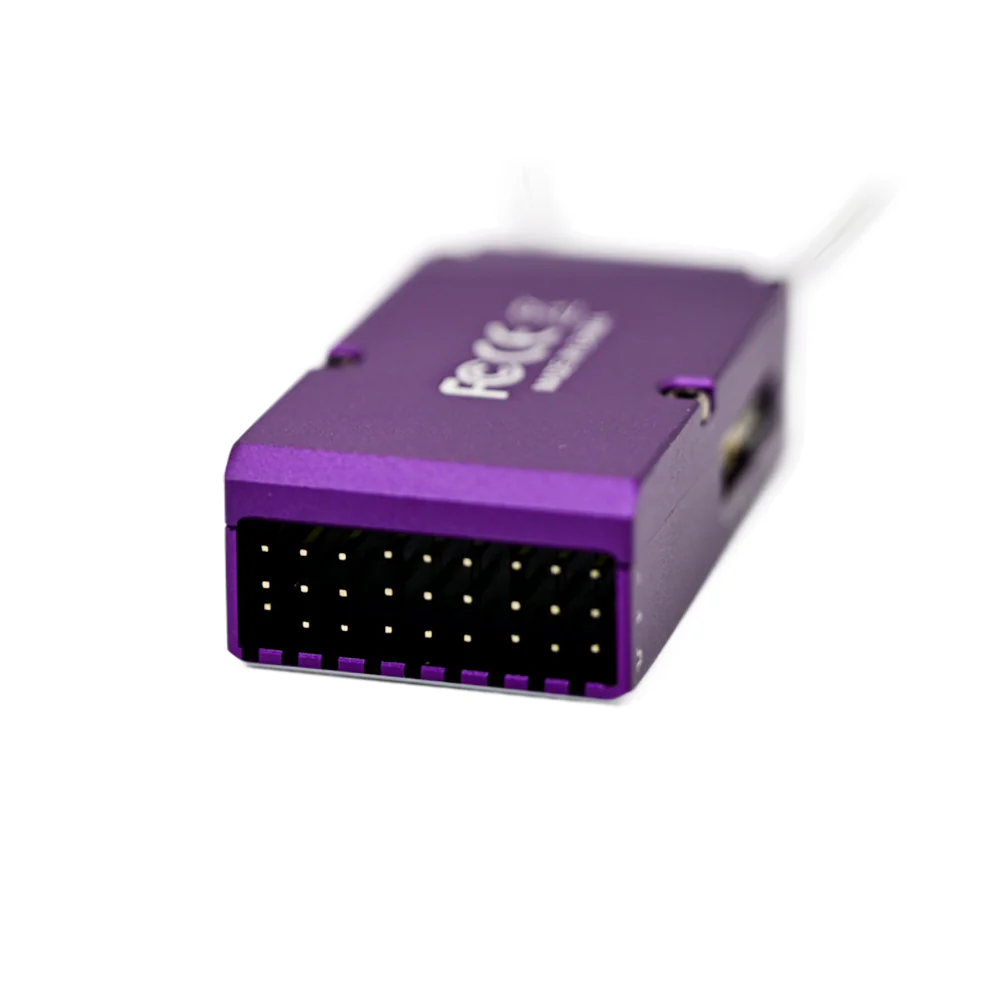

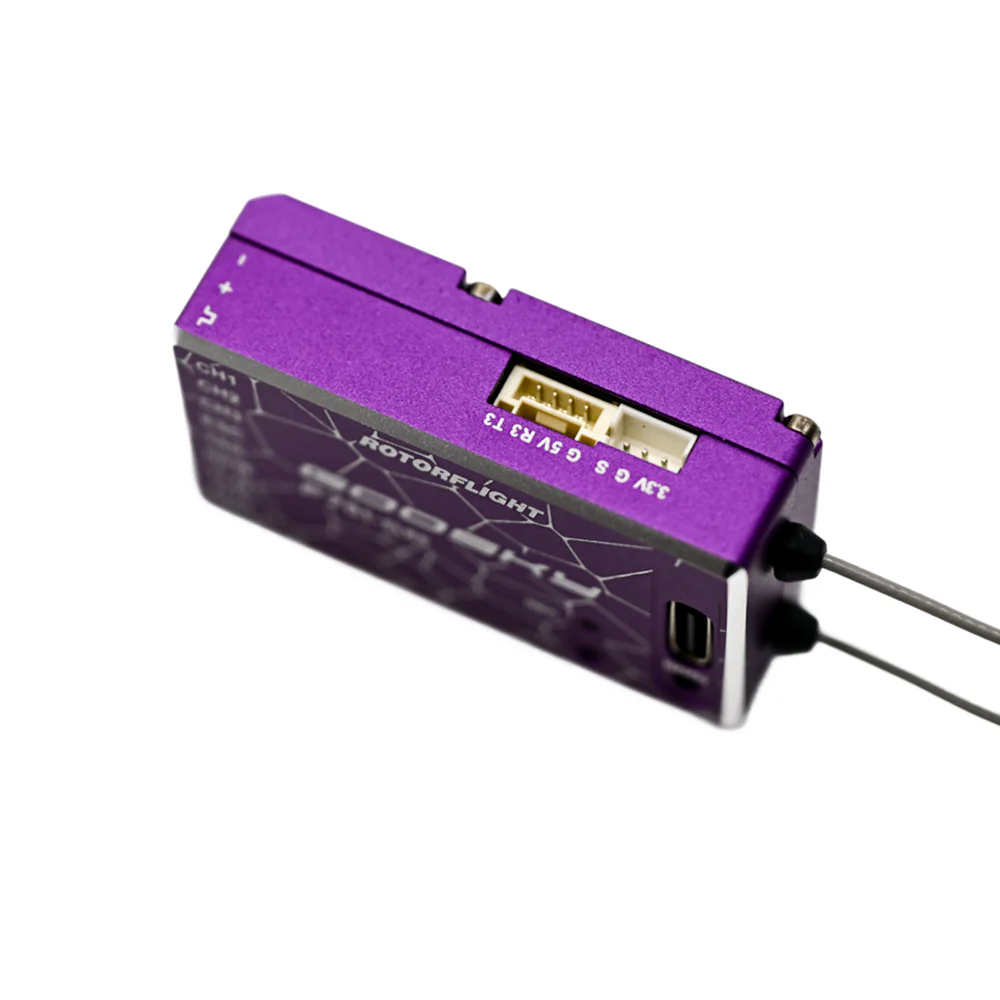

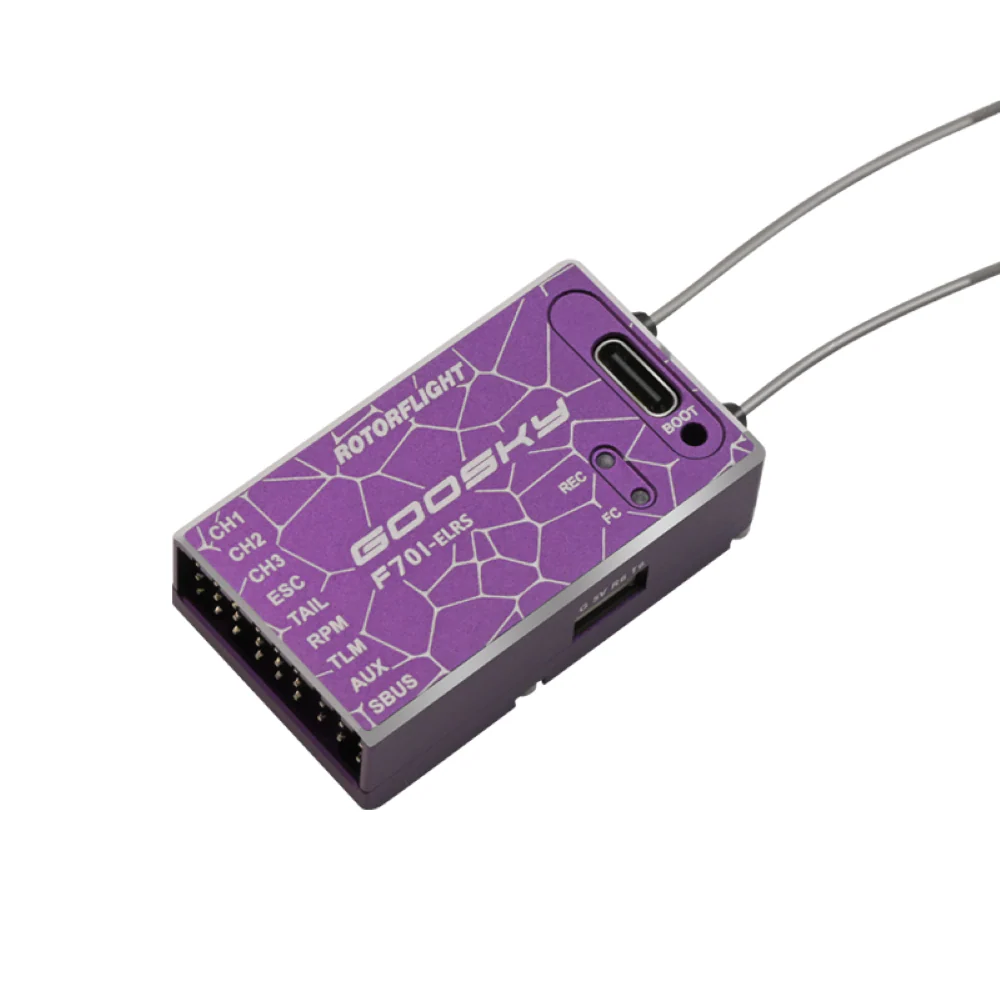

Goosky F701-ELRS RotorFlight Flybarless Unit w/ built-in ELRS Receiver (Starry Night Purple)
GOOSKY F701-ELRS Flybarless Controller is specifically optimized and designed for Rotorflight firmware, offering low-latency response and stable attitude control tailored for RC helicopter flight characteristics. An onboard ExpressLRS (ELRS) receiver is integrated via UART1. No external receiver is required, reducing wiring complexity and enabling direct plug-and-play operation
Specifications
| Main MCU | STM32F722RET6 |
| Gyroscope / Inertial Measurement Unit (IMU) | ICM42688P |
| Barometer | SPLC6 |
| Blackbox Flash Memory | 256MB |
| Firmware | RotorFlight |
| Servo Ports | 4: CH1, CH2, CH3, TAIL |
| Supported Receiver Protocol | CRSF, ELRS, S.BUS, FBUS, PPM, MSP, DSMX |
| Supported ESC Protocol | PWM, Oneshot, Multishot, DShot300, DShot600 |
| Motorized Tail | Supported |
| RPM Sensor | Supported |
| UART Ports | 6 |
| Input Voltage Range | 5-16V |
| Serial Port Output Power | 5V / 1.5A (Ensure connected devices do not exceed this current) |
| Built-in ELRS Receiver | Yes (UART1) |
| F701 Unit Size | 46 x 26 x 14.5mm ; 22g |
| Package Size | 9 x 6 x 3.5cm ; 84g |
Configuration Software and Tutorials
Please visit https://rotorflight.org/ for the latest update.

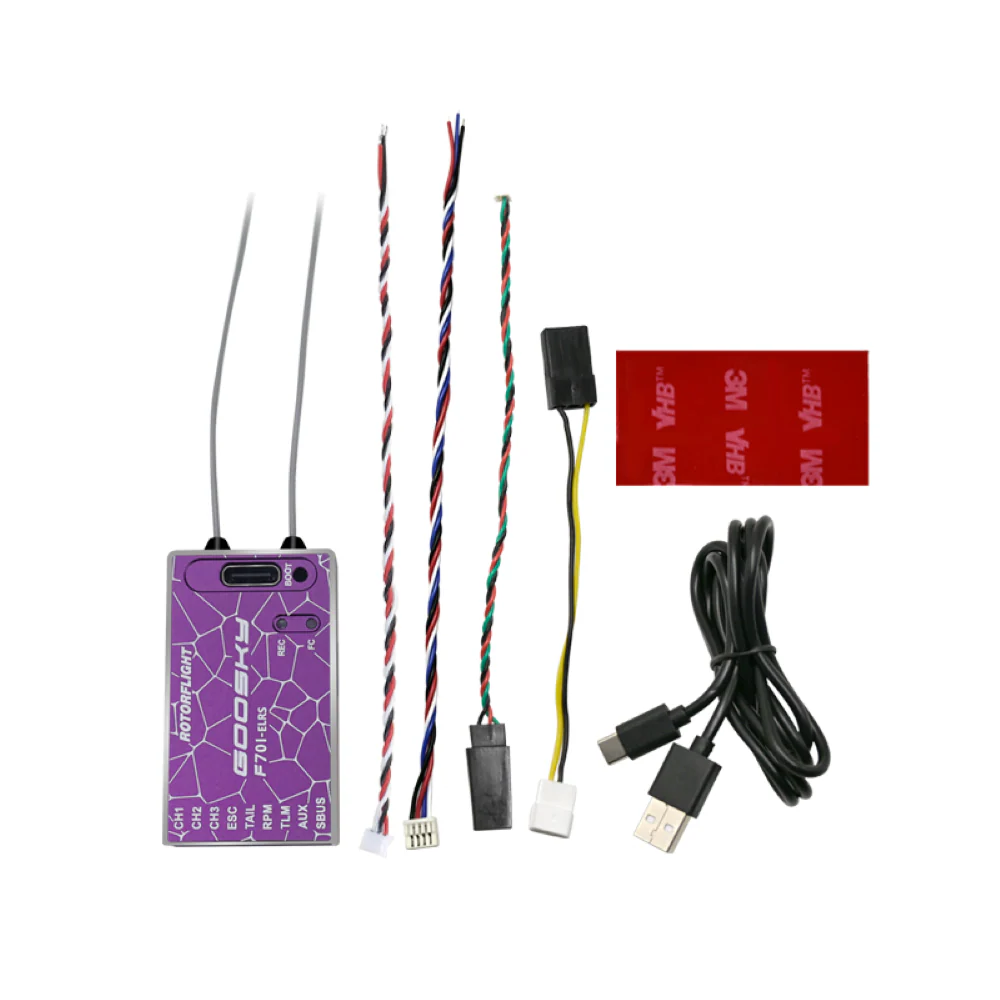

Package includes
- 1 * F701-ELRS Flight Controller Unit
- 1 * USB Type-C 100cm Cable
- 1 * JST-GH1.25-4P 15cm wire
- 1 * JST-ZH1.5-3P (DSMX Remote Receiver) 15cm wire
- 1 * Dupont 2.54-3P male to JST-GH1.25-4P 12cm wire
- 1 * Dupont 2.54-3P female to JST-ZH1.5-3P 6.5cm wire (ESC Telemetry)
- 1 * Double-Sided Tape
