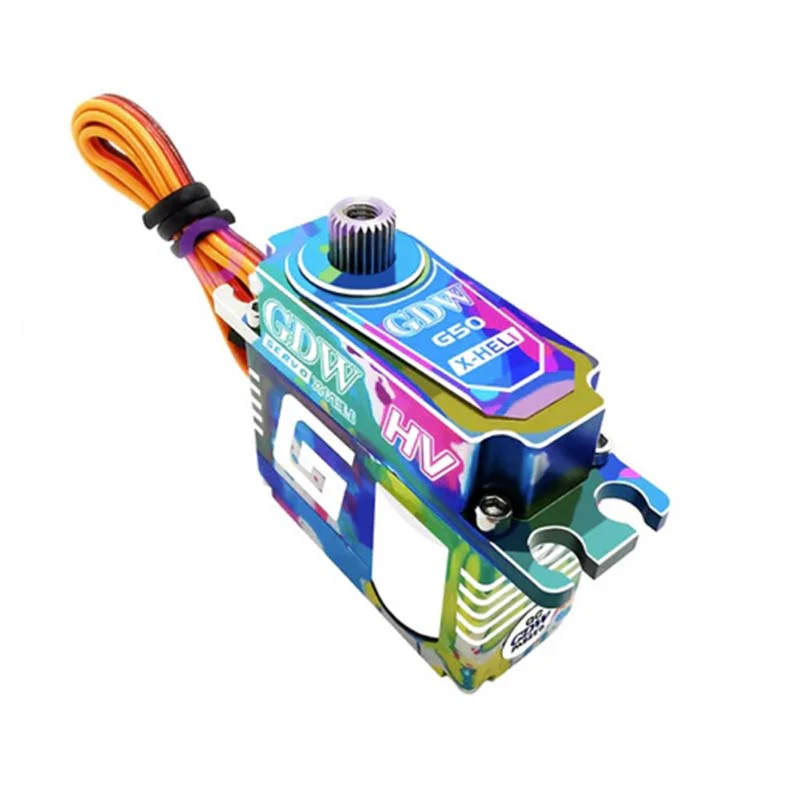

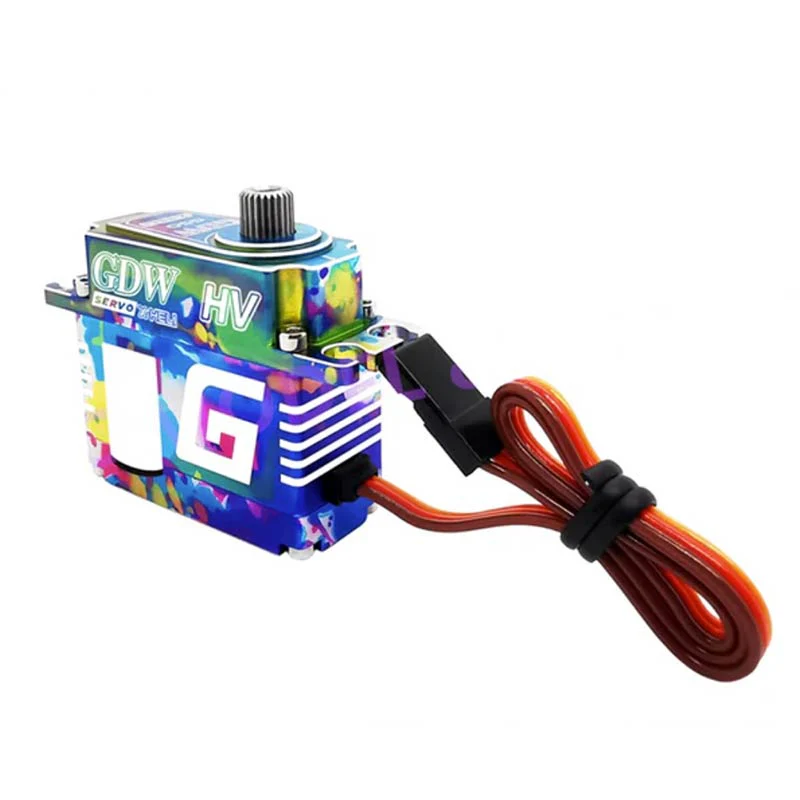

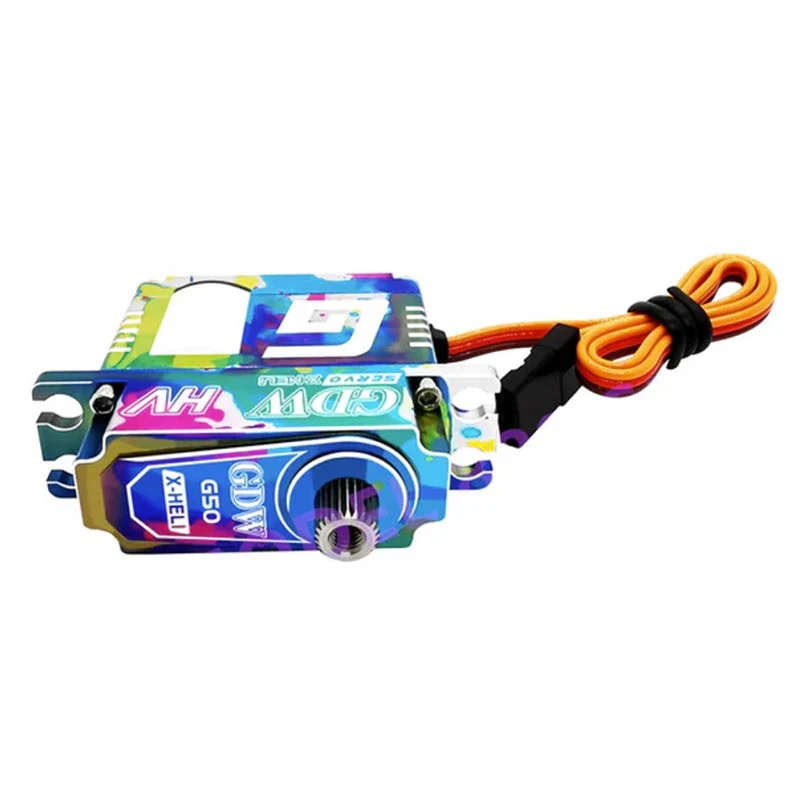

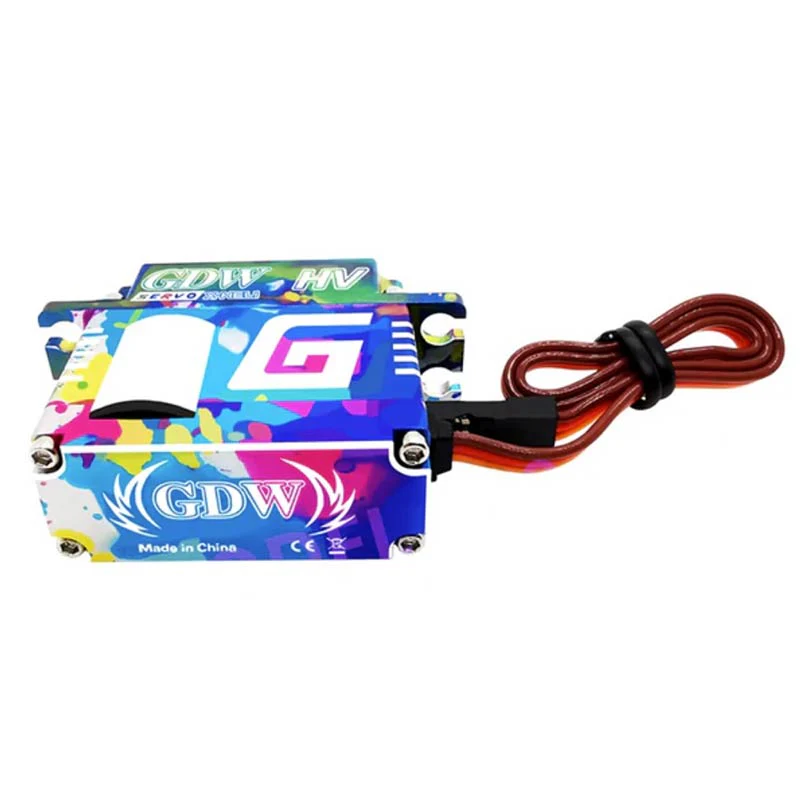

GDW G50 11KG 0.07sec High Torque High Speed Metal HV Digital Brushless Mini Servo

Description:

GDW G50 HV Digital Servo

Mini Size Servo

Operating voltage range: 4.8V - 8.4V
Working frequency: 1520µs / 333Hz

Dimensions: 36mm (48mm) x 15mm x 32mm
Weight: 47g ± 1g

Bench test values:
9.0kg.cm/0.09sec/60°@6.0V
10.0kg.cm/0.08sec/60°@7.4V
11.0kg.cm/0.07sec/60°@8.4V

Dead band: 2µs

Motor type: Brushless motor 17mm x 15mm
Horn gear spline: 25T ⌀ 5.9mm
Wire length: 220mm ± 5mm
Wire diameter: 0.15mm²
Number of wire cores: 30

Application: For SAB505 XL520 ALZRC 500X RC Helicopter, 50E/70E RC Airplane, other RC Models.
