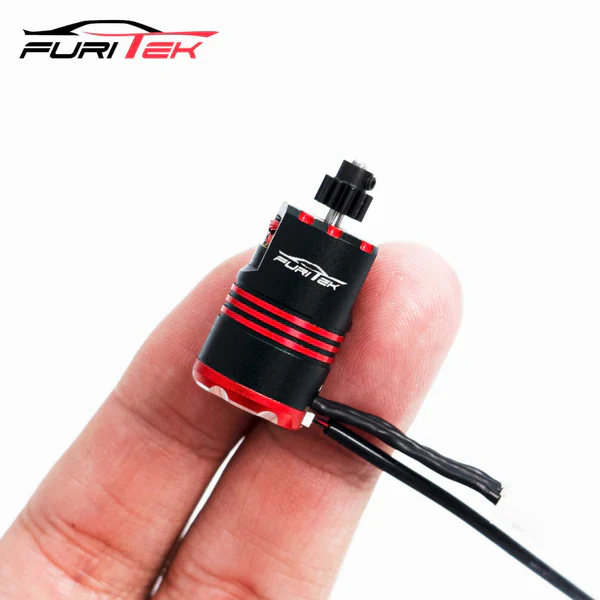

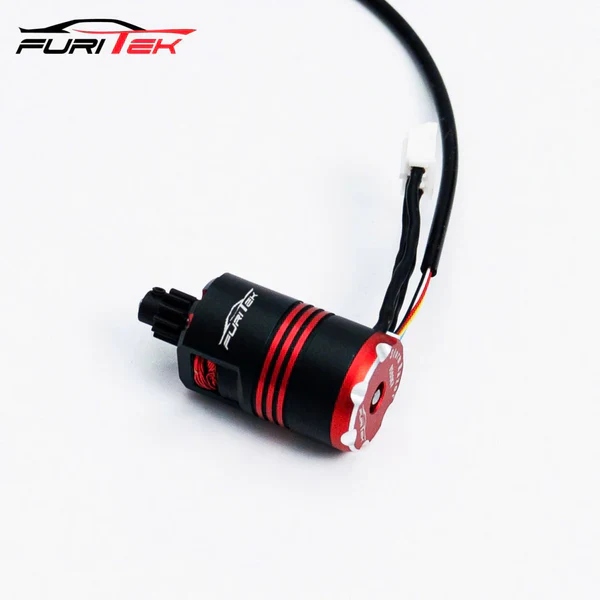

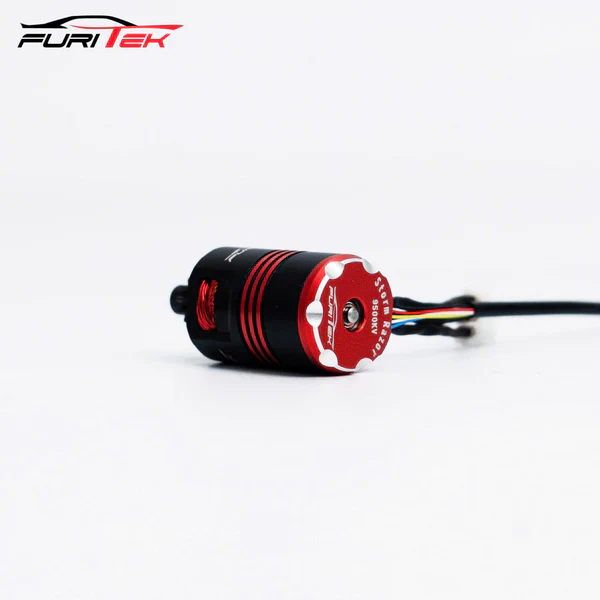

FURITEK STORM RAZOR 1524 9500kv 2mm shaft with 11T Steel pinion Sensored Brushless Motor FOR 1/24 Micro-B
FURITEK STORM RAZOR 1524 9500kv 2mm shaft with 11T Steel pinion Sensored Brushless Motor FOR 1/24 Micro-B
Motor Specifications:
- Motor Type: Sensored
- Motor Kv: 9500
- Battery: 2S
- Resistance: 0.042ohm
- Max Current: 8A
- Slot/Pole: 12 slot/4 pole
- Shaft: 2*10mm
Motor Features:
- Sensored 4-pole hi-torque motor design.
- High purity and higher temperature single copper windings ---lower copper losses, very good heat dissipating--maximizes efficiency.
- Super thin stator laminations---lower eddy losses---maximizes efficiency. Japanese NMB --High RPM ABEC5 bearings.
Precision balanced rotor, smoothness for best reliability and maximum RPM. CNC machined 6061 T6 billet aluminum heatsink can. - Precision engineered for maximum energy conversion.
Pinion included:
- Gear 0.5M-11T-Steel-Black
-
(A good 0.9mm allen key wrench tool is required )
Supports:
- 1/24 Micro-B 2WD Buggy RTR


Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
FURITEK STORM RAZOR 1524 9500kv 2mm shaft with 11T Steel pinion Sensored Brushless Motor FOR 1/24 Micro-B
Motor Specifications:
- Motor Type: Sensored
- Motor Kv: 9500
- Battery: 2S
- Resistance: 0.042ohm
- Max Current: 8A
- Slot/Pole: 12 slot/4 pole
- Shaft: 2*10mm
Motor Features:
- Sensored 4-pole hi-torque motor design.
- High purity and higher temperature single copper windings ---lower copper losses, very good heat dissipating--maximizes efficiency.
- Super thin stator laminations---lower eddy losses---maximizes efficiency. Japanese NMB --High RPM ABEC5 bearings.
Precision balanced rotor, smoothness for best reliability and maximum RPM. CNC machined 6061 T6 billet aluminum heatsink can. - Precision engineered for maximum energy conversion.
Pinion included:
- Gear 0.5M-11T-Steel-Black
-
(A good 0.9mm allen key wrench tool is required )
Supports:
- 1/24 Micro-B 2WD Buggy RTR
