FURITEK KOMODO 2208 UTB18 BRUSHLESS MOTOR
Features:
14 Pole 12 Slot hi-torque motor design.
High purity and higher temperature single copper windings ---lower copper losses, very good heat dissipating--maximizes efficiency
Super thin (0.2mm) stator laminations---lower eddy losses---maximizes efficiency.
Japaneses NMB --High RPM ABEC5 bearings.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
CNC machined 6061 T6 billet aluminum heatsink can.
Precision engineered for maximum energy conversion.
Motor Specifications :
| Motor | KOMODO118 2208-2500 |
| - KV (RPM/Volt) | 2500 kv |
| - No-load Current(@10v) | 1.5A |
| - Watt | 270W |
| - Battery | 2-4S |
| - Resistance | 0.06 ohm |
| - Max Current | 25A |
| - Slot/Pole | 12S14P |

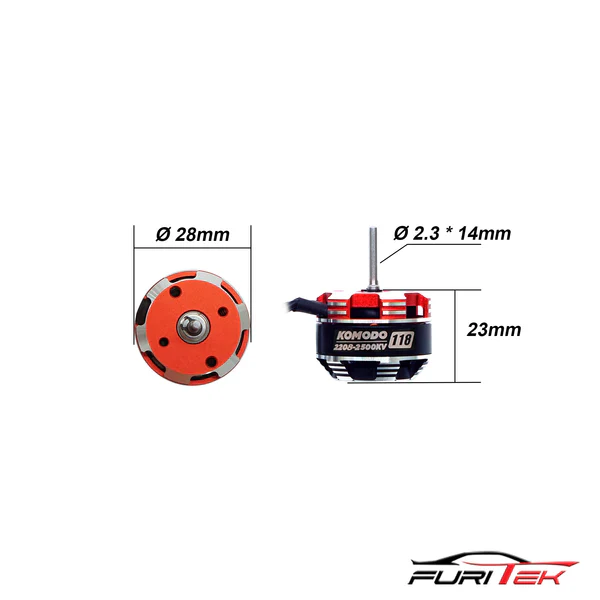

| - Motor Size | Ø 28 * 23mm |
| - Stator Size | 2204 |
| - Shaft/extend Length (mm) | Ø 2.3 * 14mm |
| - Weight oz (gr) | 13.93 oz (39.5 gr) |
Original: $32.49
-65%$32.49
$11.37Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Features:
14 Pole 12 Slot hi-torque motor design.
High purity and higher temperature single copper windings ---lower copper losses, very good heat dissipating--maximizes efficiency
Super thin (0.2mm) stator laminations---lower eddy losses---maximizes efficiency.
Japaneses NMB --High RPM ABEC5 bearings.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
CNC machined 6061 T6 billet aluminum heatsink can.
Precision engineered for maximum energy conversion.
Motor Specifications :
| Motor | KOMODO118 2208-2500 |
| - KV (RPM/Volt) | 2500 kv |
| - No-load Current(@10v) | 1.5A |
| - Watt | 270W |
| - Battery | 2-4S |
| - Resistance | 0.06 ohm |
| - Max Current | 25A |
| - Slot/Pole | 12S14P |
| - Motor Size | Ø 28 * 23mm |
| - Stator Size | 2204 |
| - Shaft/extend Length (mm) | Ø 2.3 * 14mm |
| - Weight oz (gr) | 13.93 oz (39.5 gr) |
