FURITEK GRASSHOPPER Brushless Sensored ESC/Motor Power System with Wireless module FOR LOSI 1/24 MICRO-B/MICRO-T
FURITEK GRASSHOPPER Brushless Sensored ESC/Motor Power System FOR LOSI 1/24 MICRO-B/MICRO-T

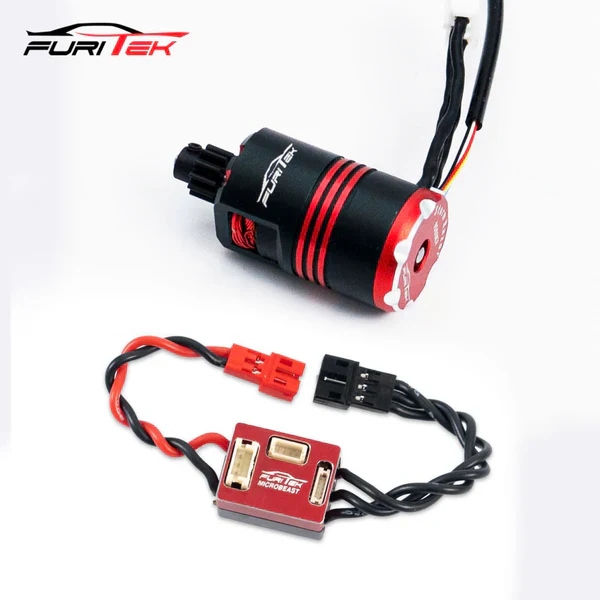

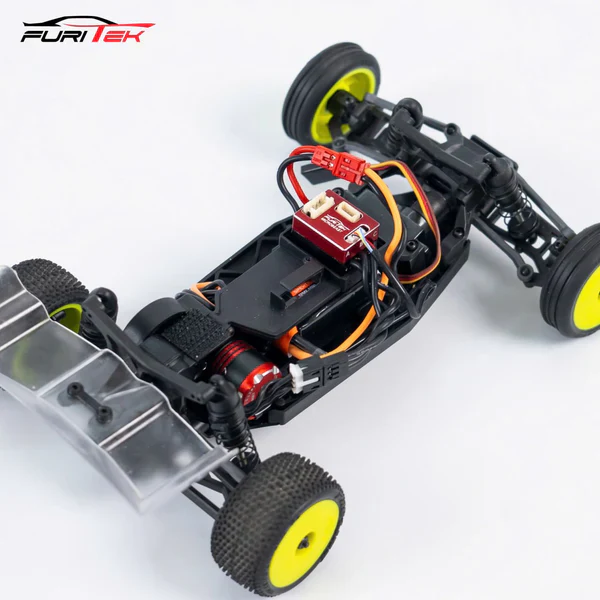

The Furitek Grasshopper Brushless Sensored ESC & Motor Combo is the ultimate plug-and-play upgrade for your Losi 1/24 Micro-B/Micro-T. This combo includes the Furitek Microbeast Brushless Sensored ESC and the Furitek Brushless Sensored Storm Razor Motor, delivering powerful yet smooth performance. Upgrade seamlessly from a brushed to a brushless system for precise throttle control, improved torque, and smoother acceleration. Everything is ready to go right out of the box—simply plug it in, and experience a significant boost in power and responsiveness for your Micro-B without any hassle!
FURITEK MICROBEAST ESC WITH WIRELESS MODULE:
Sensored/Sensorless Operation:
Supports both sensored and sensorless modes, providing flexibility and optimal performance for different driving conditions.
Compact and Lightweight:
Weighing only 7.6 grams and measuring 18x14x9.5 (mm), the MICROBEAST ESC is designed to be small and light, making it easy to install without adding significant weight to your RC car.
Battery Support:
Compatible with 2S LiPo, plug&play with stock battery
Support Wireless Setup Module
Allows for convenient wireless programming and real-time adjustments via the Furicar App, available on both Android and iOS.
Multiple BEC Output Levels:
Offers selectable BEC output voltages of 5.5V, 7.4V at 5A, making it suitable for various types of servos.
Integrated Power Switch:
For ease of use and convenience, the MICROBEAST ESC includes a built-in power switch.
High Current Handling:
Capable of handling a constant current of 25A and a burst current of 50A
Specifications:
- Battery Support: 2S LiPo batteries
- BEC Output: 5.5V/7.4V, 5A
- Constant Current: 25A
- Burst Current: 50A
- Built-in Power Switch: Integrated for convenience
- Dimensions: 0.71 x 0.55 x 0.37 (inch), 18.1 x 14 x 9.5 (mm)
- Weight: 7.6 grams (0.27oz)
Features:
- Support Sensored/Sensorless 25A/50A ESC
-
Live tunning on Furicar app
-
Super ridiculously smooth throttle control
-
Mini size and light weight
-
Super easy programming via App on both Android and iOS
-
Real-time telemetry up to 10Hz
-
FREE lifetime firmware updates
Advantages:
- Plug&Play: Just buy it, plug it in, and use it—no soldering skills required.
- Very Compact and Lightweight: The MICROBEAST ESC’s small size and light weight make it easy to install and ideal for maintaining the agility of your RC car.
- High Current Capability: Handles high currents without the need for a cooling fan, ensuring reliable performance under demanding conditions.
- Versatile Operation: Compatible with both sensored and sensorless motors, offering flexibility for different RC setups.
- Multiple BEC Voltage Options: Provides selectable BEC output levels to match various servo requirements, enhancing compatibility and performance.
FURITEK STORM RAZOR SENSORED MOTOR:
Motor Specifications:
- Motor Type: Sensored
- Motor Kv: 9500
- Battery: 2S
- Resistance: 0.042ohm
- Max Current: 8A
- Slot/Pole: 12 slot/4 pole
- Shaft: 2*10mm
Motor Features:
- Sensored 4-pole hi-torque motor design.
- High purity and higher temperature single copper windings ---lower copper losses, very good heat dissipating--maximizes efficiency.
- Super thin stator laminations---lower eddy losses---maximizes efficiency. Japanese NMB --High RPM ABEC5 bearings.
Precision balanced rotor, smoothness for best reliability and maximum RPM. CNC machined 6061 T6 billet aluminum heatsink can. - Precision engineered for maximum energy conversion.
Pinion included:
- Gear 0.5M-11T-Steel-Black

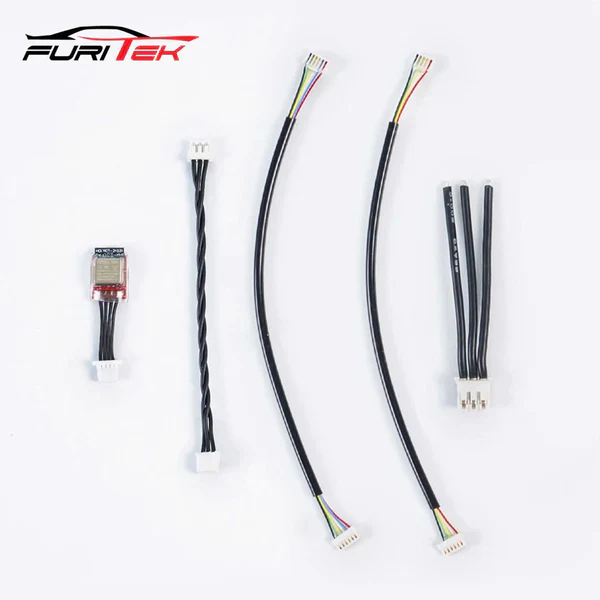

Package Includes:
- 1x Furitek 25/50A MICROBEAST Sensored/Sensorless ESC
- 1x Furitek wireless module
- 1x Furitek Storm Razor motor
- 1x 11T Steel pinion
- 1x Tool set for 11T pinion
- 1x User Manual
- 1x Sensored Cable for Furitek Storm Razor motor
Extra requirement:
- Require a new 2-channel TX/RX system. It is not compatible with stock TX/RX
- A good 0.9mm allen key wrench tool is required
