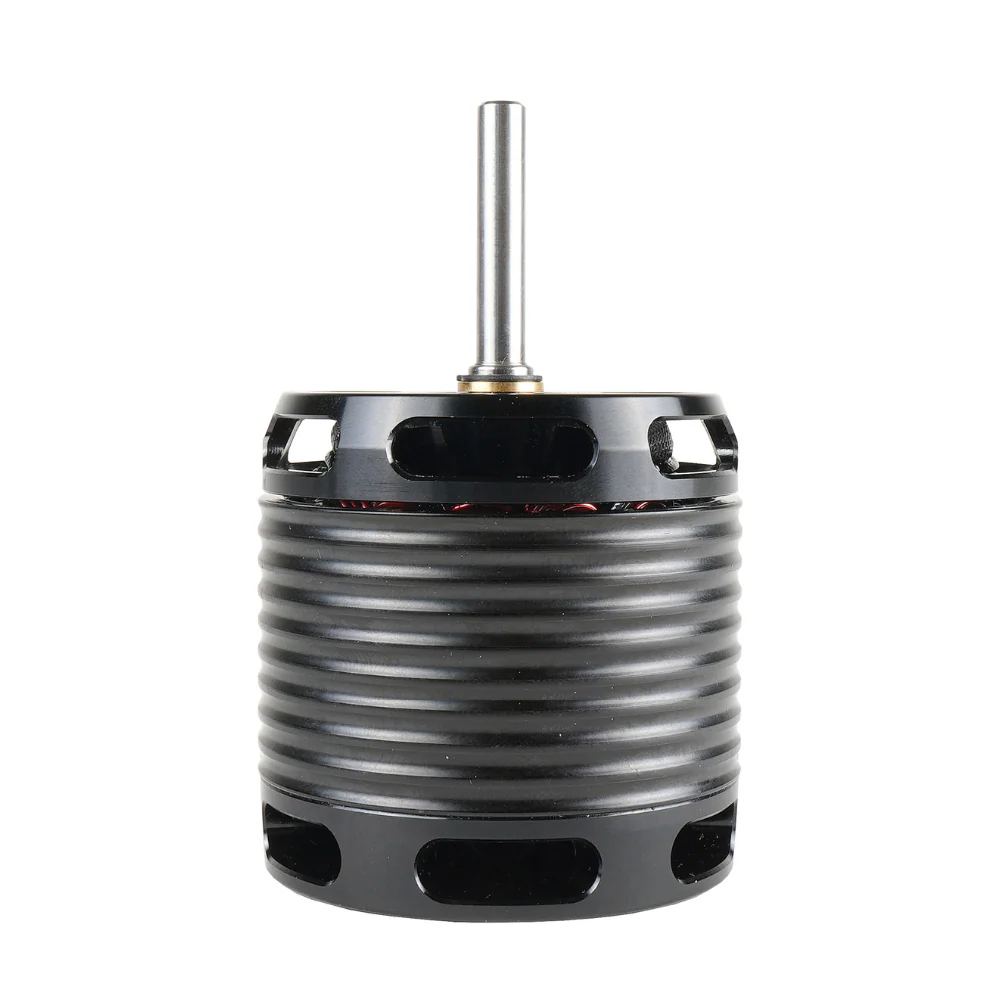

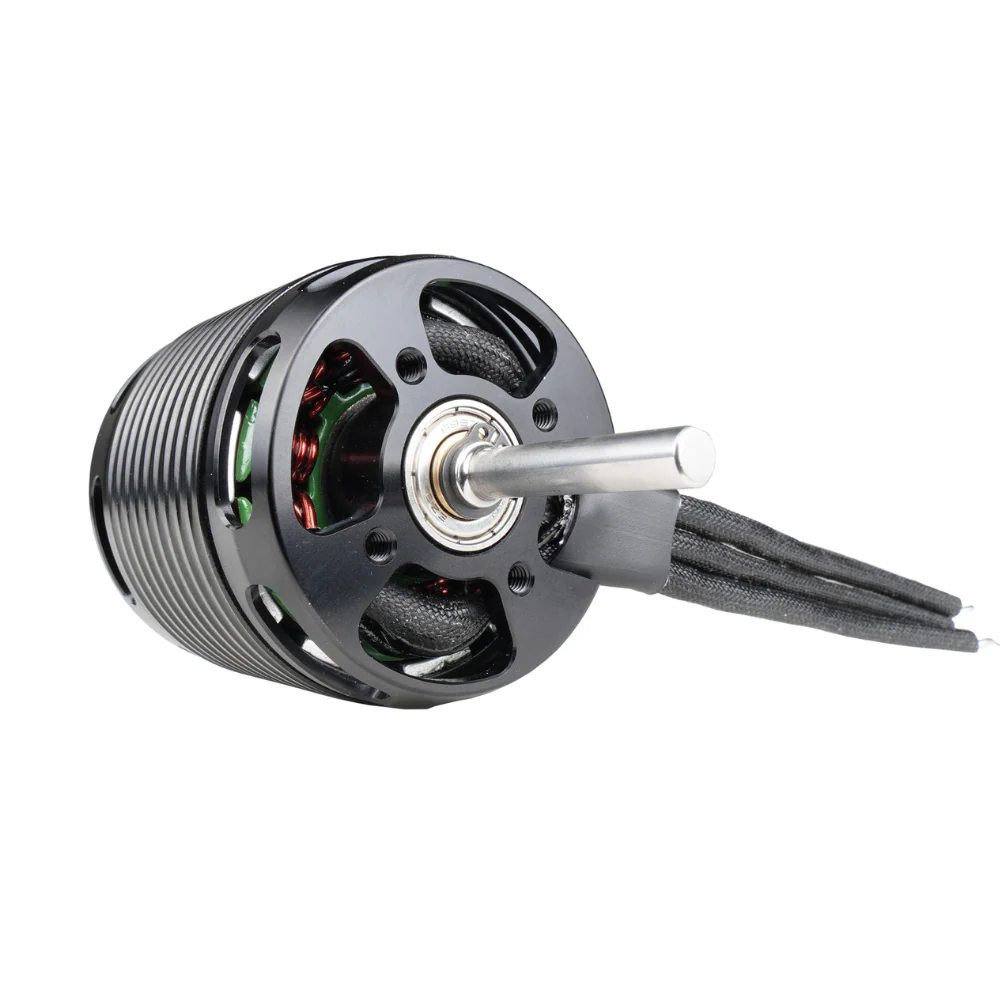

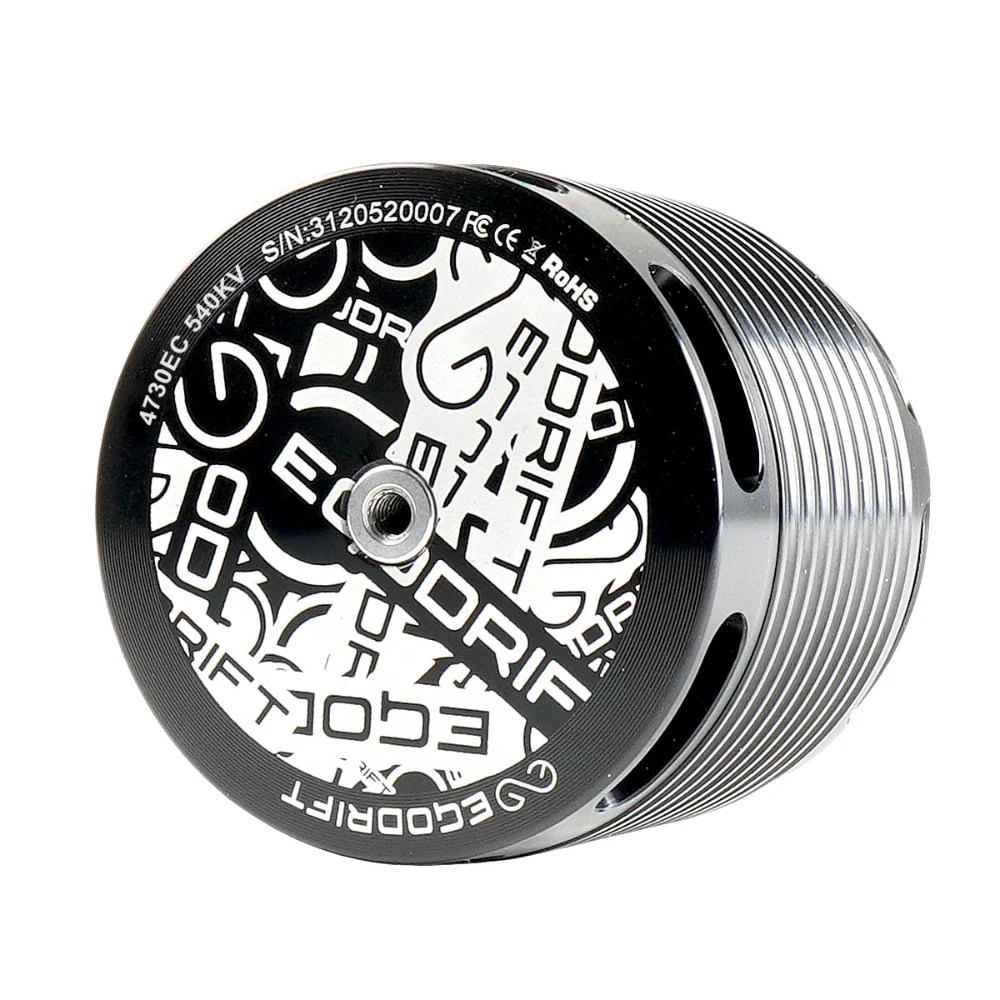

Egodrift Tengu 4730EC Eclipse / 540kV Motor (6x55mm) shaft
EGODRIFT 4730EC Eclipse
The 4730EC model of the Eclipse Series sets a new standard for power and efficiency. With an improved internal 8mm shaft diameter and enlarged bearings, it’s designed to handle immense torque effortlessly. The 540KV version weighs only 554 grams, a mere 34 grams more than its 4530HT counterpart, despite its 2mm wider stator and increased shaft and bearings diameter. Perfect for pilots who demand top-tier performance,
the 4730EC ensures cooler operation, enhanced efficiency for longer flight times, and a smooth, linear throttle response.
Key Features:
• World’s first 0.1mm stator laminations for unmatched efficiency
• Robust 8mm internal shaft and larger bearings
• Superior torque and power with cooler running temperatures
• Ideal for high-demand flight conditions
- Manufacturer: EGODRIFT
- Stator size: 4730
- Motor Kv: 540KV
- Weight: approx. 554g
- External Shaft Dimensions: 6.0mm
- External shaft length: 55mm
- Mounting hole pattern: 4xM4(30)
- Max Lipo Cell: 12S
- Stator Diameter: 47mm
- Stator Height: 30mm
- Stator lamination: 0.1mm
- Motor configuration: 12N10P
- Recommended ESC's Amp: 180-200A
- Recommended Timing: 9-15°
- 4730EC Eclipse Motor
- 3 Pairs Gold Plated Amass Bullet Connectors
- M4 Mounting screws (generic, please ensure fit to your model)
- 2x EGODRIFT Decal Sheets
- Individual Certificate of Authenticity
World’s First 0.1mm Lamination Heli Motors – Introducing the EGODRIFT 47EC Eclipse Series
Meet the all-new 4730EC and 4726EC Eclipse Series – the first and only heli motors in the world to feature revolutionary 0.1mm stator laminations, delivering unprecedented smoothness, efficiency, and responsiveness. The reduced eddy currents and cleaner commutation result in a near- instantaneous throttle response and yet improved efficiency and performance. Experience a new generation of power, torque, and control with the 47EC Eclipse Series.
Watch the introduction video to learn everything that makes these motors special:
