Egodrift Tengu 4726EC Eclipse / 540kV Motor (6x55mm) shaft

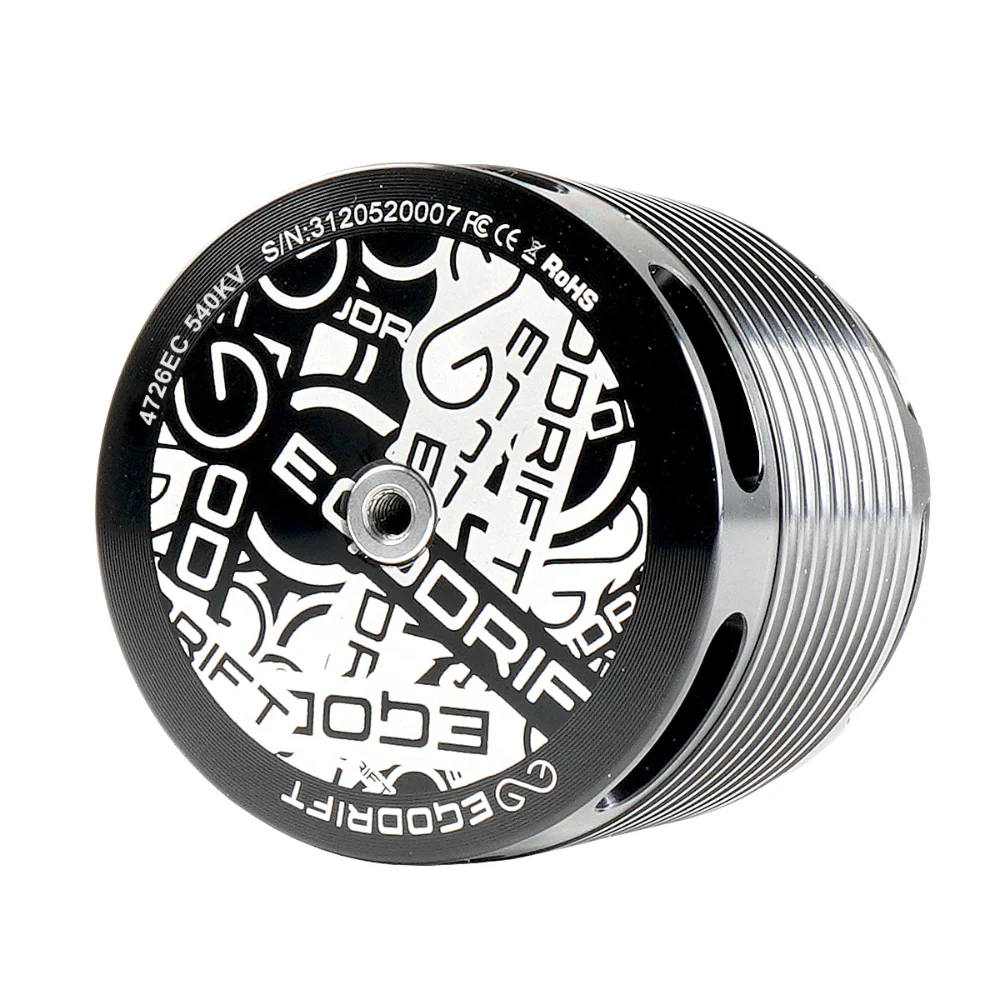

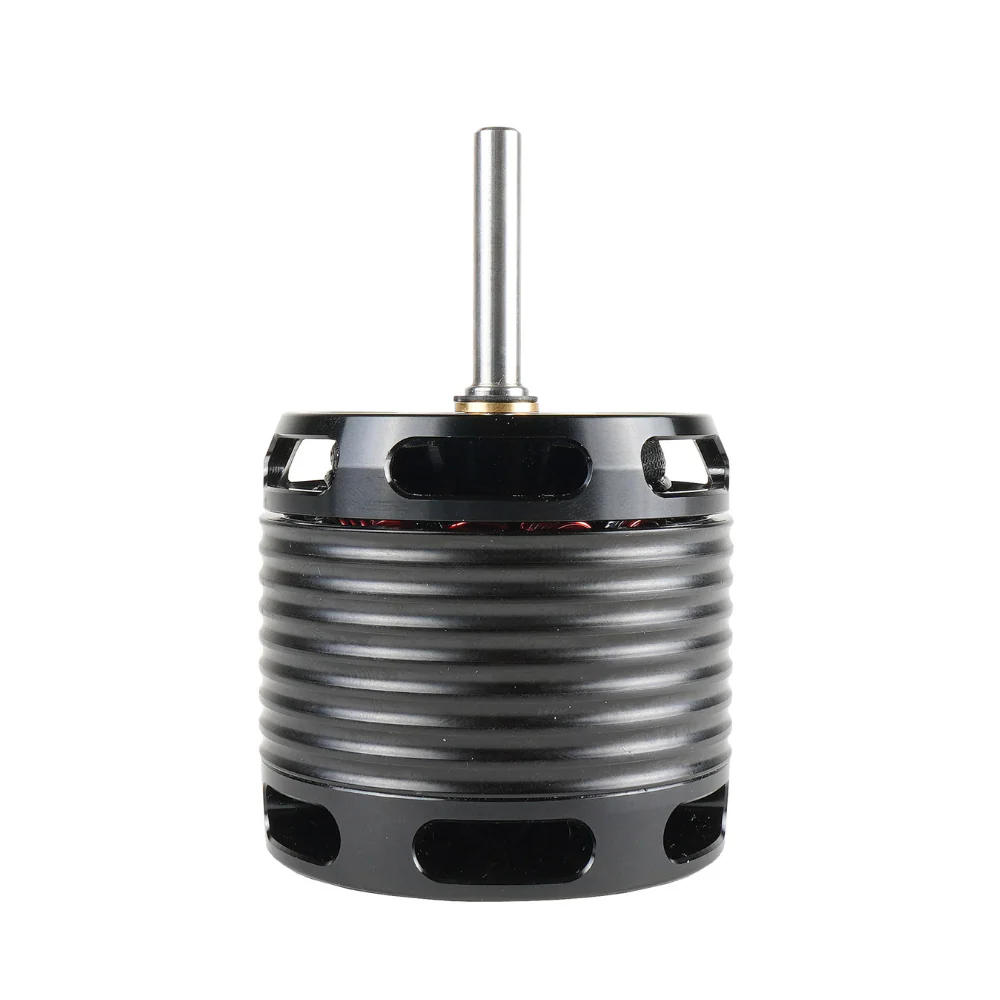

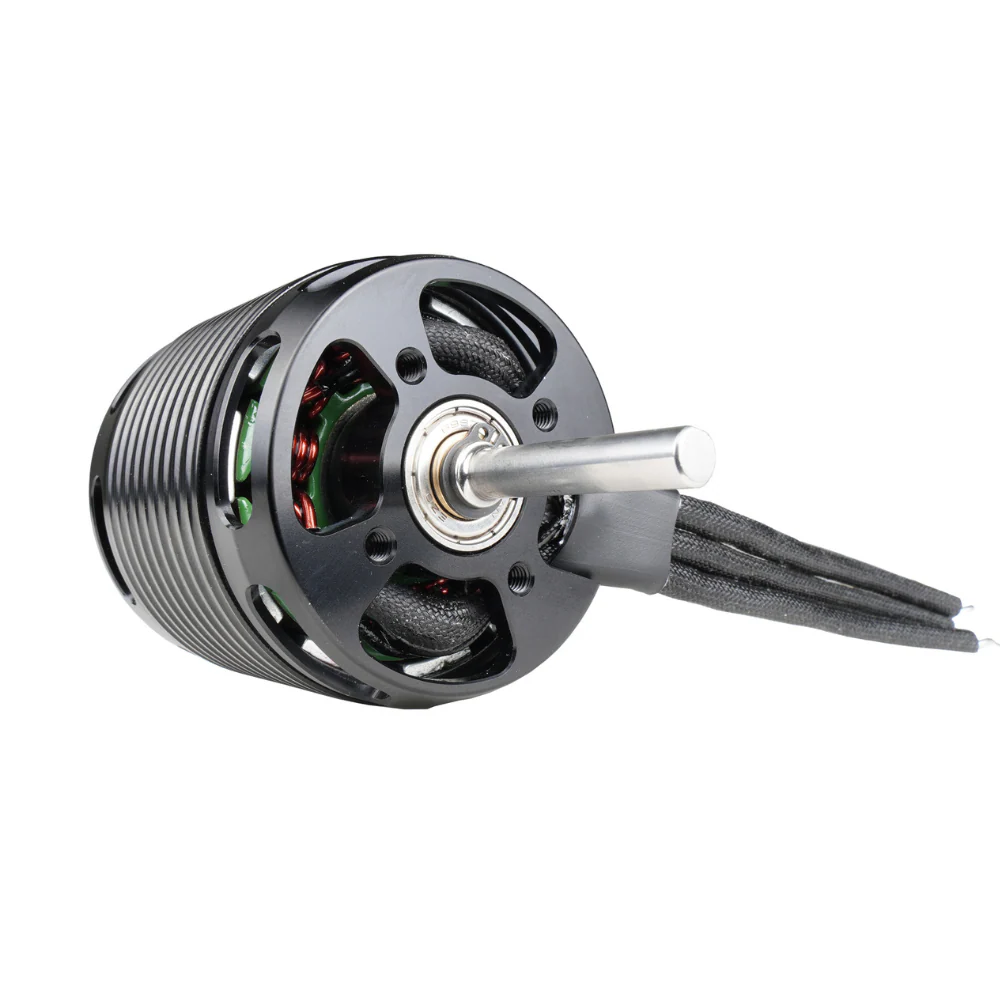

EGODRIFT 4726EC Eclipse
Compact yet powerful, the 4726EC model brings the 47EC Eclipse Series’ revolutionary technology into a lighter package. Weighing 501 grams for the 540KV version, it offers exceptional torque and efficiency without
compromising on performance. The 4726EC’s advanced design ensures a cleaner throttle response and cooler operation, making it the perfect choice for pilots seeking reliability and power in a streamlined form.

Key Features:
• World’s first 0.1mm stator laminations for superior performance
• Durable 8mm internal shaft and larger bearings
• High torque and power output with further reduced operating temperature
• Engineered for consistent, high-performance flight

• Manufacturer: EGODRIFT
• Stator size: 4726
• Motor Kv: 540KV
• Weight: approx. 501g
• External Shaft Dimensions: 6.0mm
• External shaft length: 55mm
• Mounting hole pattern: 4xM4(30)
• Max Lipo Cell: 12S
• Stator Diameter: 47mm
• Stator Height: 26mm
• Stator lamination: 0.1mm
• Motor configuration: 12N10P
• Recommended ESC's Amp: 180-200A
• Recommended Timing: 9-15°

World’s First 0.1mm Lamination Heli Motors – Introducing the EGODRIFT 47EC Eclipse Series
Meet the all-new 4730EC and 4726EC Eclipse Series – the first and only heli motors in the world to feature revolutionary 0.1mm stator laminations, delivering unprecedented smoothness, efficiency, and responsiveness. The reduced eddy currents and cleaner commutation result in a near instantaneous throttle response and yet improved efficiency and performance. Experience a new generation of power, torque, and control with the 47EC Eclipse Series.
Watch the introduction video to learn everything that makes these motors special:
