Align 105T M1 Helical Autorotation Tail Drive Gear Set For T-REX 700X/760X/800E

Name: Align 105T M1 Helical Autorotation Tail Drive Gear Set For T-REX 700X/760X/800E
Brand: HeliDirect
SKU: align-105t-m1-helical-autorotation-tail-drive-gear-set-for-t-rex-700x-760x-800e
Availability: InStock

Package:

T-REX 700 Tail Drive Gear Ratio With Main Rotor Speed Table:

Main Blades	Tail Blade	RPM approx.	Tail Drive Gear	Front Drive Gear	Drive Gear Ratio
700	106	2150 ~ 2200 RPM	102T	23T	8.46/1/4.43
700	106	2000 ~ 2150 RPM	104T	22T	8.46/1/4.73
700	106	< 1900 RPM	105T	20T	8.46/1/5.25
For your safety, please pay attention to the above 2200 RPM, incorrect excess 2200 RPM may result in damage to the helicopter or injury the porperty of others.

Instruction:

Specification:

Use for T-REX 700X/760X/800E.
Brand new high drive gear ratio is designed especially for F3C & slow 3D flight with superior tail lock and precise flight performance. (Suitable for head speed at 1900RPM)
To make sure to get the best effect, it must be used with whole set.
Gear Ratio 1:5.25

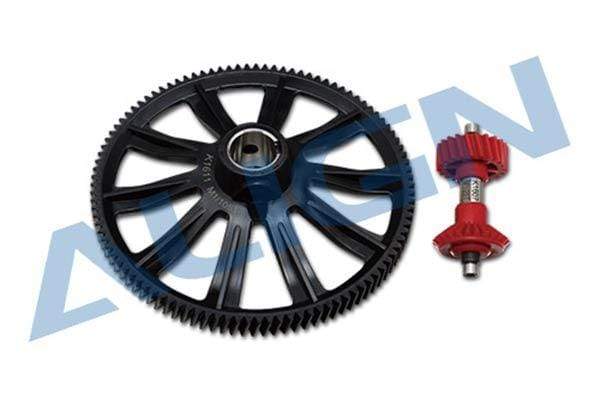

105T M1 Autorotation tail drive gear set x 1
20T M1 Front drive gear assembly set x 1

$28.99
